LSIS XBL-C21A User Manual

Chapter 10 Example Program
10-7

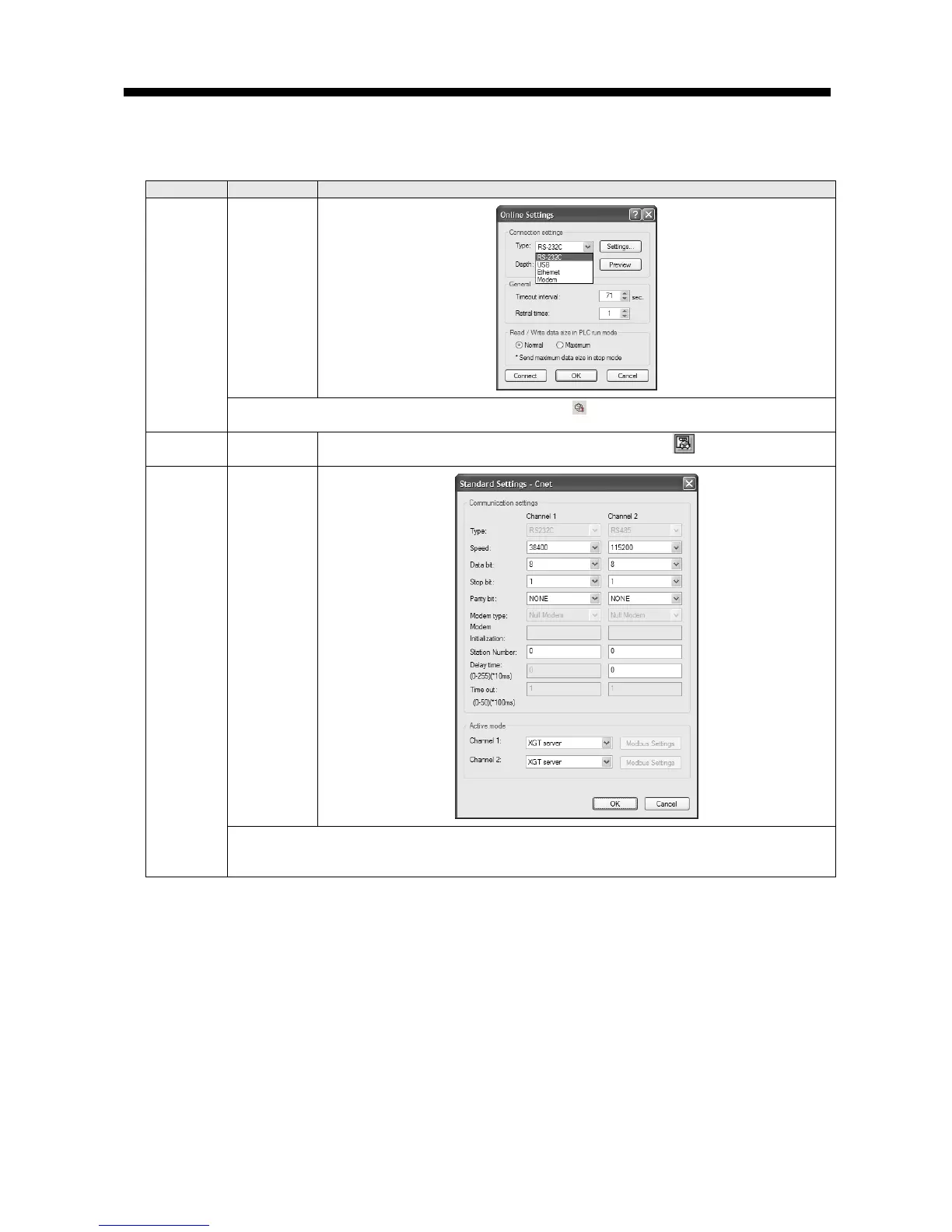

10.2.1 Settings of XGT server
Setting method to operate built-in RS-232C communication channel of XBC-DN32H as server is as follows.
Sequence
Procedure
Setting method
1
Connection
settings
1. Select [Online]-[Connection settings] and click ( ).
2. After setting the connection option according to user, click the ‘connection’.
2
Reading IO
information
Select [Online]-[Read IO Information] and click icon ( ).
IO information of currently mounted is shown on the project window.
3
Standard
settings
1. Set standard settings at built-in communication channel to be same with [Table 10.2.2]’s
standard settings.
2. Since active mode acts as dedicated communication server, set as XGT server.
