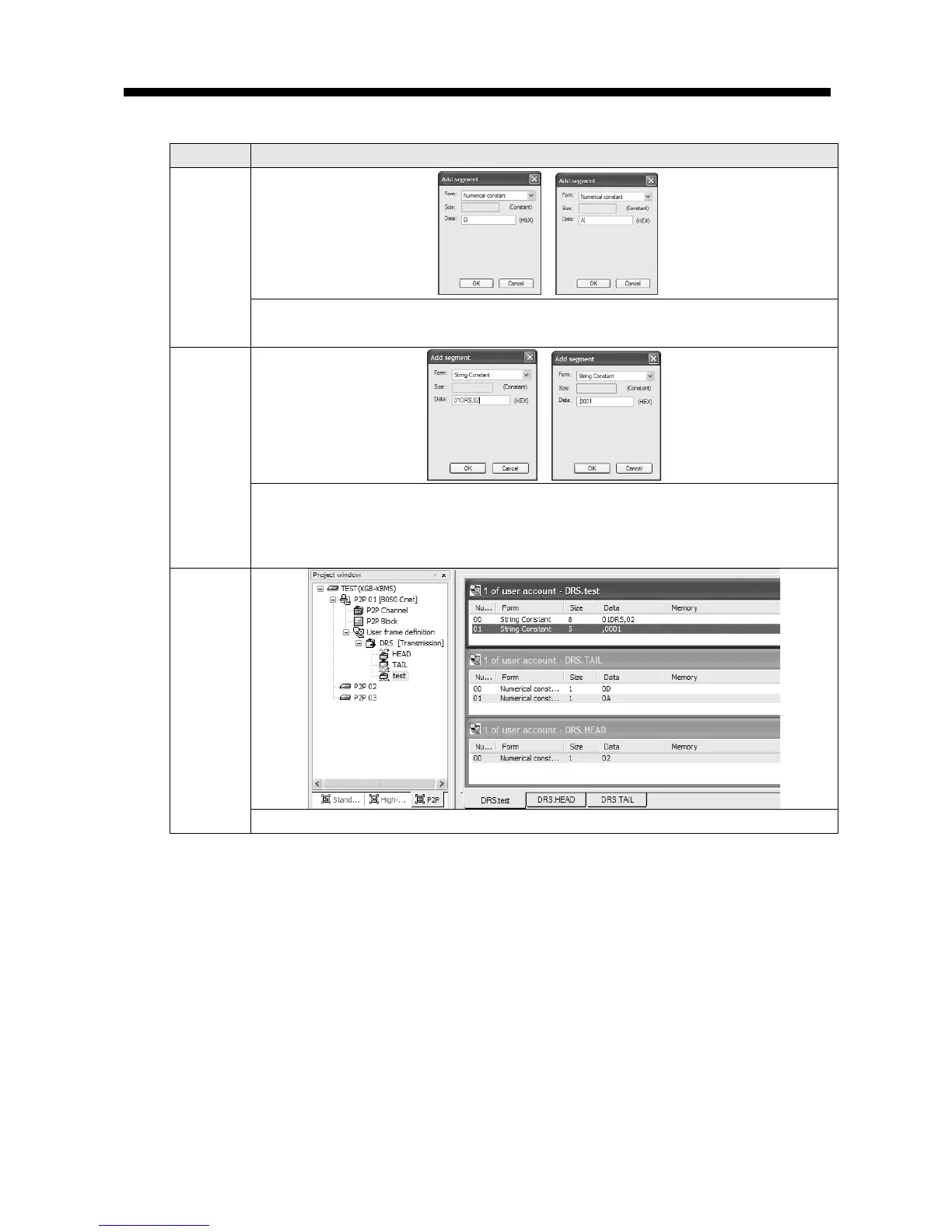

LSIS XBL-C21A User Manual

Chapter 10 Example Program
10-23
Sequence Setting method
5
1. Select Numerical constant which indicates Hex as ASCII code as Form. Input Hex
value D, A which indicates CR and LF.
6
1. Double-click DRS.test tap and edit segment like the following.
2. Write frame requesting reading data of continuous 2 areas starting first of D register of
station no.1.
3. When double-clicking editor screen and writing frame through segment edition, size of
one segment is less than 10.
7
1. Result writing entire frame of data reading request frame.
