MXD70 pH / Redox
Setup and Operating Guide
Installation

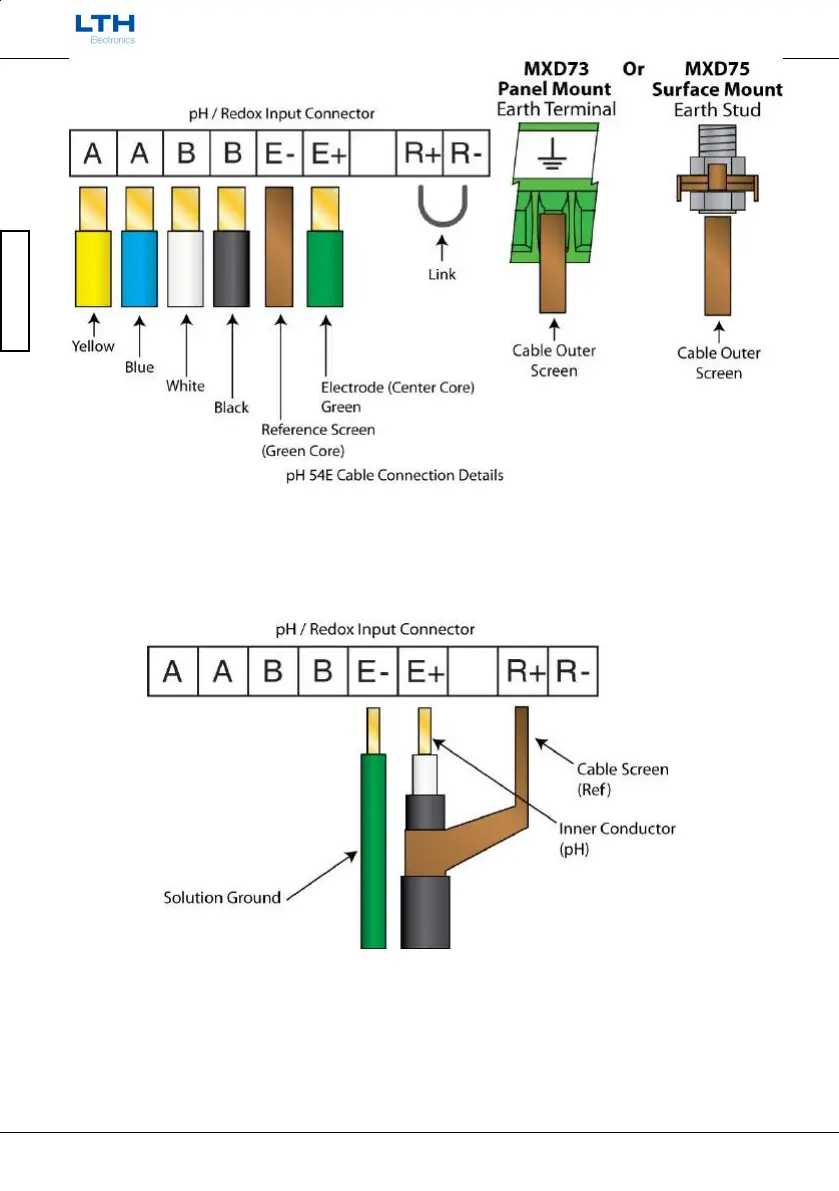

pH / Redox 54E Cable Connection Details
The pH / Redox input card of the MXD70 Series also provides a differential input method of wiring the
pH electrode. This provides better electrical noise immunity and allows the sensor to operate in
solutions where flowing electrical currents may cause measurement problems.
pH / Redox LN10 Coax Cable Connection Details with Separate “Solution Ground” Connection
