LTH Electronics MXD73 - Pipe Mounting

Installation
- 20 -
MXD75 Installation Guide
Installation
Pipe Mounting

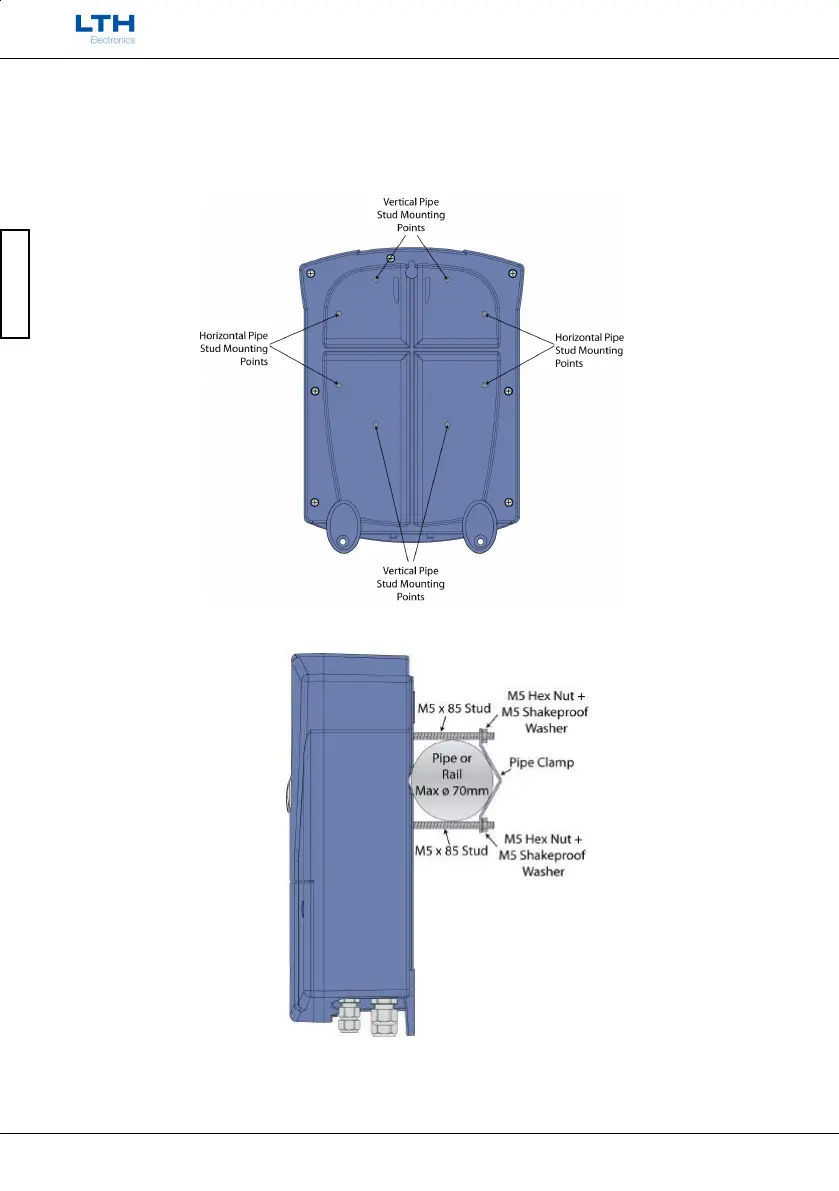

The handrail & pipe-mounting kit is designed for fixing to a vertical or horizontal handrail
or pipe, of 25 – 70 mm outside diameter. (Optional – LTH Part No. 7599).
The instrument is then clamped using the mounting kit as follows.
Note: Care should be taken not to over tighten mounting, as damage may result to
enclosure.
