6

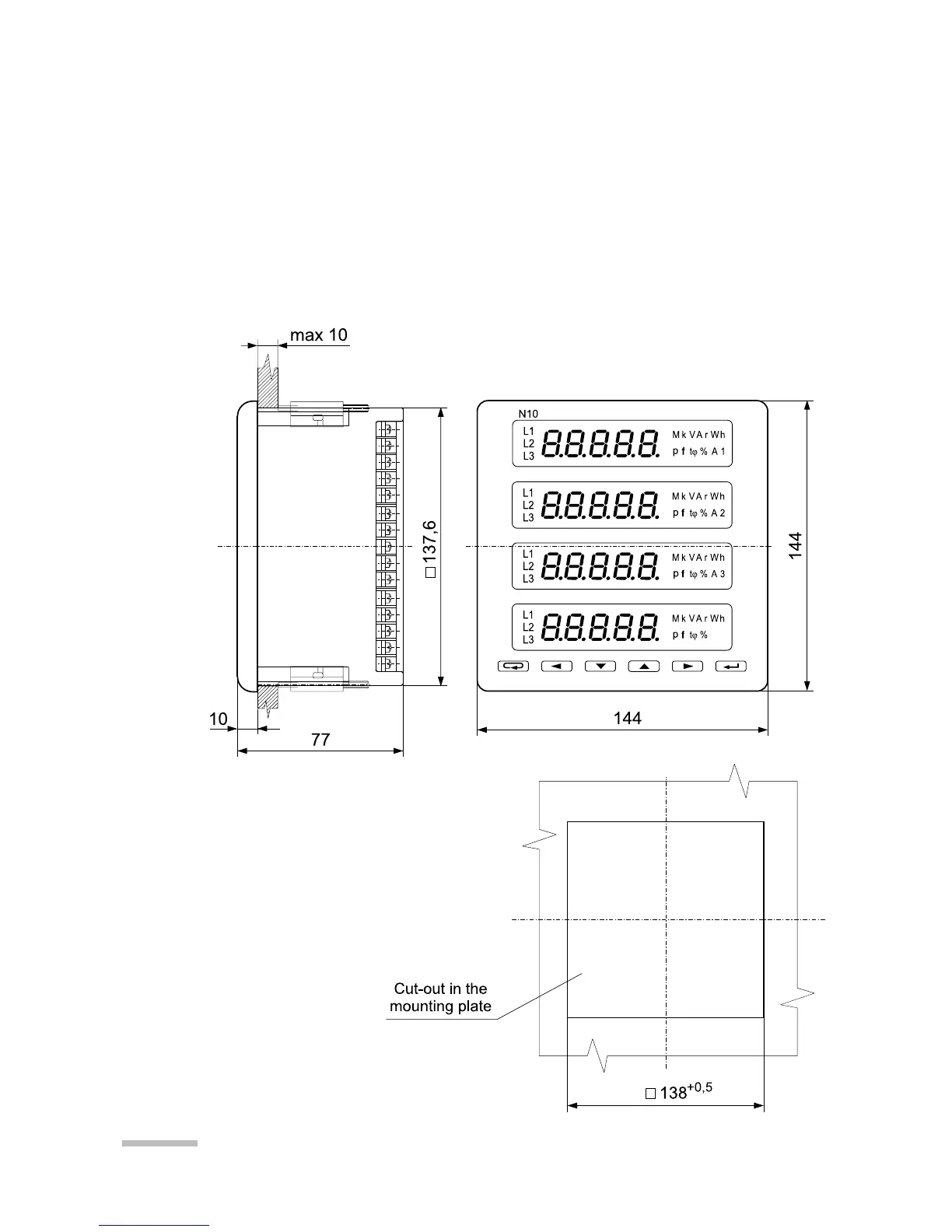

Fig.1.
Overall dimensions and fitting
way of the N10 meter.
3. INSTALLATION
3.1. Fitting way
The meter is adapted to be mounted by means of holders accor
ding fig.1.
The meter housing is made of a sell-extinguishing plastics.
Housing dimensions are 144 x 144 x 77mm. At the outside of the
meter there are screwed terminal strips which enable the connection
up to 2.5 mm
2
external leads.
