4. PROGRAMMING
4.1. Faceplate description
The N10 meter has 6 keys, four 5-digits display sections and il-
luminated symbols and parameter units. Values of measured
parameters are shown on active pages selected by successive
pressures of the key.
A page consists of 4 optional quantities chosen from the table 5
and displayed simultaneously on the meter.
The page definition is described in the configuration mode P.

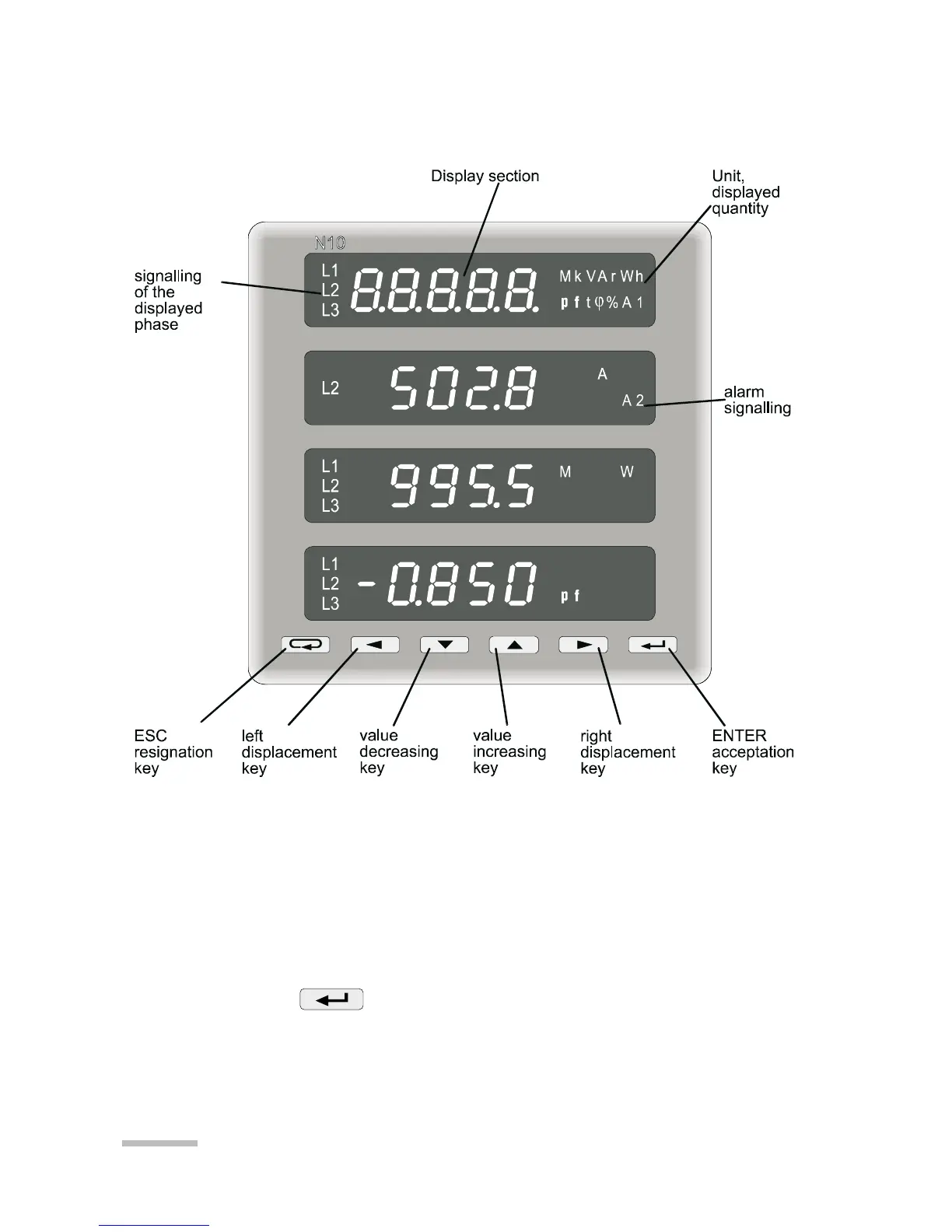

Fig. 5. View of the N10 meter faceplate
