14

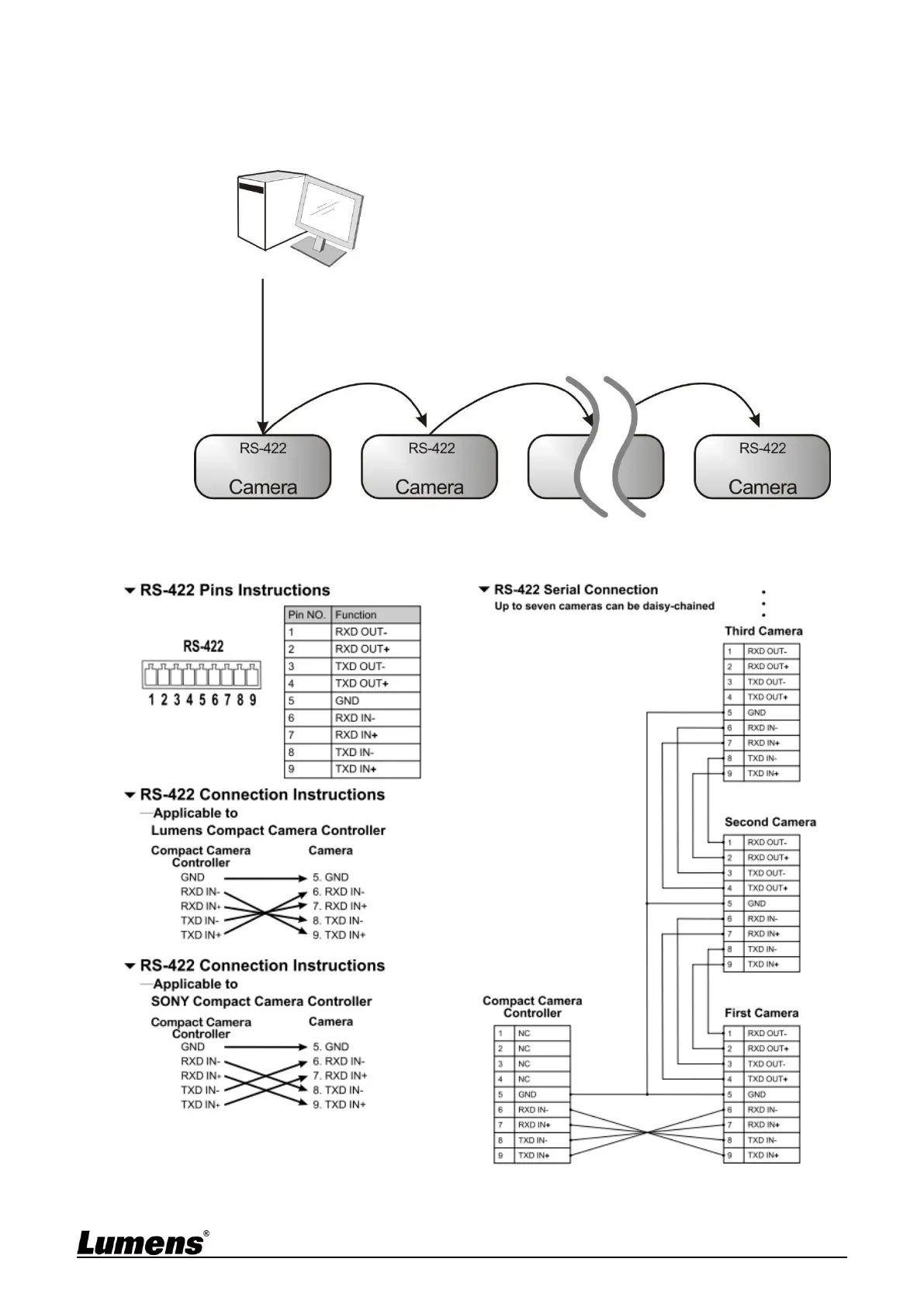

3.4.2 RS-422 Connection
With RS-422, at most 7 Lumens cameras can be connected.
<Note> When RS-422 connection is being used, do not use RS-232 connection.
RS-422 pins definition instructions
