Lumens VC-A71SN User Manual

13
3.3.2.5 How to remove
1. Remove the connecting wires from the camera
2. Uninstall the camera together with the ceiling, loosen the three screws that fix the metal
plates A and B and push to the left to remove the machine
3. Then remove the screws on the hanger and the machine
3.4 Connecting devices

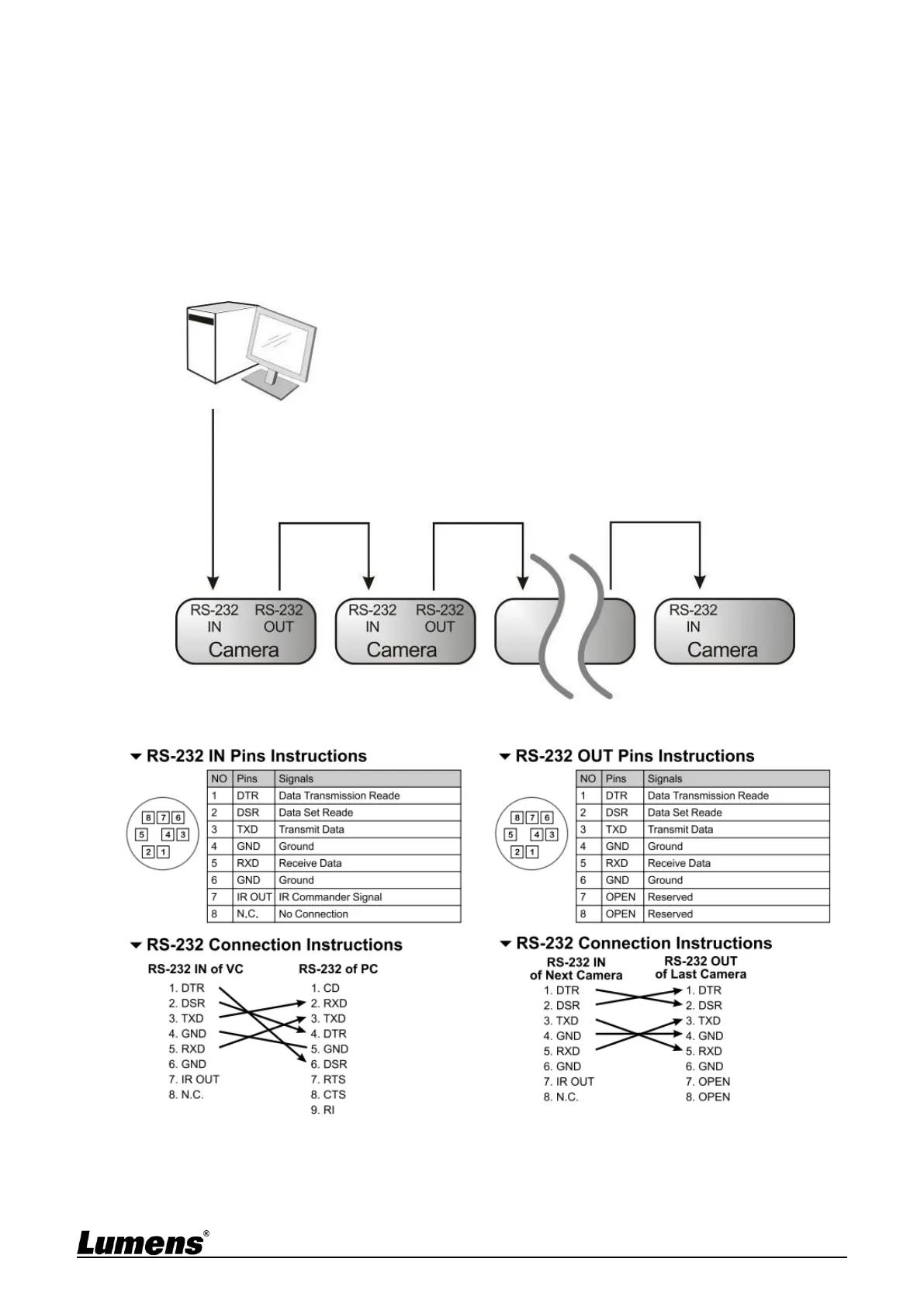

3.4.1 RS-232 Connection
With RS-232 in/ out, at most 7 Lumens cameras can be connected.
 RS-232 pins definition instructions

Lumens VC-A71SN Specifications

General

Brand	Lumens
Model	VC-A71SN
Category	Security Camera
Language	English
