Lumens VC-A71SN User Manual

7
Chapter 3 Instruction for installation

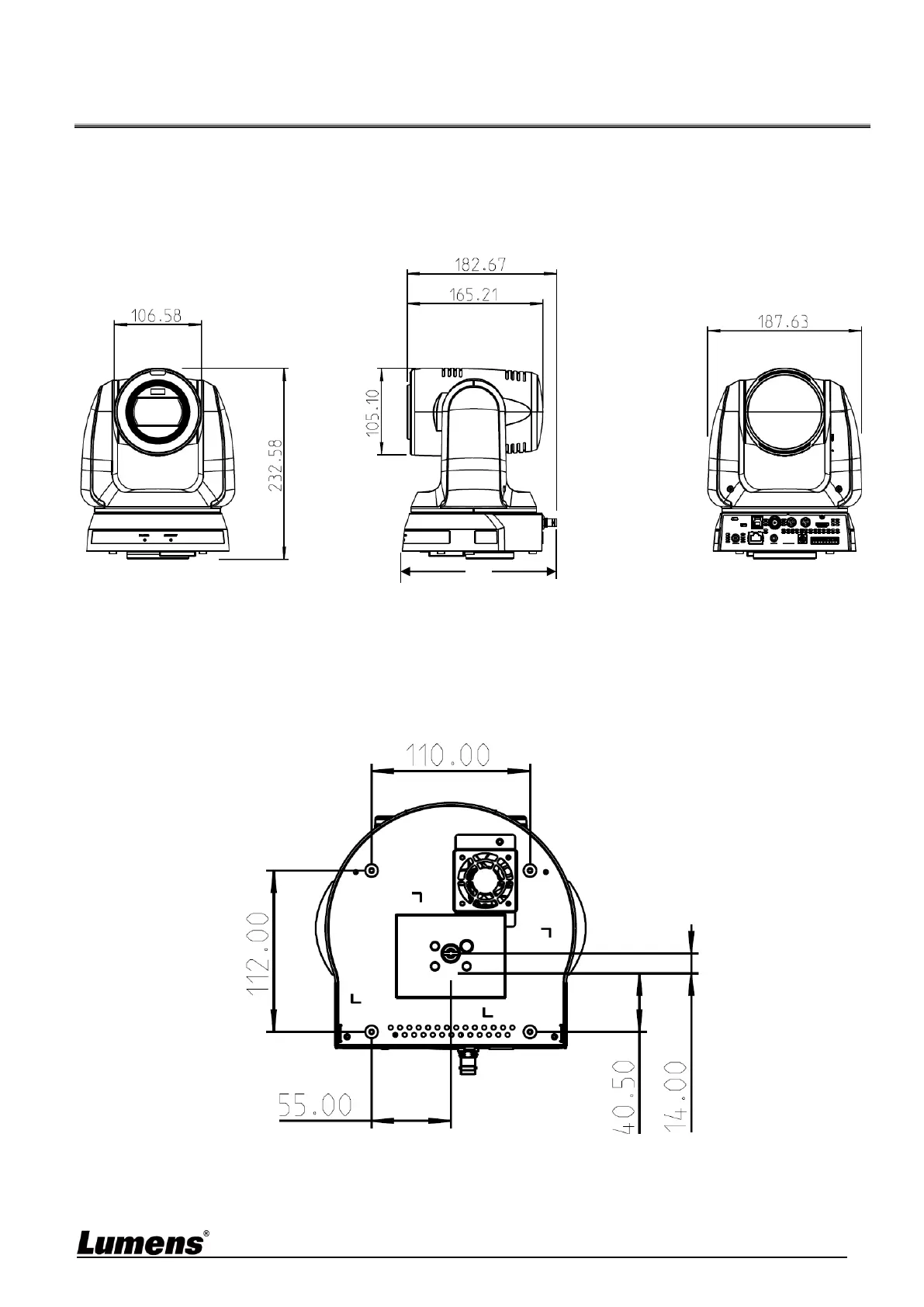

3.1 Camera Size
3.1.1 Camera Front View and Side View
 Length x Width x Height: 233 x 188 x 189 mm
 Weight: 3.0 Kg (without mental plates)
3.1.1.1 Bottom of Camera
The camera can be mounted on a 1/ 4”-20 UNC PTZ tripod deck by using the lock holes on
the bottom for the tripod
189

Lumens VC-A71SN Specifications

General

Brand	Lumens
Model	VC-A71SN
Category	Security Camera
Language	English
