5. MEASURING PROCEDURES
5-1 1Φ 2W ( one phase by two wires ) measurement

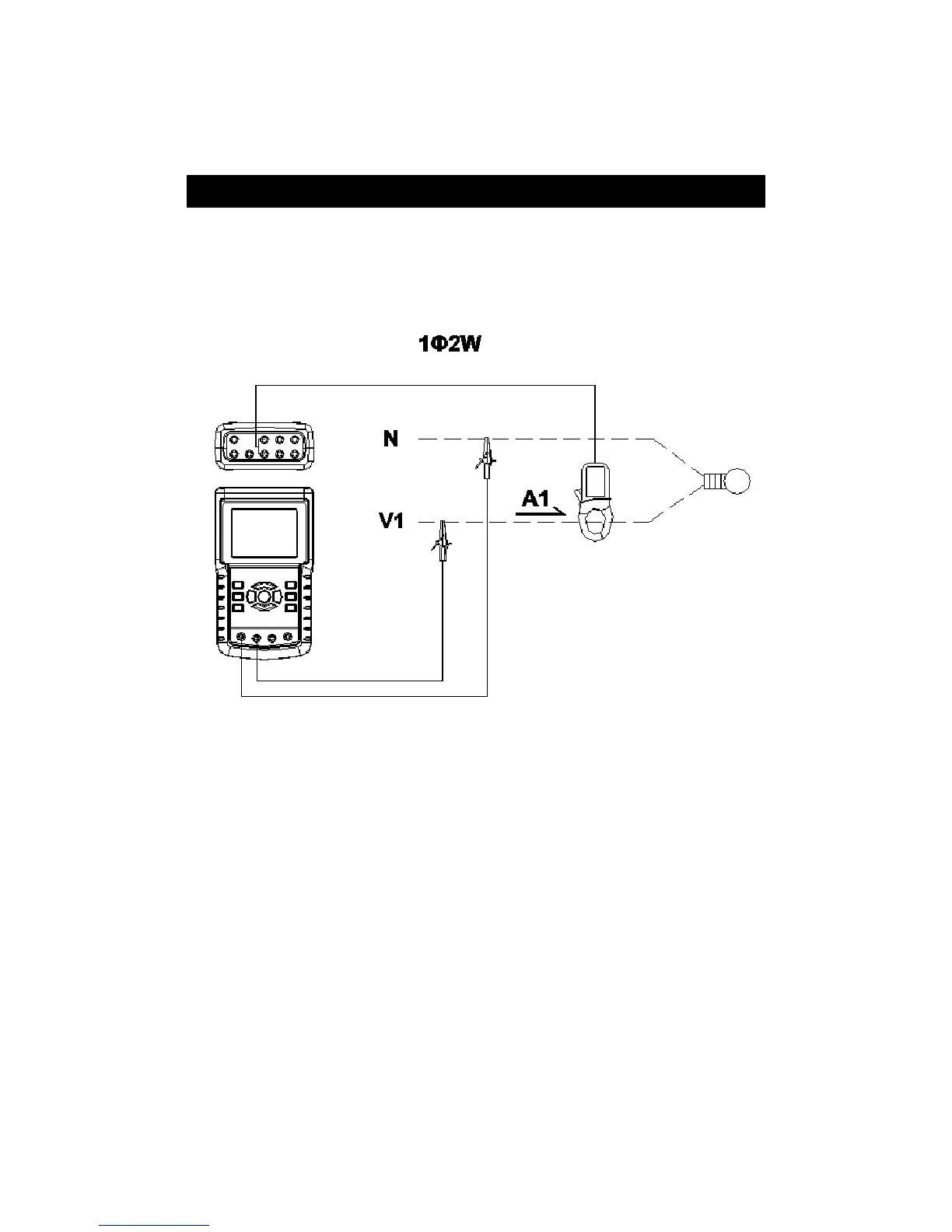

A : Diagram
SCREEN 1 ( 5-1 )
B : Operation Instructions:
B-1 : Power on the instrument by pressing POWER
KEY, and then press 1Φ 3Φ KEY to select the 1Φ 2W
system, the selected name of system will be
appeared on bottom left display of screen 2.
B-2 : Connect the line voltage L1, Vn ( Neutral ) to
V1 and N terminals of the instrument.
B-3: Place the conductor of CP-1201 (A1)to A1 as
screen 1.
B-4: Connect the output of clamp meter " CP-1200(A1) "
to A1 terminal of the instrument.
B-5: The related measuring factors will be appeared on
display, about the instruction of factor please refer
appendix 1 ( 5-12, page 51 ).
38
