5-3 3Φ 3W (three phases by three wires)
measurement

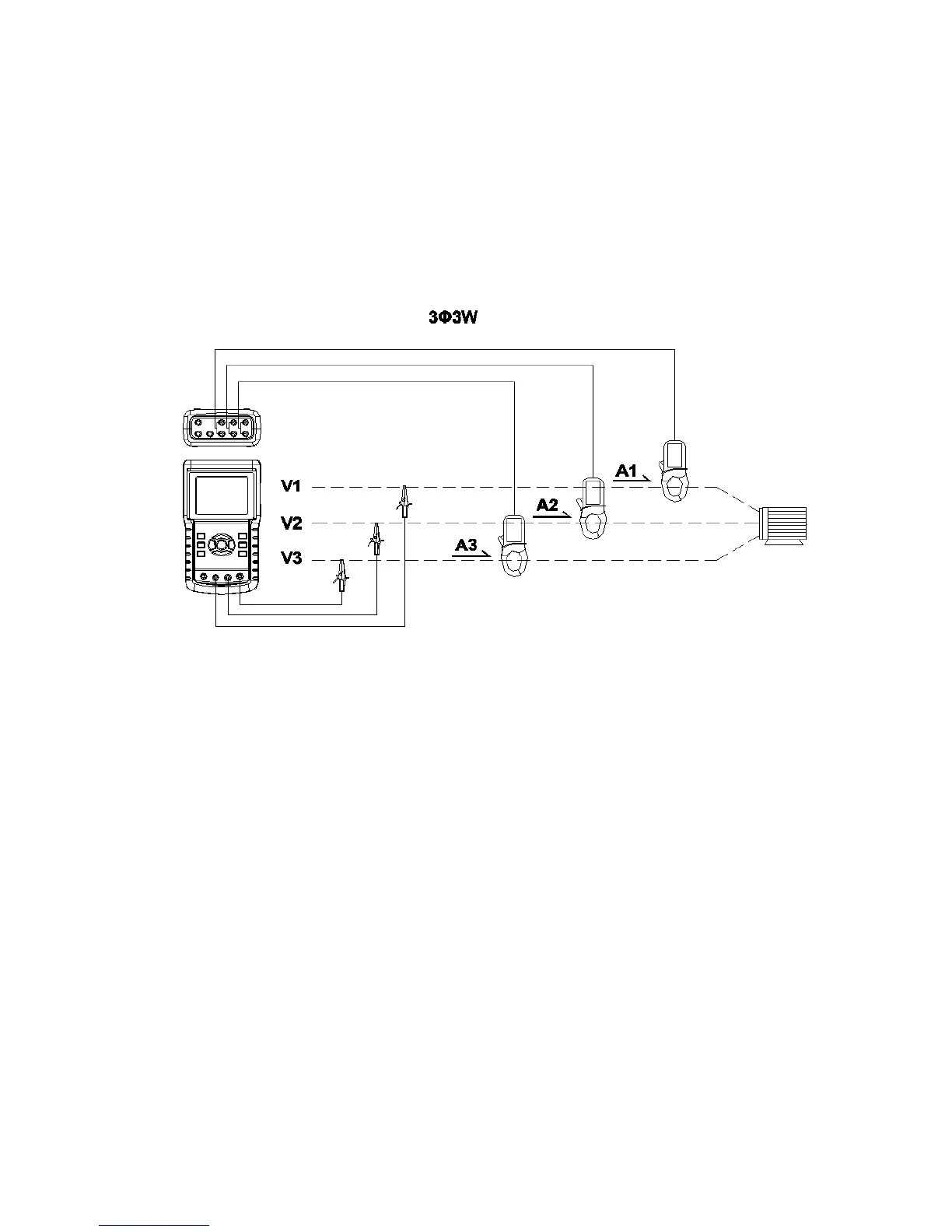

A : Diagram
screen 1 ( 5-3 )
B : Operation Instructions:
B-1 : Power on the instrument by pressing POWER KEY,
and then press 1Φ 3Φ KEY to select the 3Φ 3W system,
the selected name of system will be appeared on bottom
left display of screen 2.
B-2: Connect the line voltage L1, L2 and L3 to V1, V2
and V3 terminals of the instrument.
B-3: Place the conductor of CP-1201(A1), CP-1201(A2),
CP-1201(A3) hook to A1, A2 ,A3 as screen 1.
B-4 : Connect the outputs of clamp meter CP-1201(A1)
, CP-1201(A2), CP-1201(A3) to A1, A2, A3 terminals
of the instrument.
B-5: The related measuring factors will be appeared on
display, about the instruction of factor please refer
appendix 1 ( 5-12, page 51 ).
41
To Next Page
