QS Timeclock Installation and Operation Guide 3
®
D1 D1 D2 D2
• Pull power wiring from distribution panel to QS Timeclock.
• Each line voltage terminal can accept one 12 AWG (4.0 mm²) wire.

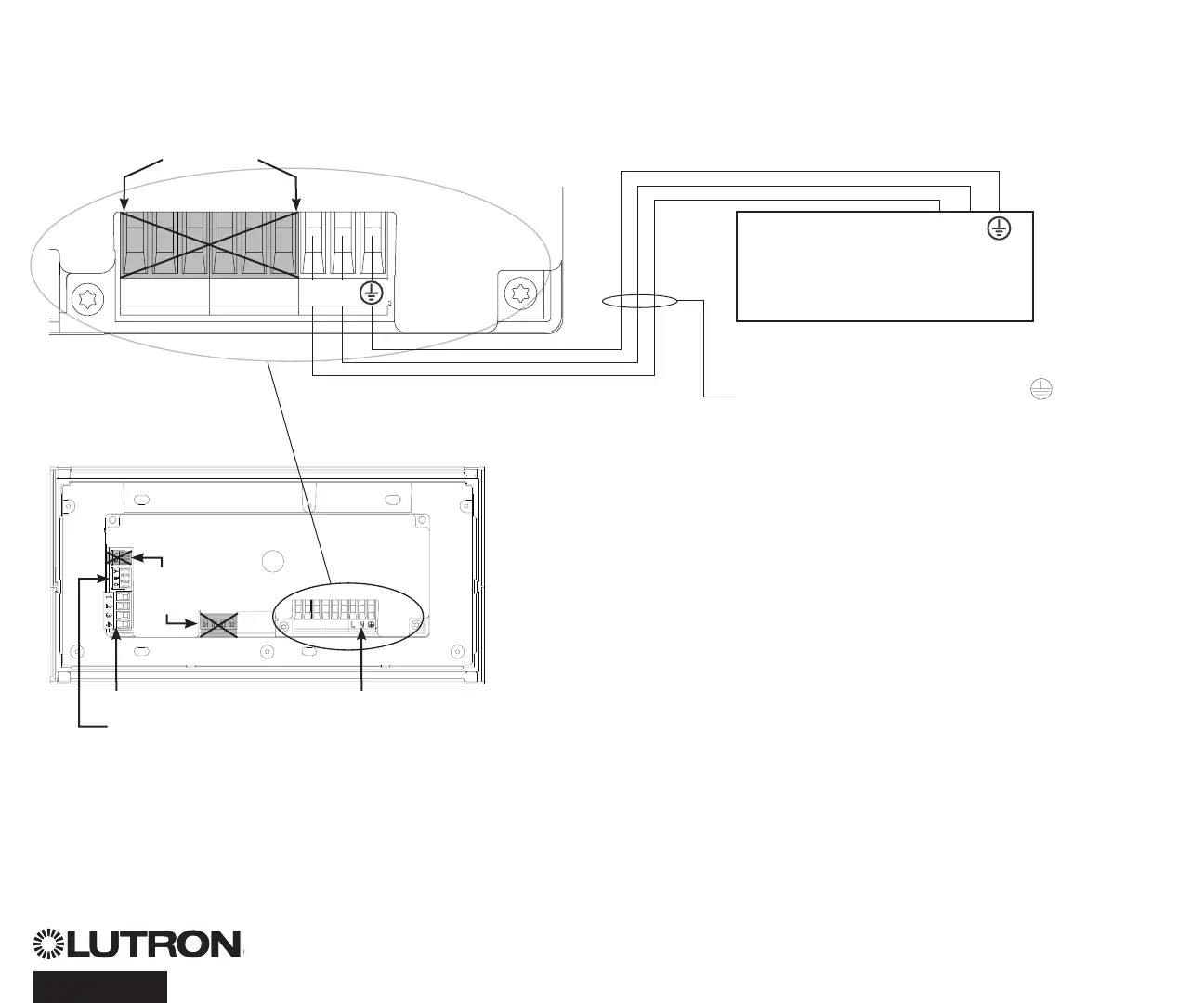

Line Voltage Wiring
D1 D1 D2 D2
NOT USED
Rear of
QS Timeclock
1234
12
ABC
123456LN
Line voltage (Line / Hot)
is labeled L.
100–240 V~ only
Distribution Panel
1234
12
ABC
123456LN
Terminations
QS Communication link
Contact closure input and 24 V- power
NOT
USED
Input Power
L: Line / Hot
N: Neutral
: Ground
