Guía de Instalación y Funcionamiento del reloj temporizador QS 3
®
D1 D1 D2 D2

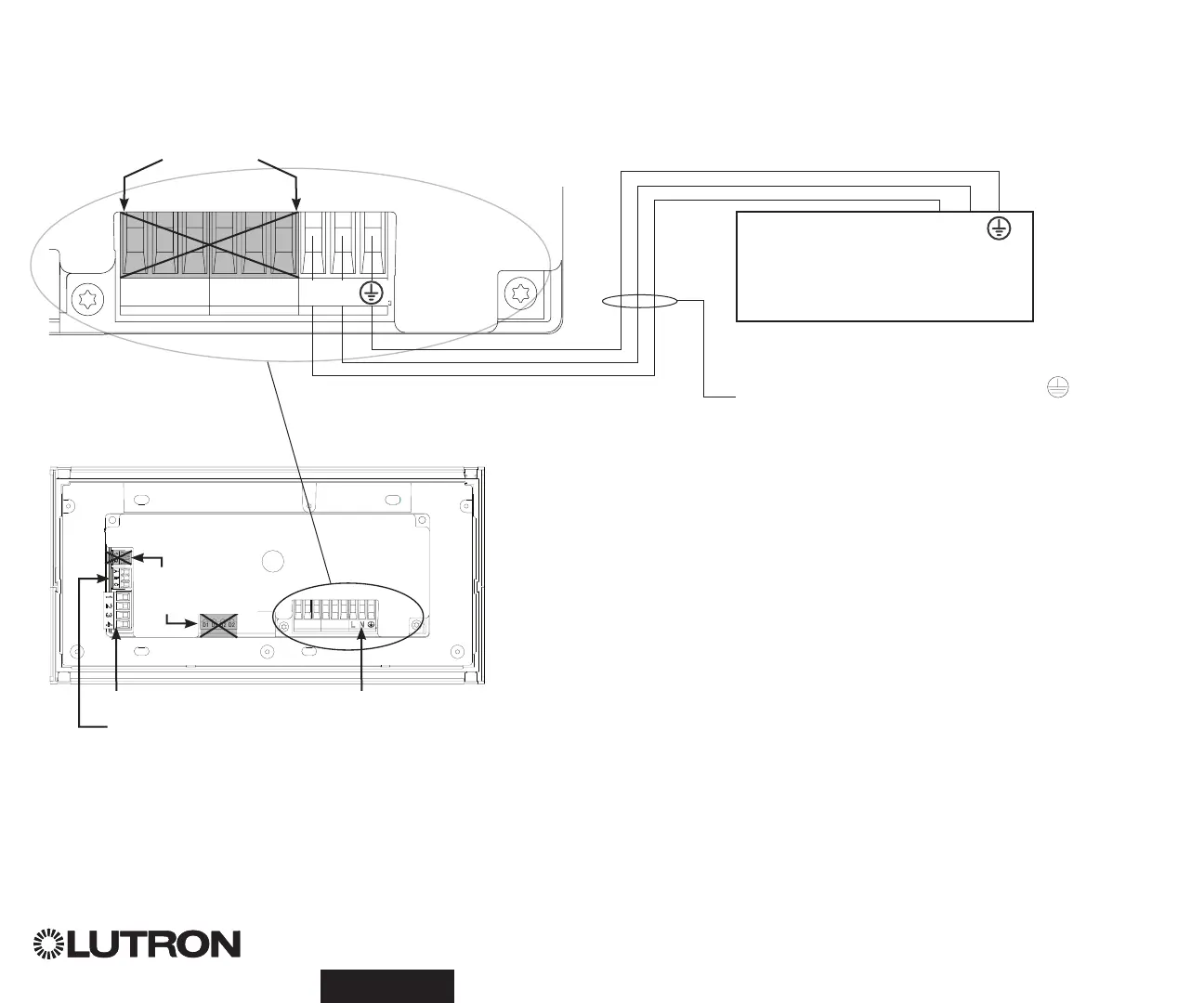

• Lleve el cableado de alimentación desde el panel de distribución hasta el reloj temporizador QS.
• Cada terminal de voltaje de línea puede admitir un cable de 4,0 mm² (12 AWG).
Cableado de voltaje de línea
D1 D1 D2 D2
NO
UTILIZADO
Parte posterior
del Reloj
temporizador QS
1234
12
ABC
123456LN
El voltaje de línea (Línea / Vivo) se
indica con la letra "L".
100–240 V~ sólo
Panel de distribución
1234
12
ABC
123456LN
Terminaciones
Enlace de comunicación QS
Entrada de cierre de contacto y 24 V- energía
NO
UTILIZADO
Entrada de energía
L: Línea / Vivo
N: Neutro
: Tierra
