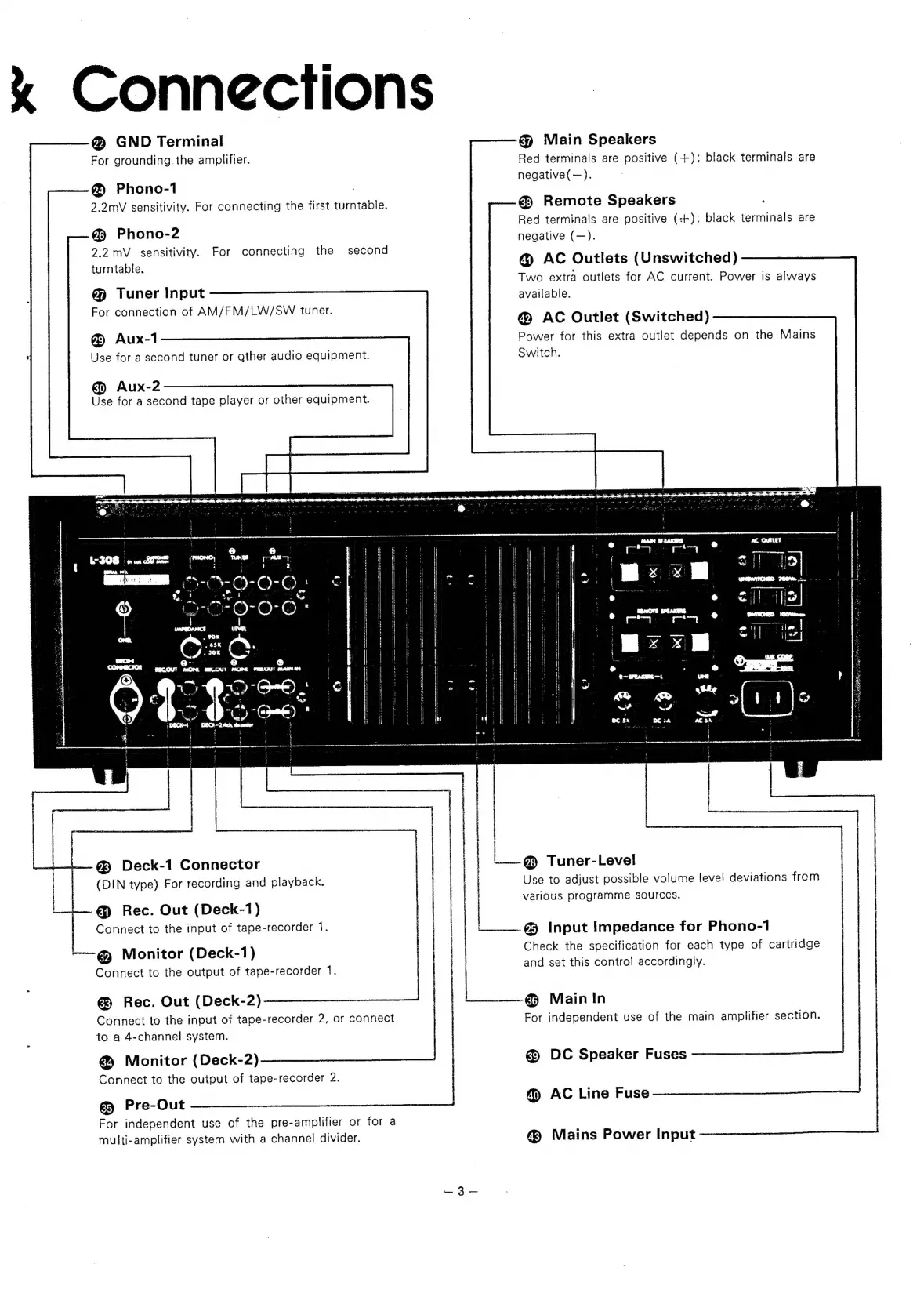

Connections
@ GND Terminal
For grounding.the amplifter.
@ Phono-1
2.2mV sensitivity. For connecting the first turntable.
@ Phono-2
2.2 mV sensitivity. For connecting the second
turntable.
¢) Tuner Input
For connection of AM/FM/LW/SW tuner.
&) Aux-1
Use
for
a
second
tuner
or
qther
audio
equipment.
@ Aux-2
Use for a second tape player or other equipment.
3 8 ::
308 en TRE meno, nee am
—- ee %-0- ‘on on
Gh ‘O O- ox
~¢ Deck-1 Connector
(DIN
type)
For
recording
and
playback.
-@ Rec. Out (Deck-1)
Connect to the input of tape-recorder 1.
‘€ Monitor (Deck-1)
Connect to the output of tape-recorder 1.
@ Rec. Out (Deck-2)
Connect
to
the
input
of
tape-recorder
2,
or
connect
to a 4-channel system.
@ Monitor (Deck-2)
Connect to the output of tape-recorder 2.
€ Pre-Out
For independent use of the pre-amplifier or for a
multi-amplifier system with a channel divider.
——( Tuner-Level
-—) Main Speakers
Red terminals are positive (+): black terminals are
negative(—).
€
Remote
Speakers
,
Red
terminals
are
positive
(:+);
black
terminals
are
negative
(—).
@ AC Outlets (Unswitched)
Two extra outlets for AC current. Power is always
available.
& AC Outlet (Switched)
Power for this extra outlet depends on the Mains
Switch.
(Ee OEE ee EA PEE AEE oh ; A
Use
to
adjust
possible
volume
level
deviations
from
various
programme
sources.
9 Input Impedance for Phono-1
Check the specification for each type of cartridge
and set this control accordingly.
—_ Main In
For
independent
use
of
the
main
amplifier
section.
€
DC
Speaker
Fuses
@
AC
Line
Fuse
@ Mains Power Input
