(4) Press the ENTER switch to determine the changed set-
ting of BAL LINE-1, 3+ and 2- of BAL-2 blink to show
that the BAL LINE-2 phase inversion setting of the bal-
anced input can be performed. (4th line of Fig. 1)
If the ENTER switch is pressed one more time, the step
goes to the BAL LINE-3 phase inversion setting.
(5) Press
▲ or ▼ to invert the BAL LINE-2 phase of the
balanced input, and the display turns to 3- and 2+. (5th
line of Fig. 1)
Press
▲ or ▼ again to turn the phase setting back to
3+ and 2-.
(6) Press the ENTER switch to determine the changed set-
ting, 3+ and 2- of BAL-3 blink to show that the BAL
LINE-3 phase inversion setting of the balanced input
can be performed. (6th line of Fig. 1)
If the ENTER switch is pressed one more time, the step
goes to the BAL OUT phase inversion setting.
(7) Press
▲ or ▼ to invert the BAL LINE-3 phase of the
balanced input and the display turns to 3- and 2+. (7th
line of Fig. 1)
Press
▲ or ▼ again to turn the phase setting back to
3+ and 2-.
(8) Press the ENTER switch to determine the changed set-
ting, 3+ and 2- of BAL OUT blink to show that the BAL
LINE-1 and BAL LINE-2 phase inversion settings of the
balanced output can be performed. (8th line of Fig. 1)
If the ENTER switch is pressed one more time, the step
goes back to the step (2) to enable the BAL LINE-1
phase inversion setting of the balanced input again.
(9) Press
▲ or ▼ to invert the BAL LINE-1 and BAL LINE-2
phases of the balanced output and the display turns to
3- and 2+. (9th line of Fig. 1)
Press
▲ or ▼ again to turn the phase setting back to
3+ and 2-.
(10) Press the ENTER switch to set the step back to the
step (2) to enable the BAL LINE-1 phase inversion set-
ting of the balanced input again.
Press the PRESET switch to exit from the preset mode.
Pressing the PRESET switch allows the setting to be
memorized in any state of the steps from (1) through (10)
and the preset mode to end.
If no entry is performed for 1 minute in the preset mode,
the current mode ends with the immediately preceding
setting stored, and the regular display resumes.
PRESET
ENTER
▲,▼
ENTER
▲,▼
▲,▼
PRESET
PRESET
ENTER
▲,▼
ENTER
▲,▼
PRESET
PRESET
ENTER
PRESET
ENTER
ENTER
▲,▼
PRESET
PRESET
▲,▼
ENTER
▲,▼
PRESET
PRESET
ENTER
(Setting end)

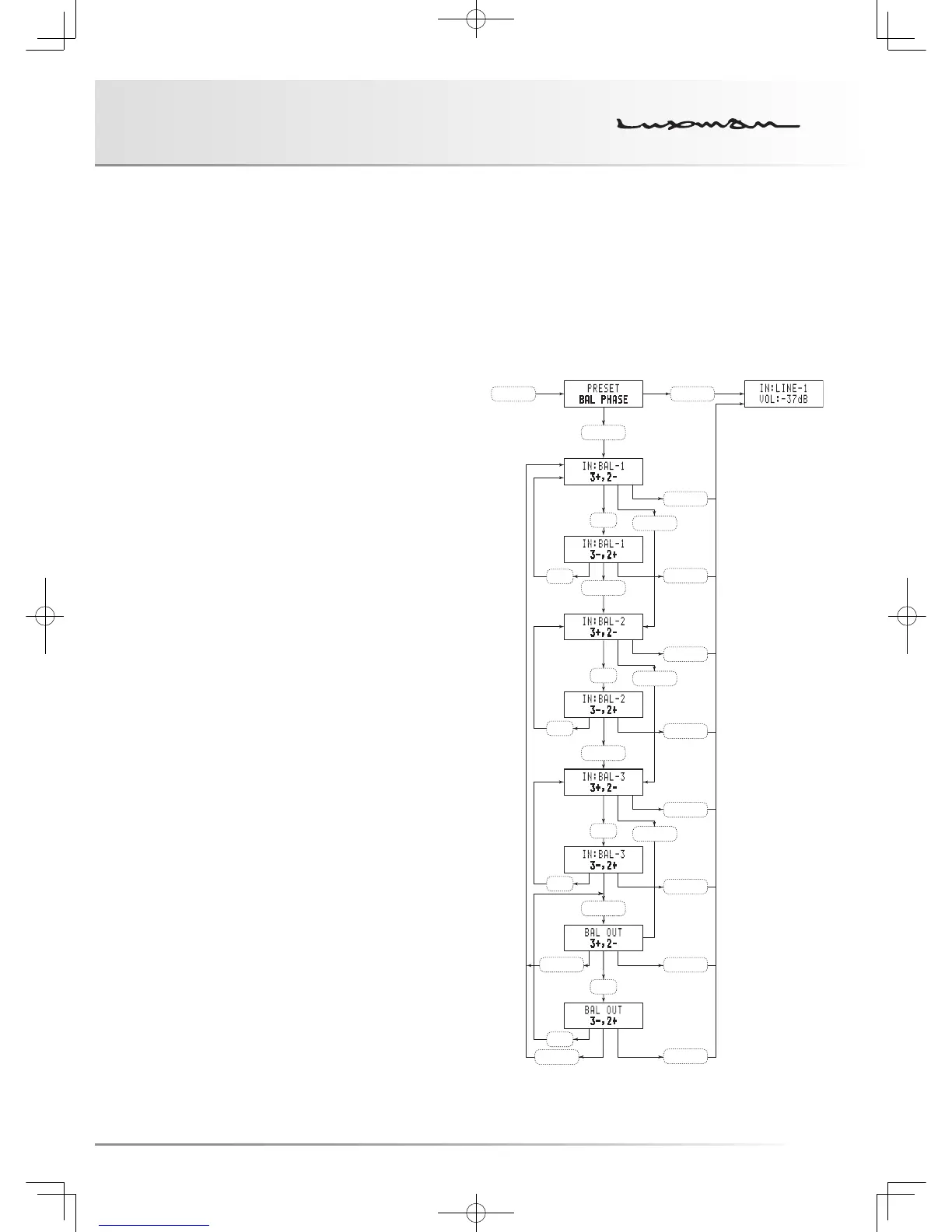

Fig. 1
