How to Use Remote Control

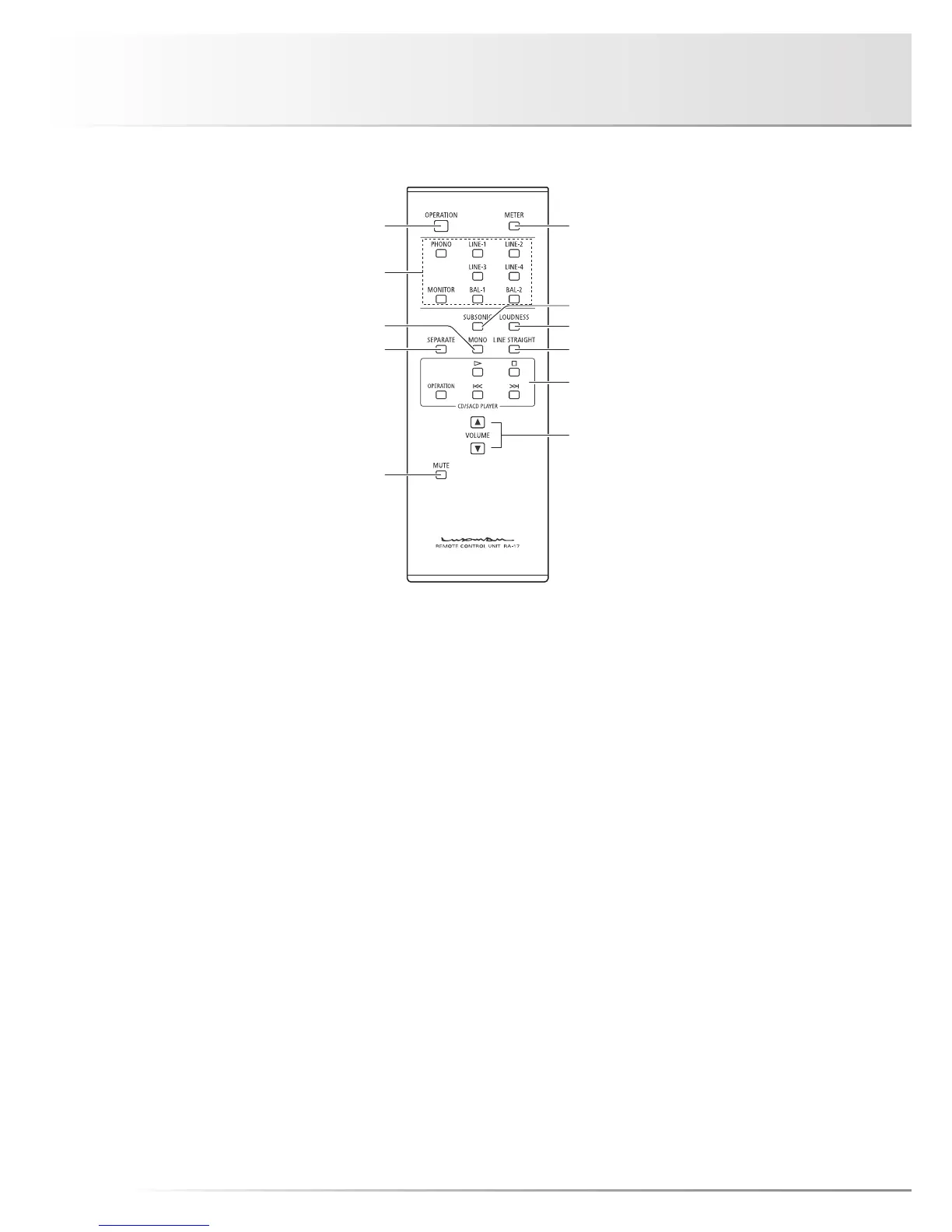

Remote control (RA-17)
1
2
4
5
11
10
9
8
6
3
7
1. Operation switch (OPERATION)
Toggles the power on and off.
When wiring or connection is performed, be sure to turn off
this switch.
2. Input selector
(LINE-1, LINE-2, LINE-3, LINE-4, BAL-1,
BAL-2, PHONO, MONITOR)
Selects an input terminal from among the unbalanced input
terminals on the rear panel consisting of LINE-1, LINE-2,
LINE-3, LINE-4, PHONO, and MONITOR or the balanced
input terminals consisting of BAL LINE-1 and BAL LINE-2.
3. Monaural switch (MONO)
Mixes the signals from right and left channels. The monaural
indicator lights up when this switch is pressed.
Pressing this button again to turn off the monaural switch
allows regular stereophonic reproduction.
* When the line straight switch is set to on, this switch does
not function.
4. Separate switch (SEPARATE)
Separates the pre-amplifier and main-amplifier each other.
off : Uses this unit as a normal pre-main amplifier.
on : Feeds external signals from the MAIN IN termi-
nal on the rear panel to the main-amplifier sec-
tion.
• Holding down this switch for 1 second toggles the sepa-
rate switch on and off.
The separate indicator lights up when the separate switch
is on.
5. Mute switch (MUTE)
Activates the mute function and blinks the power-on indica-
tor resulting in no sound generated.
Pressing this button again to set the mute function to off
allows sound to be generated.
6. Meter switch (METER)
Turns off the meter lights.
Pressing this switch again turns on the meter lights again.
(separate
indicator off)
(separate
indicator on)
