Names and Functions
10. Line straight switch (LINE STRAIGHT)
Enhances the purity of the sound quality by bypassing the
balance control circuit, tone control circuit, or the like.
off : Line straight off/bypass off
on : Line straight on/bypass on
• Every pressing of this switch toggles the line straight on
and off.
The line straight indicator lights up when the line straight
switch is on.
When the line straight switch is set to on, the balance control,
tone control, subsonic, monaural and loudness cannot be
adjusted and the mode selector does not function.
11. Balance control (BALANCE)
Adjusts the balance of sound volume between right and left
channels.
Rotating this switch counterclockwise causes the left sound
volume to be enhanced, and rotating the switch clockwise
causes the right sound volume to be enhanced.
This switch shall be set to the center position under normal
conditions, and rotated to make adjustment if necessary.
When the line straight switch is set to on, this switch does
not function.
12. Tone control for treble (TREBLE)
Controls the frequency characteristics in the high-frequency
range.
When this switch is set to the center position, flat frequency
characteristic is obtained. Rotating the switch clockwise
causes the high-frequency range to be enhanced, and
rotating the switch counterclockwise causes the high-fre-
quency range to be attenuated.
When the line straight switch is set to on, this switch does
not function.

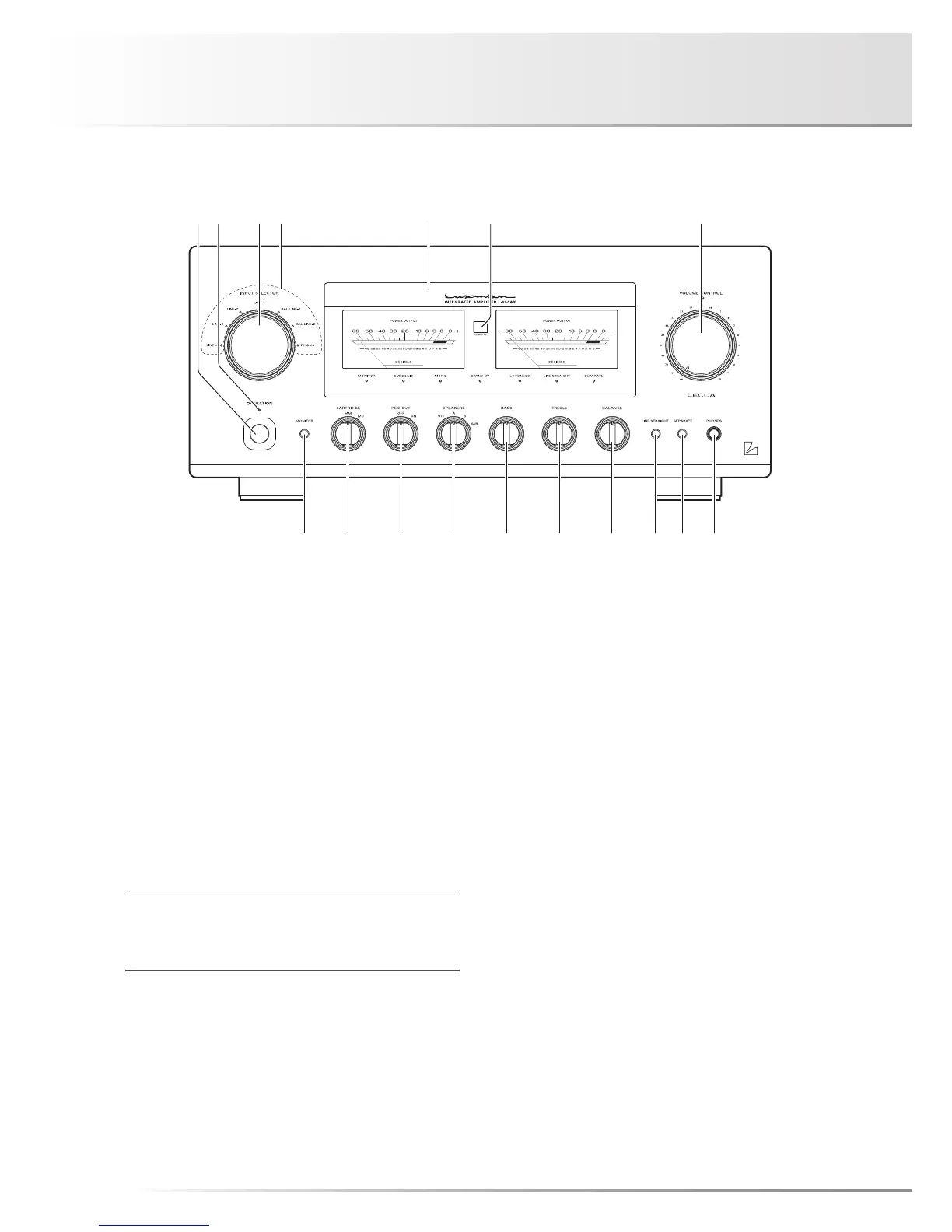

Front panel
891011121314151617
5 6
71 2 43
(line straight
indicator off)
(line straight
indicator on)

Luxman L-590AX Specifications

General

Type	Integrated Amplifier
Output Power	30W + 30W (8Ω), 60W + 60W (4Ω)
Input Impedance	47kΩ (LINE)
Frequency Response	20Hz-20kHz (+0, -0.5dB)
Signal-to-Noise Ratio	105dB (LINE)
Dimensions	440 x 193 x 463 mm
