4

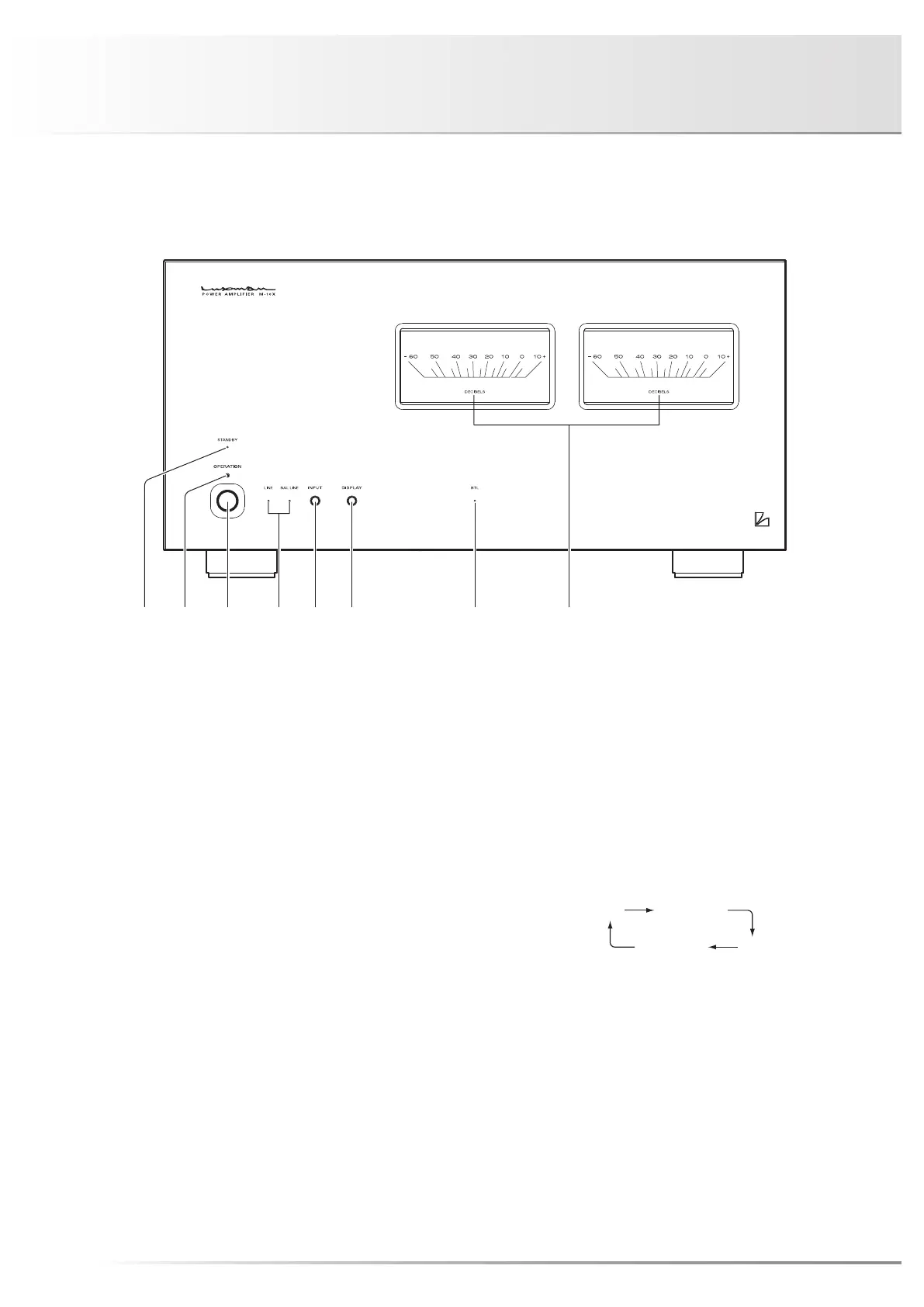

Names and Functions
1. Standby indicator (STANDBY)
Indicates that this unit is on standby.
This indicator lights up when the operation button is turned
off after the main power button on the rear panel is set to ON/
STANDBY.
When the operation button is turned on and the main power
button is set to OFF, this indicator turns off.
2. Operation indicator (OPERATION)
Blinks for approximately 15 seconds during time muting
when the operation button is turned on and lights up when
it becomes operational afterward.
3. Operation button (OPERATION)
Changes this unit from standby to operational.
This unit becomes operational after turning this unit to
standby by setting the main power button to the ON/
STANDBY position on the rear panel and turning on this
button.
When wiring or connection is performed, be sure to turn off
this button.
4. Input indicator (LINE/BAL LINE)
Indicates the input selected with the input button.
5. Input button (INPUT)
Selects the unbalanced input terminal (LINE) or balanced
input terminal (BAL LINE), both of which are located on the
rear panel.
Every time this button is pressed, the selection changes as
follows: LINE→BAL LINE→LINE→BAL LINE→LINE…
LINE BALLINE
LINE
BALLINE
Factory default: LINE
When this button is toggled, the input/output muting circuit
is activated and no sound is generated.
Front panel
