Lynxspring ONYXX LX BZ424-LX User Manual

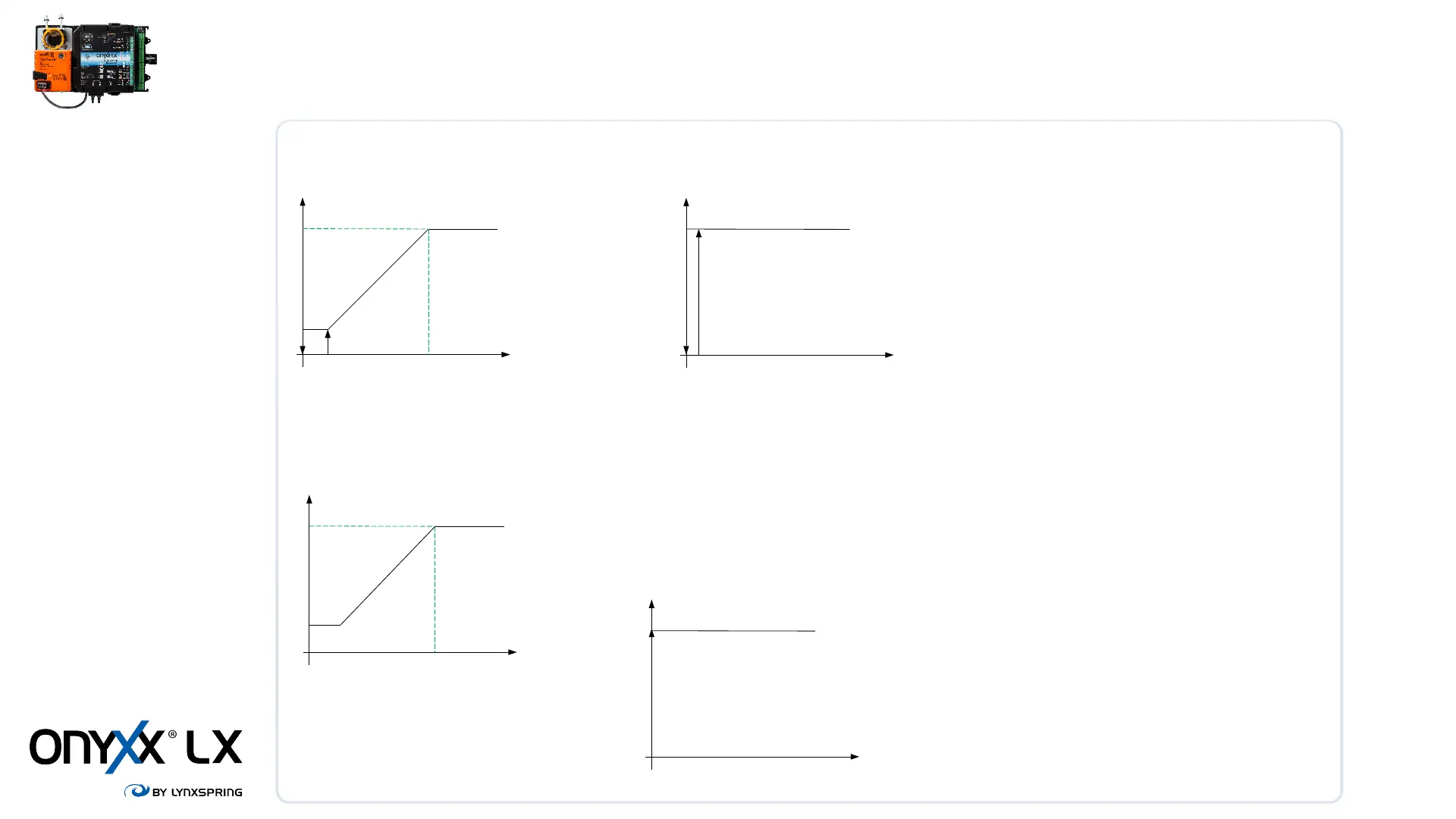

Sequence of Operation Details
Or
AuxE_Out (AV50)
PidHtg (%)
Var1(AuxC_Out
or AuxE_Out)
30%
100
 AuxC_Formula (MSV14) != 4 Analog
Or
Aux
E_Formula (MSV41) != 4 Analog
100%
AuxC_Type or AuxE_Type
Series Fan (8)
Unoccupied and Standby mode
AuxC_Out (AV48)
AuxC_Out (AV48)
Or
AuxE_Out (AV50)
PidHtg (%)
> 0%
 AuxC_Formula (MSV14) == 4 On/Off
Or
AuxE_Formula (MSV41) == 4 On/Off
PidHtg (%)
RoomT_Loc (MSV17):
1x Tzone.
PidRoomT_Htg
2x Tzone.
TzControlMode (MSV34):
Tzone1.
PidRoomT_Htg
Tzone2.
PidRoomTz2_Htg
Average.
(PidRoomT_Htg + PidRoomTz2_Htg) / 2.0
Maximum Htg
MIN(PidRoomT_Htg, PidRoomTz2_Htg)
Maximum Clg
MAX(PidRoomT_Htg, PidRoomTz2_Htg)
3x Tzone.
TzControlMode (MSV34):
Tzone1.
PidRoomT_Htg
Tzone2.
PidRoomTz2_Htg
Tzone3.
PidRoomTz3_Htg
Average.
(PidRoomT_Htg + PidRoomTz2_Htg + PidRoomTz3_Htg) / 3.0
Maximum Htg
MIN(PidRoomT_Htg, PidRoomTz2_Htg, PidRoomTz3_Htg)
Maximum Clg
MAX(PidRoomT_Htg, PidRoomTz2_Htg, PidRoomTz3_Htg)
AuxC_Out (AV48)
Or
AuxE_Out (AV50)
Max (PidHtg (%) or PidClg (%))
Var1(AuxC_Out
or AuxE_Out)
30%
100
 AuxC_Formula (MSV14) != 4 Analog
Or
Aux
E_Formula (MSV41) != 4 Analog
100%
AuxC_Type or AuxE_Type
Series Fan (8)
Occupied mode
AuxC_Out (AV48)
Or
AuxE_Out (AV50)
Max (PidHtg (%) or PidClg (%))
Always On
 AuxC_Formula (MSV14) == 4 On/Off
Or
AuxE_Formula (MSV41) == 4 On/Off
PidClg (%)
RoomT_Loc (MSV17):
1x Tzone.
PidRoomT_Clg
2x Tzone.
TzControlMode (MSV34):
Tzone1.
PidRoomT_Clg
Tzone2.
PidRoomTz2_Clg
Average.
(PidRoomT_Clg + PidRoomTz2_Clg) / 2.0
Maximum Htg
MIN(PidRoomT_Clg, PidRoomTz2_Clg)
Maximum Clg
MAX(PidRoomT_Clg, PidRoomTz2_Clg)
3x Tzone.
TzControlMode (MSV34):
Tzone1.
PidRoomT_Clg
Tzone2.
PidRoomTz2_Clg
Tzone3.
PidRoomTz3_Clg
Average.
(PidRoomT_Clg + PidRoomTz2_Clg + PidRoomTz3_Clg) / 3.0
Maximum Htg
MIN(PidRoomT_Clg, PidRoomTz2_Clg, PidRoomTz3_Clg)
Maximum Clg
MAX(PidRoomT_Clg, PidRoomTz2_Clg, PidRoomTz3_Clg)
www.lynxspring.com

Lynxspring ONYXX LX BZ424-LX Specifications

Power

power supply voltage	24 VAC/VDC ± 15%
current consumption	5 VA
maximum current consumption	48 VA
voltage range	0 - 10 Vdc
current range	0 - 20 mA

Mechanical

dimensions	4.9” x 8.5” x 2.5”
dimensions (metric)	123 mm X 215 mm X 63 mm
weight	744 g / 1.5 lb
noise level	35 dB(A)
shaft diameter	1/4” to 5/8” [6mm to 16mm]

Operating Environment

stocking temperature range	-30 °C to 50 °C / -22 °F to 122 °F
operating temperature range	-25 °C to 45 °C / -13 °F to 113 °F
operating humidity range	10% to 90% H.R. without condensation

Internal Components

microprocessor	STM32 (ARM CortexTM M3) 32 bits
cpu speed	72MHz
memory	768 KB non-volatile Flash
ram	96 KB RAM
