Incorrect combinations:
Strictly avoid to use a universe number more than 2 times. The result will be a flickering show.
Switch / hub
100 Mbit

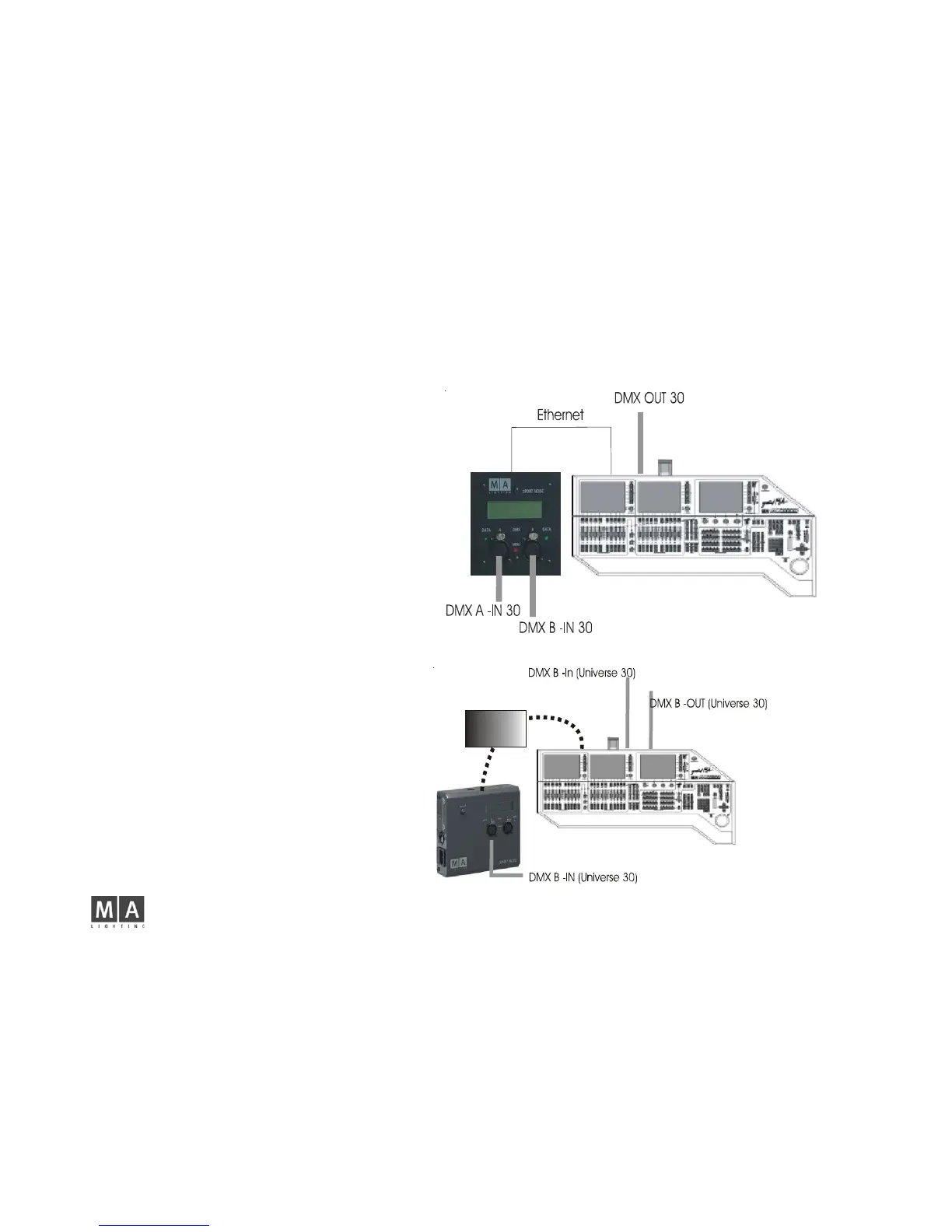

Combination 2:
One 2-Port with 1x DMX IN.Connected with the console via
ethernet.The same universe number is used by the console
and is send from a second console (DMX-IN) - i.e.the
universe number 30 (in this example) is used 3 times in the
same session.
Combination 1:
One 2-Port with 2x DMX IN with the same universe number.Connected
with the console via ethernet.The same universe number is used by the
console - i.e.the universe number 30 (in this example) is used 3 times in
the same session.
