Technical Service: tech.support@malighting.com; +49.5251.688865-30 Emergency Line: +49.5251.688865-99 2-Port Node Version 1.1
1515
1515
15
NOTE: For each Universe, you may only set 2 ports to DMX IN (max.)
per session. Defining more than 2 ports per Universe as DMX IN
could affect the data transmission.
DMX OUT
For DMX-Output. Here, you can combine different Merge modes to other
Universes.
Merge Mode:
In this box, you can define how values should behave when triggering the
same channel in one Universe simultaneously.
The Merge modes (HTP / LTP / LoTP) can only be used in stand-alone
operation.
Stand-alone means that both Universes entering the 2-Ports (both ports
must be set to DMX-IN) and being merged in the next port, must not be
controlled by a console. That is, the consoles may only output by means
of DMX data. And so, the consoles must only output the universe via DMX
- at grandMA consoles the used universe numbers must not marked green

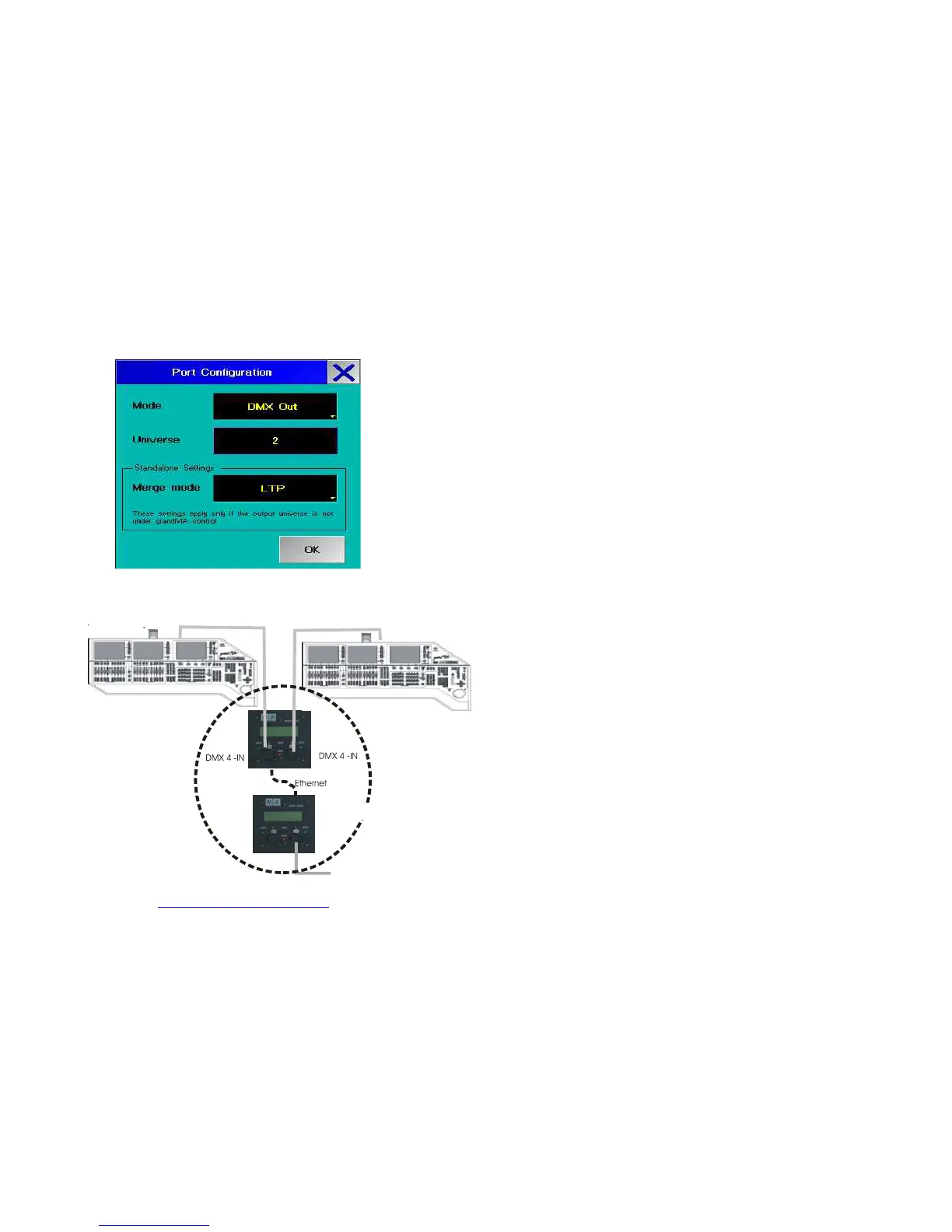

in the DMX-Output menu. See picture left: use universe number 3 oder
higher as standalone universe number.
In one session, a Universe may only be set twice (max.) as DMX IN
(as when merging, only 2 signals will be compared)- and the DMX-
OUT must be set to HTP , LTP or LoTP! The setting "NONE" creates
faulty signals.
For the both incoming DMX Universes to be merged, the output of the
outgoing 2-Port must have the same number as the two incoming
Universes (in the example, on the left 2x DMX IN 4 and 1x DMX
OUT 4). Besides the DMX OUT you can also set the Merge mode.
DMX 4 -OUT MERGE HTP oder LTP oder LoTP
Session
Example of use 6
