MacDon 973 - TORQUE SPECIFICATIONS; ENGLISH TORQUE SPECIFICATION; METRIC TORQUE SPECIFICATIONS

Form # 147083 Issue 01/07
11
TORQUE SPECIFICATIONS
CHECKING BOLT TORQUE
The tables shown below give correct torque values for various bolts and capscrews. Tighten all bolts to the
torques specified in chart unless otherwise noted throughout this manual. Check tightness of bolts periodically,
using bolt torque chart as a guide. Replace hardware with the same strength bolt.
ENGLISH TORQUE SPECIFICATION
NC Bolt Torque*
SAE 5 SAE 8
Bolt
Dia.
"A"
N·m [lb-ft] N·m [lb-ft]
1/4" 12 [9] 15 [11]
5/16" 24 [18] 34 [25]
3/8" 43 [32] 56 [41]
7/16" 68 [50] 95 [70]
1/2" 102 [75] 142 [105]
9/16" 149 [110] 202 [149]
5/8" 203 [150] 271 [200]
3/4"
359 [265]
495 [365]
7/8" 569 [420] 813 [600]
1" 867 [640] 1205 [890]
METRIC TORQUE SPECIFICATIONS
Bolt Torque*
8.8 10.9
Bolt
Dia.
"A"
N·m
[
lb-ft
]
N·m
[
lb-ft
]
M3 0.5
[
.4
]
1.8
[
1.3
]
M4 3
[
2.2
]
4.5
[
3.3
]
M5 6
[
4
]
9
[
7
]
M6 10
[
7
]
15
[
11
]
M8 25
[
18
]
35
[
26
]
M10 50
[
37
]
70
[
52
]
M12 90
[
66
]
125
[
92
]
M14 140
[
103
]
200
[
148
]
M16 225
[
166
]
310
[
229
]
M20 435
[
321
]
610
[
450
]
M24 750
[
553
]
1050
[
774
]
M30 1495
[
1103
]
2100
[
1550
]
M36 2600
[1917]
3675
[2710]
Torque figures indicated above are valid for non-greased or non-oiled threads and heads unless otherwise
specified. Do not grease or oil bolts or capscrews unless specified in this manual. When using locking
elements, increase torque values by 5%.

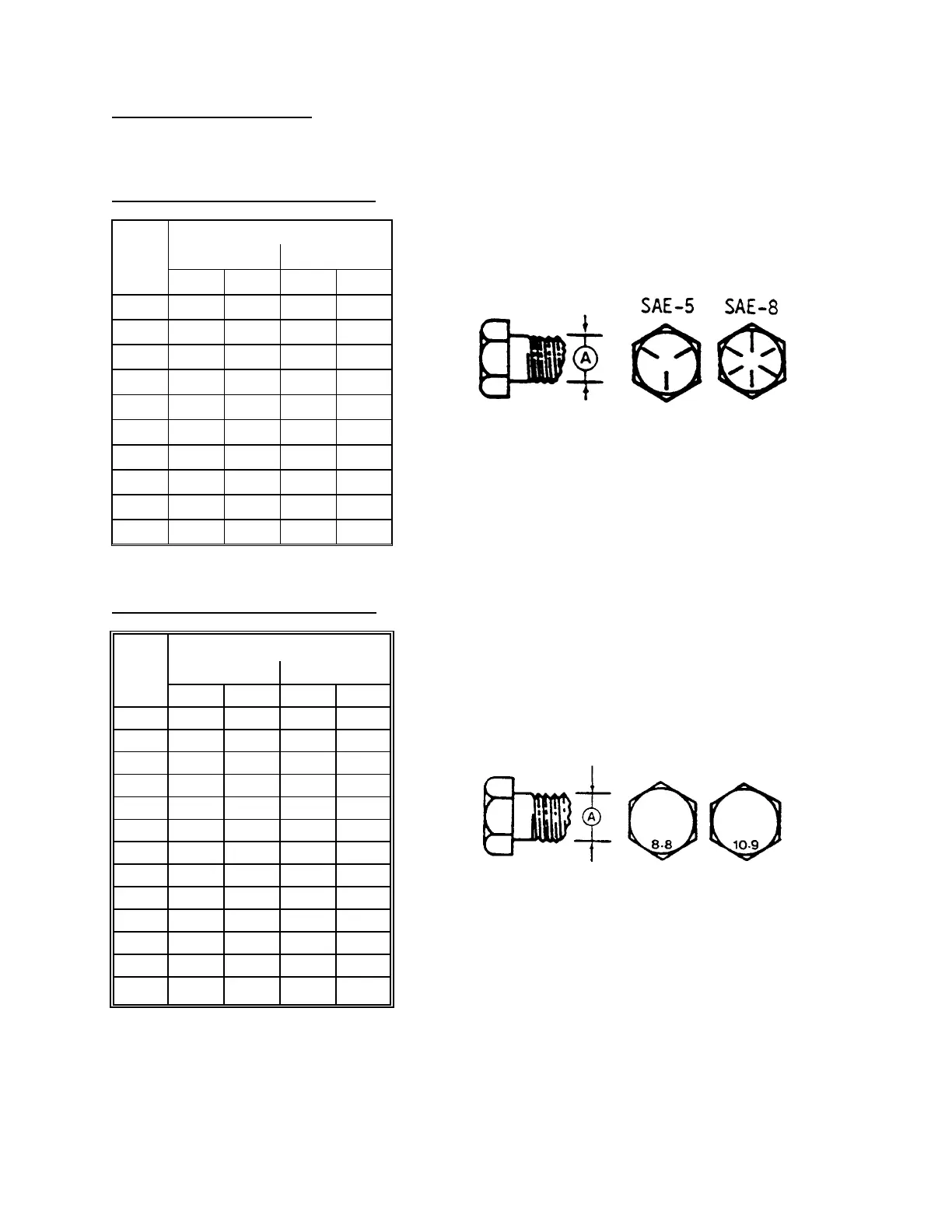

* Torque value for bolts and capscrews are identified by their head markings.
