Form # 147083 Issue 01/07
82

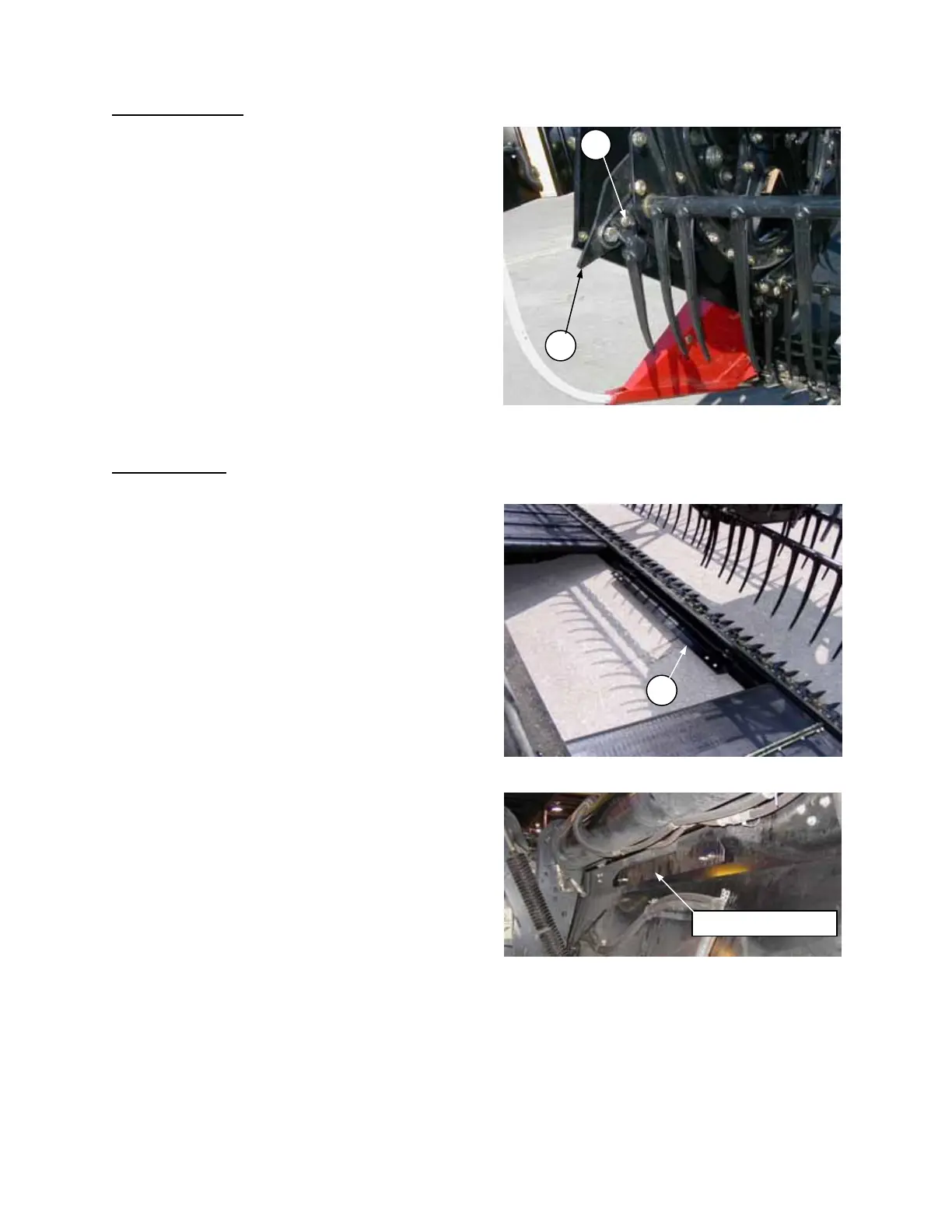

ASSEMBLE REEL CAM ARMS
B
D
UNLOADING & ASSEMBLY
REEL ASSEMBLY
The reel comes fully assembled except for the following:
Two of the reel cam arms (B) have been disassembled
for shipping. Attach cam arms as shown. Install bolts
with heads inboard and torque to 120 ft.lbs. (162 N·m).
NOTE: Hardware for the disassembled cam arms is
taped to the reel.
NOTE: Nut (D) may need to be loosened in order to
install reel cam arm hardware.
END DELIVERY
For headers being set up for end delivery, install bar
(C) onto lugs across center opening at cutterbar. Note
that end tabs bend down and holes in bar are towards
rear of header. This bar prevents draper damage
when end delivering. (Bar is stored on right deck
backsheet, or may be at right end panel on some
headers.)
GUIDE BAR STORAGE
C
INSTALL GUIDE BAR FOR END DELIVERY
