MAINTENANCE/SERVICE
GREASING THE HEADER (continued)
50 Hours
1. Reel Support Bushings (B) – one fitting at R/H end
of split pick-up reel header.
100 Hours or Annually
1. Draper Roller Bearings – 6 fittings
Idler rollers have grease fittings at both cutterbar
and backsheet ends. Drive rollers (with motor)
have a grease fitting at the cutterbar only.
NOTE: To access drive roller fittings, loosen
draper tensioner or shift deck inboard.
At Backsheet – 2 fittings (G)
At Cutterbar – 4 fittings (H)

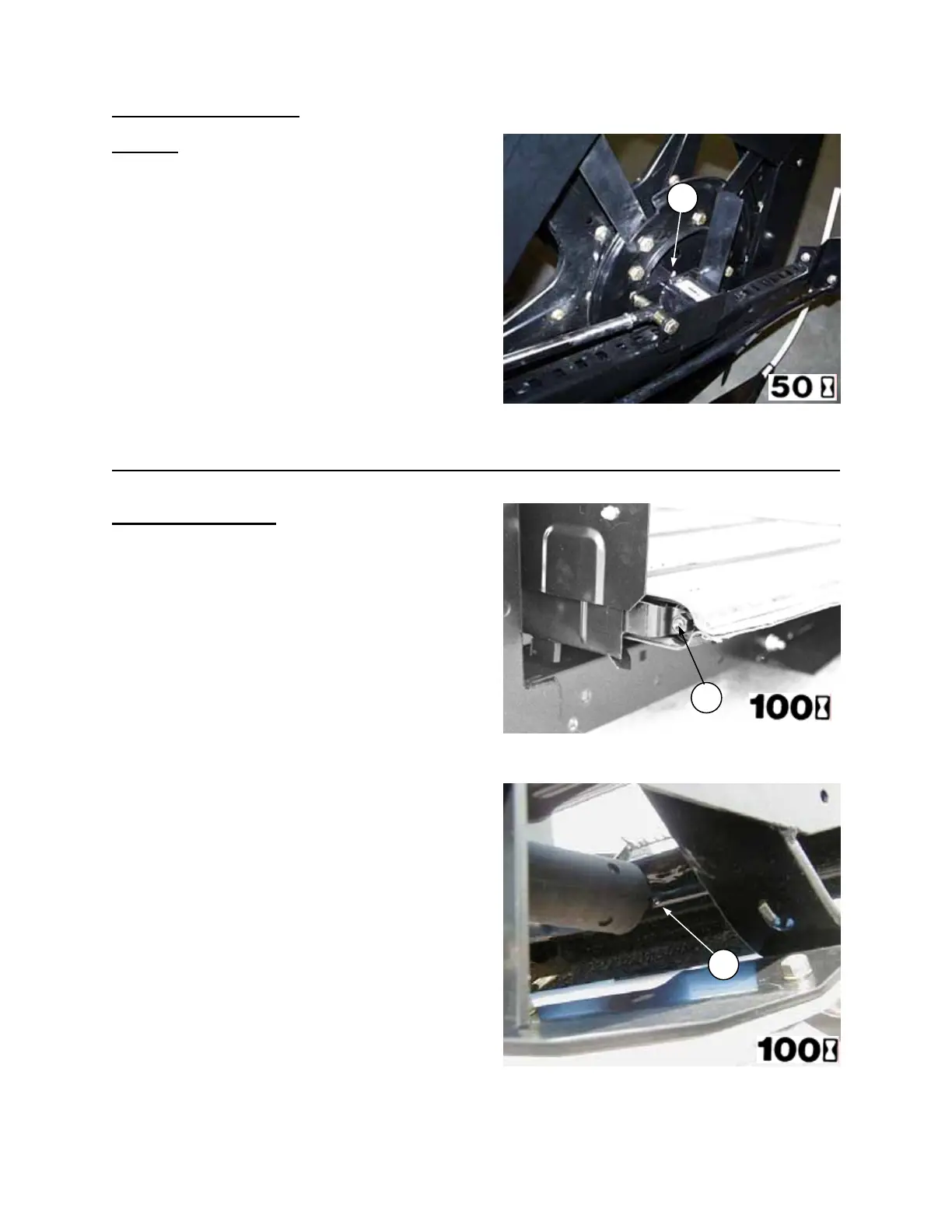

REEL SUPPORT BUSHINGS – R/H
SPLIT PICK-UP REEL HEADER
B
DRAPER ROLLER BEARINGS -
AT BACKSHEET
G
DRAPER ROLLER BEARINGS -
AT CUTTERBAR
H
