MacDon A30-D - Page 24

UNLOADING AND ASSEMBLY
Form 169078 Revision C
24
III. M200

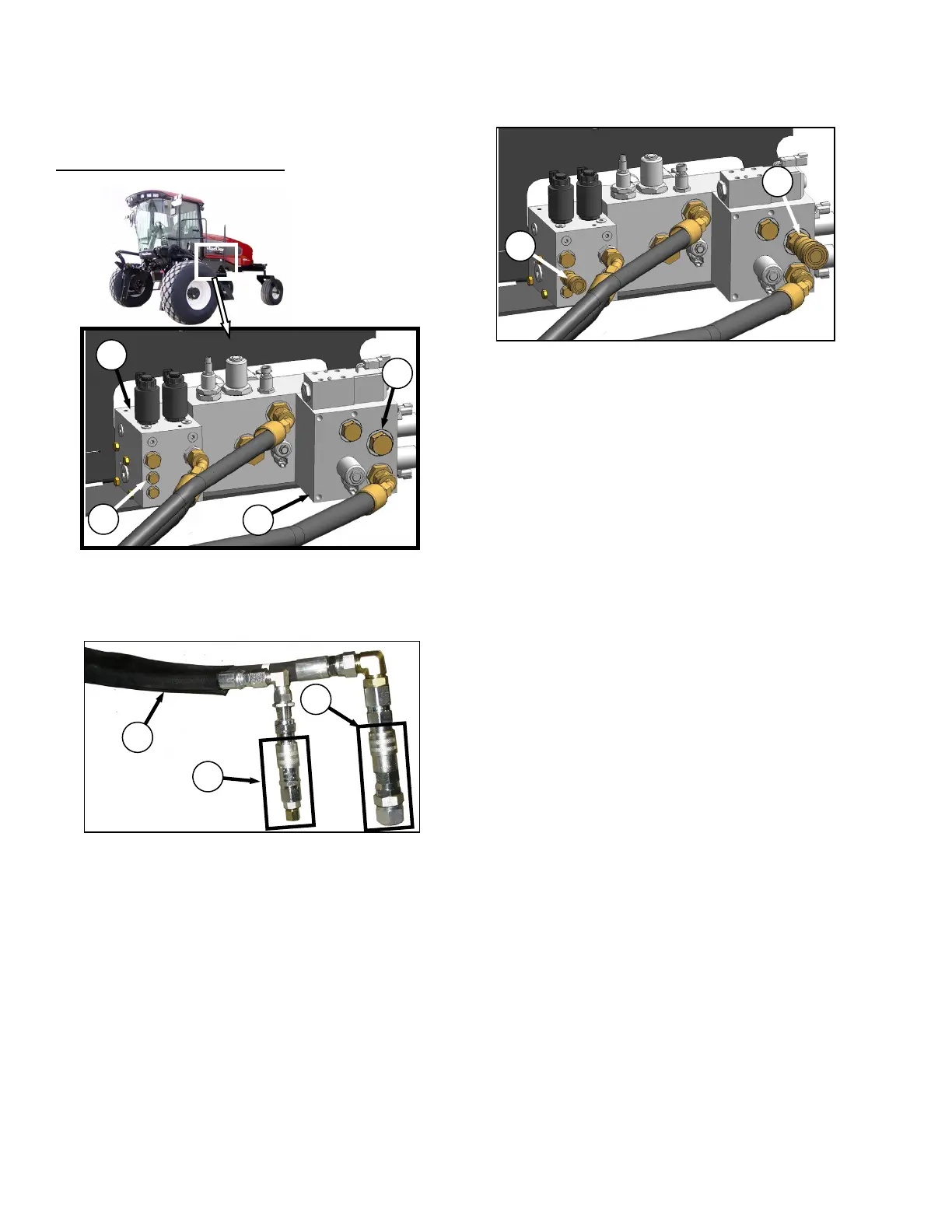

M200 WITH REVERSER VALVE
a. Remove the plugs from ports “R2” on valve
blocks (A) and (B). Ports may not be identified.
b. Remove female coupler assemblies (C) and (D)
from hoses in bundle (E) from header, and
remove caps.
c. Install smaller coupler assembly (C) in R2 port in
valve block (A), and the larger coupler assembly
(D) in R2 port in valve block (B).
NOTE
Adjacent hoses may require slight
repositioning to allow access for new
hoses.
d. Proceed to Step 15. CONFIGURE REVERSER
VALVE JUMPER HOSE.
M200 WITH REVERSER
C
D
E
C
D
M200 WITH REVERSER
R2
R2
A
B
