MacDon A30-D - MOWER CONDITIONER UNHOOK (PULL-TYPE)

UNLOADING AND ASSEMBLY
Form 169078 Revision C
32

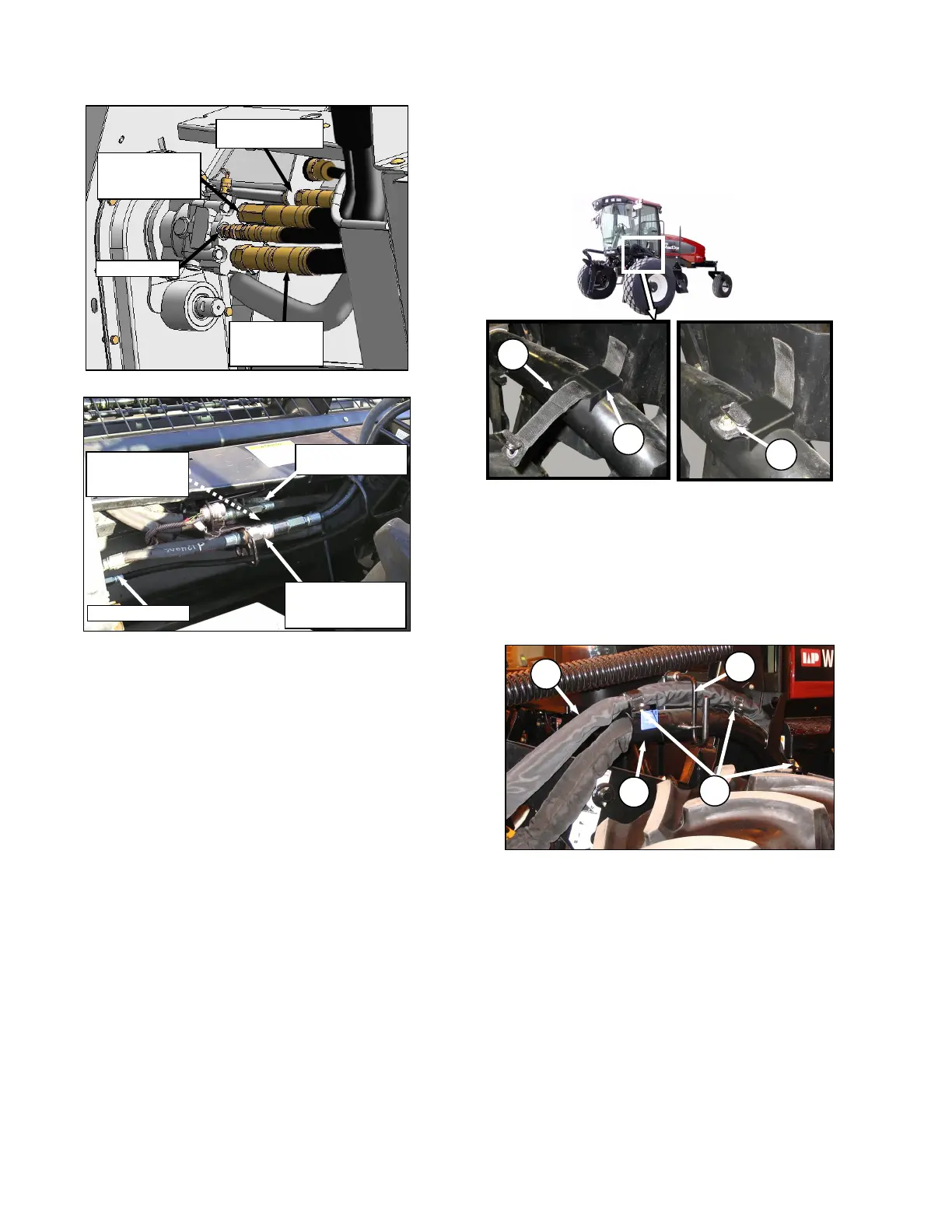

k. Connect the four hoses from windrower to
mating receptacles on header. Ensure collar
snaps into lock position.
l. Install Velcro straps on windrower as follows if
not already installed.
1. Retrieve package of three Velcro straps
shipped with the header.
2. Locate Velcro strap (K) through slot and
under bracket (L) on hose support.
3. Attach strap to bracket with ½ inch carriage
bolt (M) and locking nut. Install bolt from
under bracket.
4. Repeat above steps at the two other
brackets on hose support.
m. Route reel/auger return and auger pressure
hose bundle (H) from header to windrower, and
locate bundle above existing hose support (N)
as shown.
n. Secure with three straps (K) and lower lever (D).
(continued next page)
H
N
K
D
GRASS SEED HEADER
AUGER and REEL
PRESSURE
KNIFE PRESSURE
(FEMALE FITTING
AT HEADER)
KNIFE RETURN
(MALE FITTING
AT HEADER)
CASE DRAIN
STANDARD HEADER
KNIFE and
CONDITIONER
PRESSURE
CASE DRAIN
KNIFE and
CONDITIONER
RETURN
REEL and AUGER
PRESSURE
K
L
M
