PRE-DELIVERY CHECKS
169558 Revision D
39

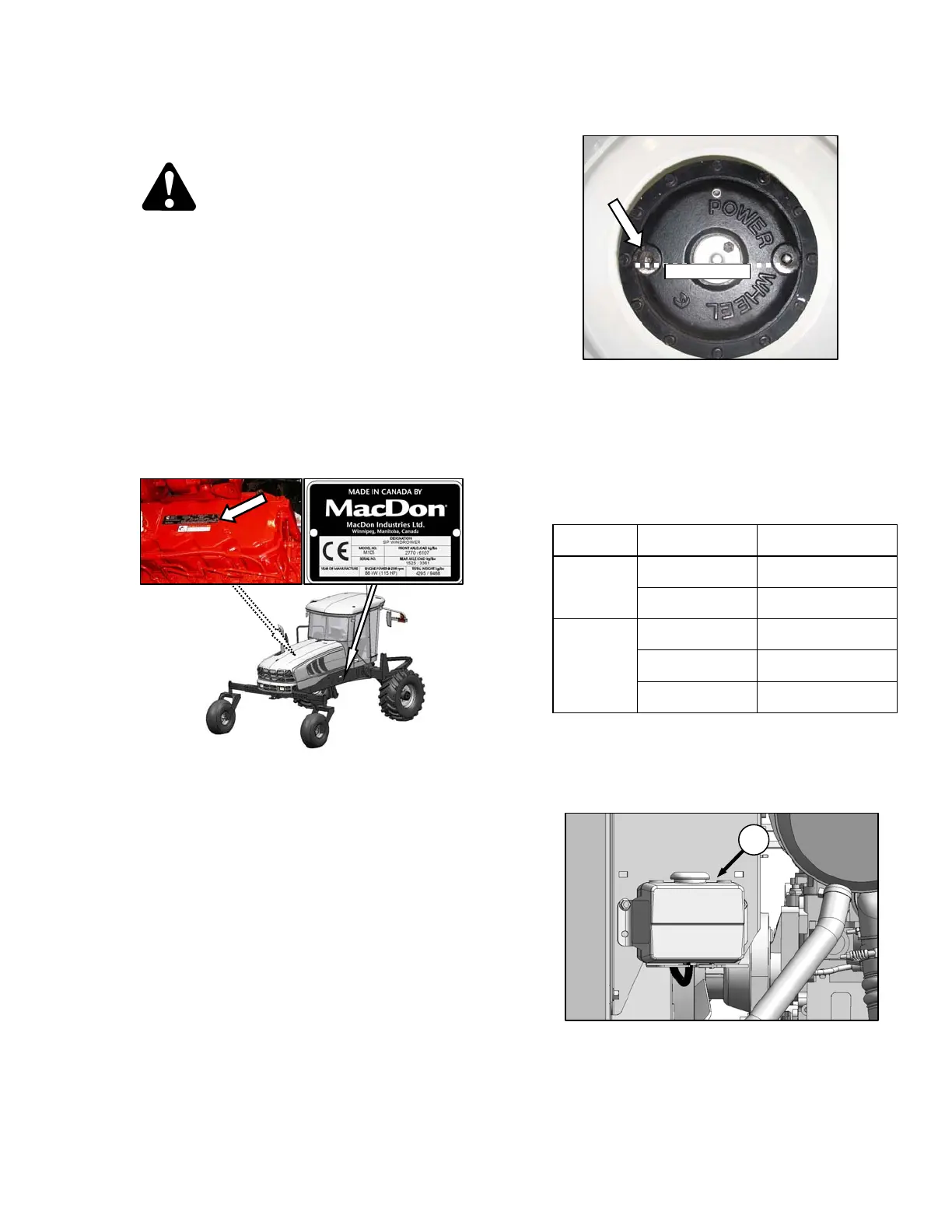

STEP 13. PERFORM PRE-
DELIVERY CHECKS
WARNING
Stop windrower engine, and remove key
before making adjustments to machine. A
child or even a pet could engage the drive.
a. Perform the final checks and adjustments as
listed on the Pre-delivery Checklist (yellow sheet
attached to back of this instruction) to ensure the
machine is field-ready. Refer to the following
pages for detailed instructions as indicated on
the Checklist.
b. The completed Checklist should be retained
either by the Operator or the Dealer.
A. SERIAL NUMBERS
a. Record windrower and engine serial numbers on
the Checklist.
B. FINAL DRIVE LUBRICANT LEVEL
a. Rotate wheel so that one of the plugs is
horizontally aligned with the center of the hub.
b. Remove the plug. The oil should be visible
through the hole, or slightly running out.
C. TIRE PRESSURES
Measure tire pressure with a gauge.
Tire type Size Pressure
Bar
18.4 - 26 32 psi (221 kPa)
600 - 65R28 26 psi (179 kPa)
Turf
18.4 - 26 35 psi (241 kPa)
23.1 - 26 20 psi (138 kPa)
580 / 70 R26 24 psi (165 kPa)
All rear tire pressures are 10 psi (69 kPa).
D. ENGINE COOLANT
a. Check the coolant level in the coolant recovery
tank (A). Tank should be at least one-half full.
b. Check coolant concentration in the radiator.
Coolant shall be good for temperatures of -30°F
(-34°C).
OIL LEVEL
A
To Next Page
