HEADER OPERATION - A SERIES
Form 169017 / 169087 / 169095 105 Revision C

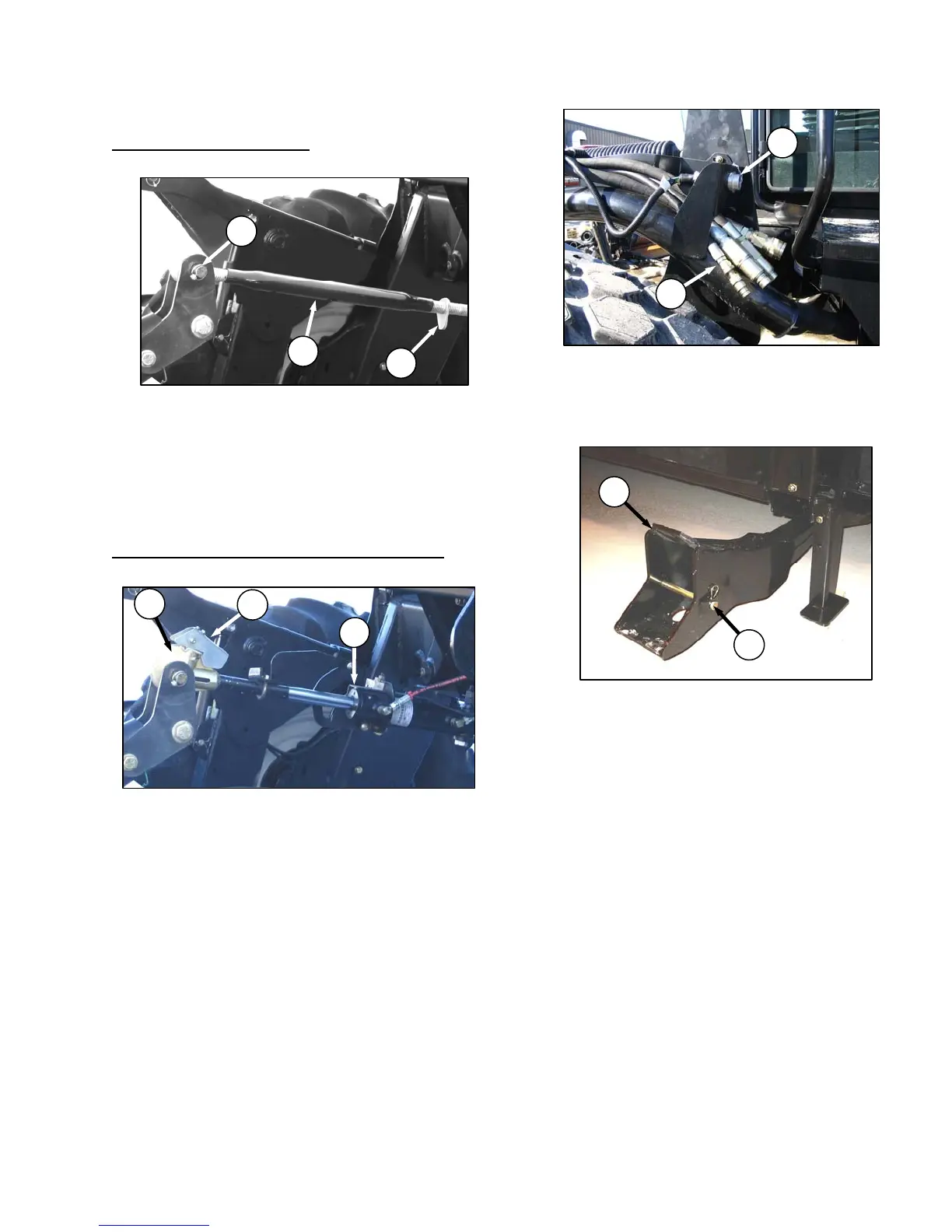

h. Disconnect center-link as follows:
MECHANICAL LINK - M150
1. Loosen nut (G), and rotate barrel (H) to relieve
load on link.
2. Remove cotter pin on pin (J), and remove pin
to disconnect from header. Reinstall pin in
header.
3. Proceed to step i.
HYDRAULIC LINK - M200 STD, M150 OPTION
1. Activate header tilt cylinder switches on GSL
to release load on center-link cylinder (K).
2. Lift hook release (L) and lift hook (M) off
header pin.
NOTE
If optional center-link self-alignment kit is
installed, lift release (L), and then operate
the link lift cylinder with REEL UP switch on
GSL to disengage the center-link from the
header.
i. Disconnect header drive hydraulics (N) and
electrical harness (O). Refer to the Auger Header
Operator’s Manual.
j. Slowly back windrower away from header.
k. Reinstall pins (A) in header boots (P).
P
A
K
L
M
H
G
J
N
O
