5.17.4 CONSOLE HEADER SWITCHES
The Operator’s console contains switches for the
following header functions.

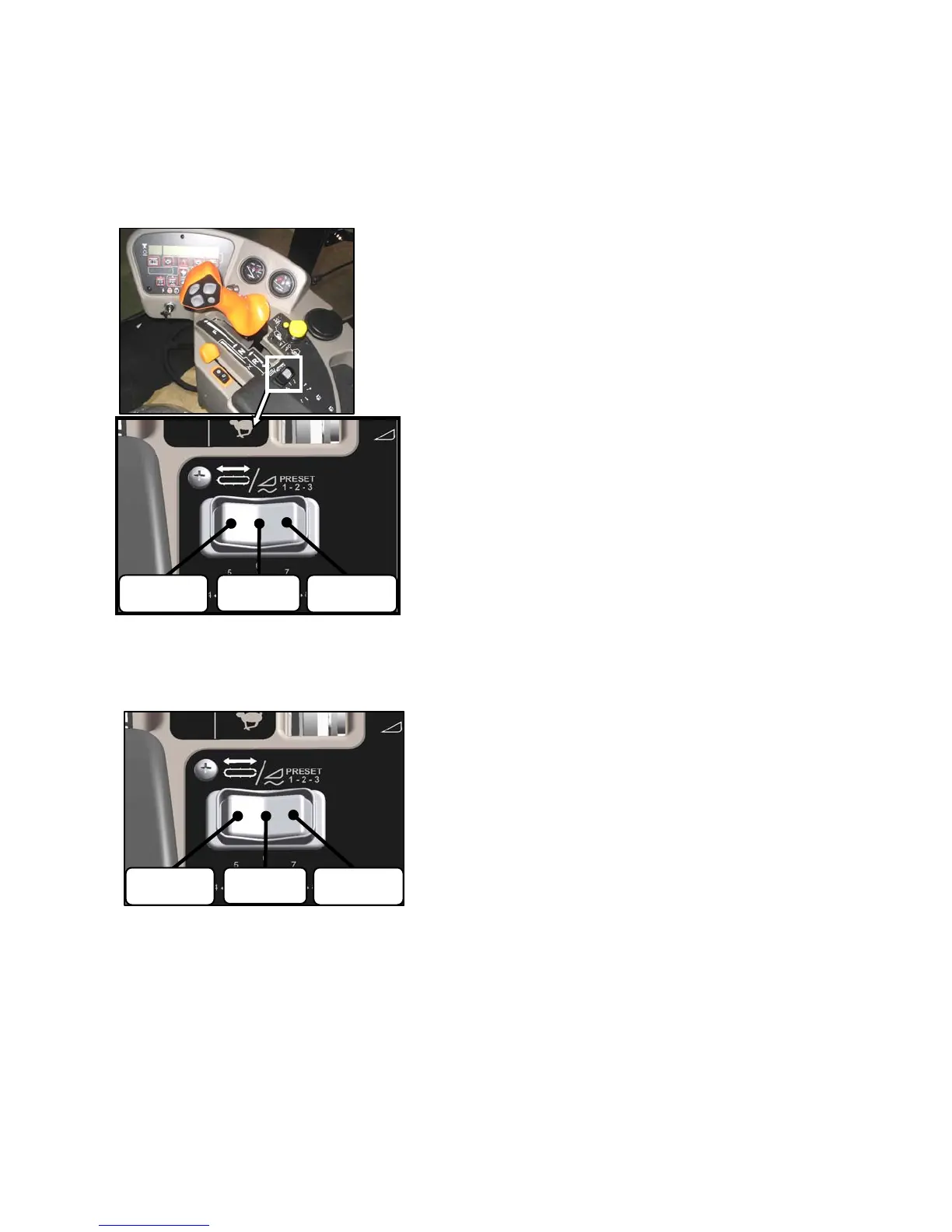

5.17.4.1 Deck Shift / Float Preset Switch
• Draper Header with Deck Shift Option
Controls deck shifting for double
windrowing options with a draper
header.
• Draper Header with Fixed Decks / Auger
Header / Rotary Header
Selects pre-programmed header float
settings. Refer to Section 6.4.2
Header Flotation, for instructions to
preset the float.
NOTE
Refer to the specific Header section in this
instructional manual for detailed switch
operating modes.
FLOAT
PRESET 2
FLOAT
PRESET 3
FLOAT
PRESET 1
CENTER
DELIVERY
RIGHT SIDE
DELIVERY
LEFT SIDE
DELIVERY
