OPERATOR’S STATION
Form 169017 / 169087 / 169095 31 Revision C

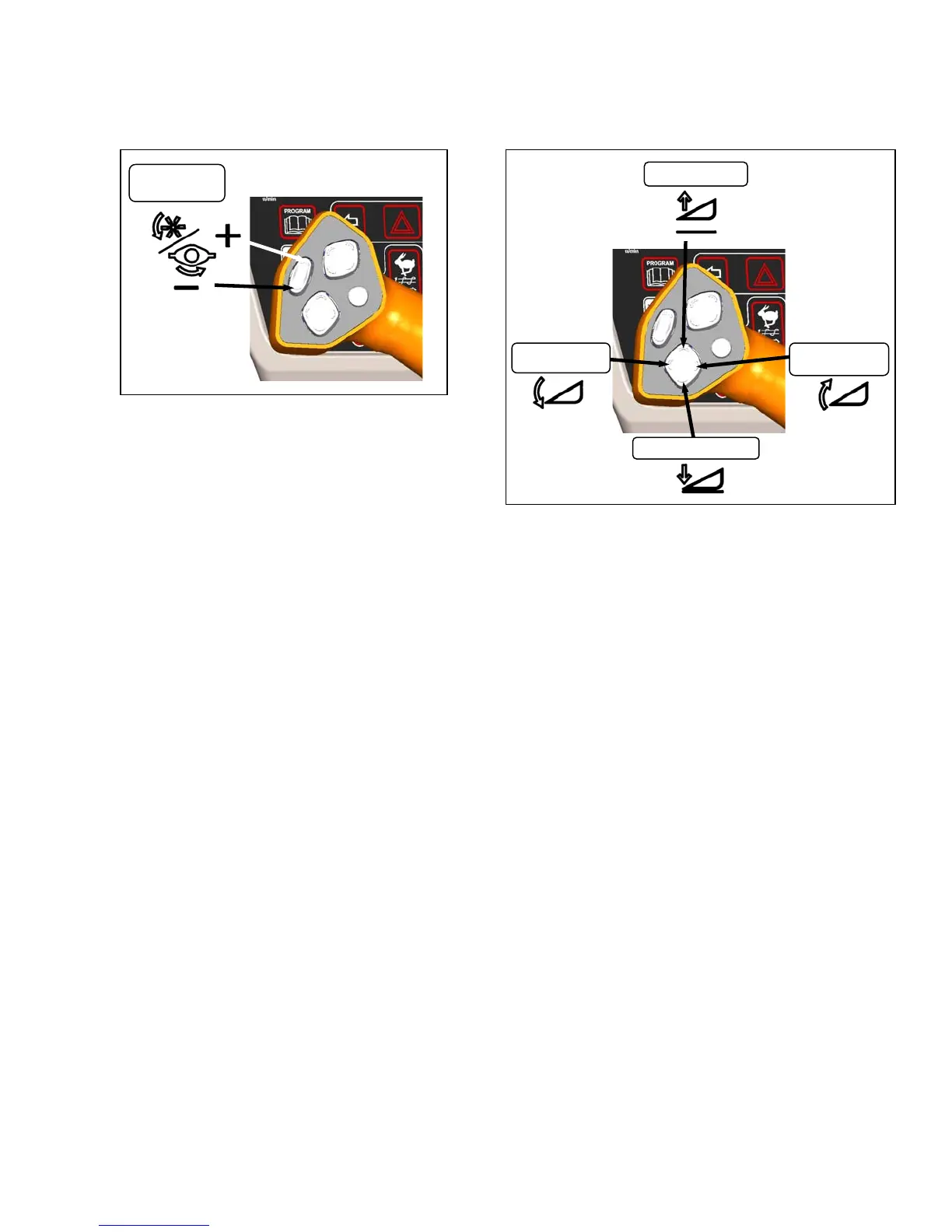

5.17.3.3 Header Position Switches
Press and hold switch at location shown to move
header. Release switch at desired position.
NOTE
Refer to the specific Header section in this
instructional manual for detailed switch
operating modes.
5.17.3.4 Reel and Disc Speed Switches
Press and hold switch at location shown to change
reel or disc speed. Release switch at desired
speed.
• Auger Header
A30 - Not applicable.
A40 - Auger speed is automatically
maintained when reel speed is
changed.
IMPORTANT
Reel speed on auger header must not
exceed 85 rpm.
IMPORTANT
Auger speed must not exceed 320 rpm.
• Draper Header
Reel speed is limited in INDEX
HEADER SPEED mode.
• Rotary Header
Conditioner speed automatically
adjusts when disc speed is changed.
NOTE
Refer to the specific Header section in this
instructional manual for detailed switch
operating modes.
HEADER
TILT UP
HEADER DOWN
HEADER
HEADER UP
REEL / DISC
SPEED
SLOW
FAST
