OPERATOR’S STATION
Form 169017 / 169087 / 169095 20 Revision C
5.7 LIGHTS
The field and transport light switches are located
on a panel in the cab headliner. Refer to
illustrations on following pages for location of
lights.
The lighting is dependent upon the position of the
Operator’s station (i.e. cab-forward mode or
engine-forward mode).
The position of the Operator’s station
automatically determines the lighting.
IMPORTANT
Red reflector tape is applied to aft locations
to be visible in engine-forward mode.
Only amber tape is allowed in cab-forward
mode.

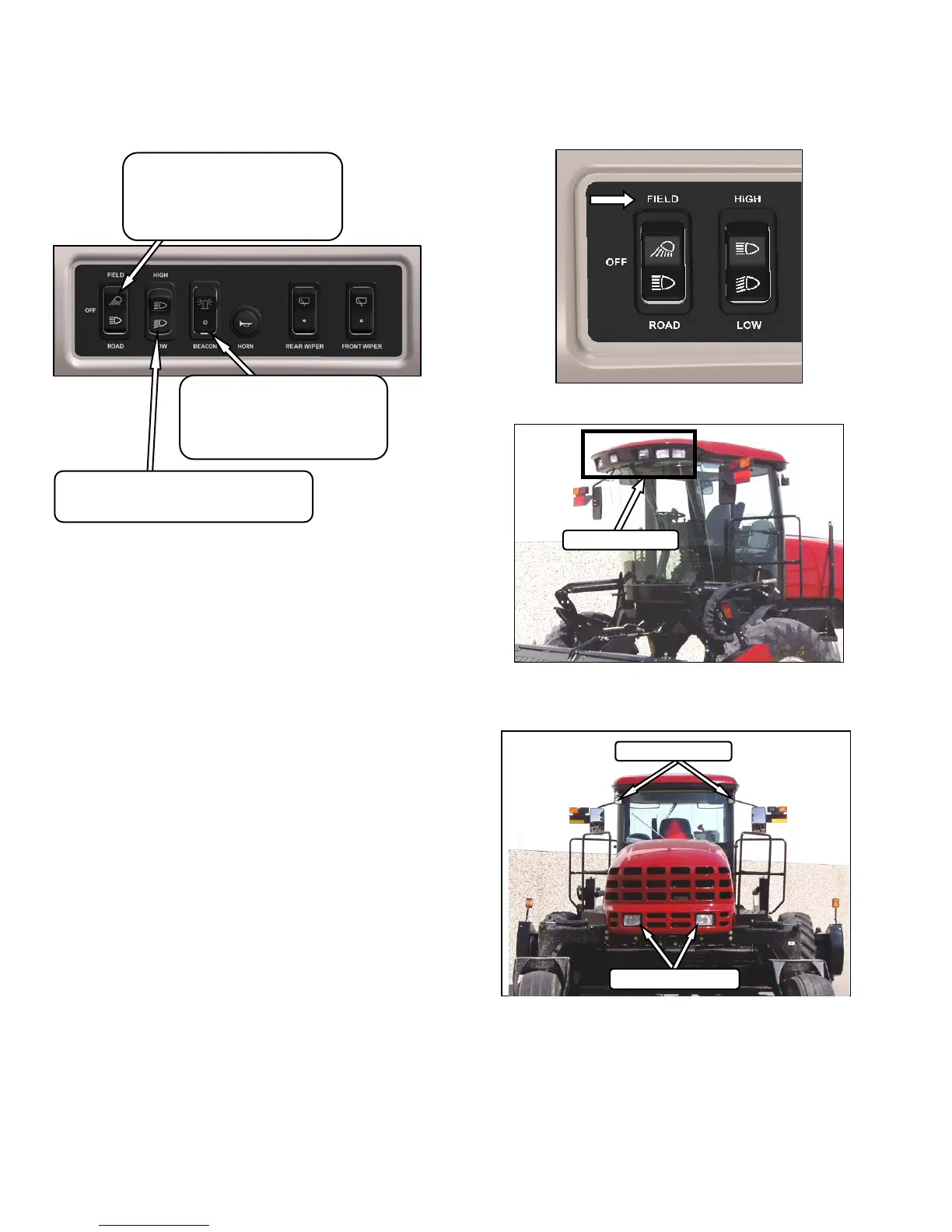

5.7.1 CAB-FORWARD LIGHTING - FIELD
FRONT - CAB FWD
FIELD LIGHTS
REAR - CAB FWD
FIELD LIGHTS
SWATH LIGHTS
HIGH / LOW LIGHTS
Controls High / Low Beam For Road Lights
High - Low
LIGHTS
Controls field and transport lights
Field
Off
Road
BEACON
Controls Beacons On Cab
Standard for Export.
Optional for N.A.
On - Off
