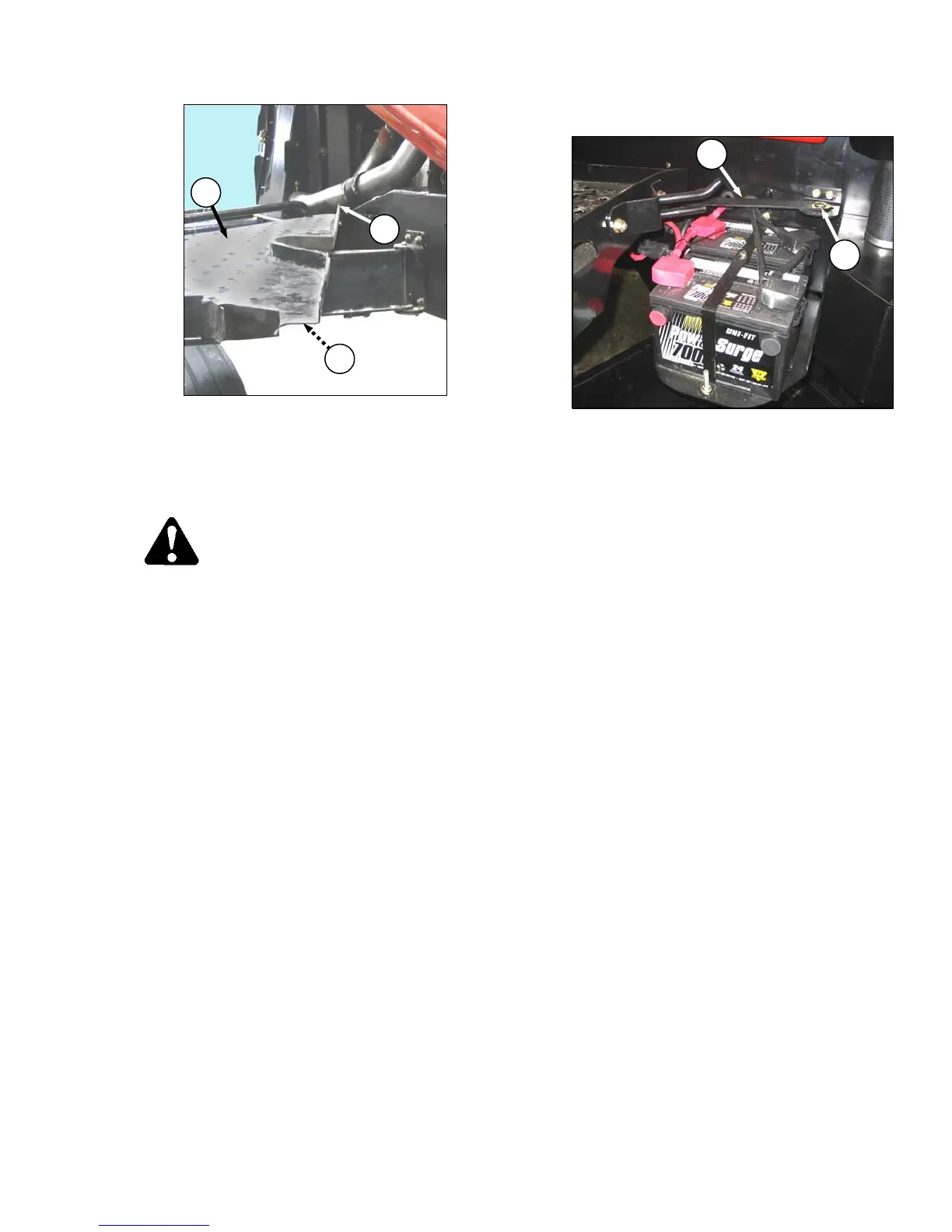

4. At the same time, pull front (cab-forward) end
of platform away from frame, while moving it
towards the walking beam. Aft corner (E) of
platform should project slightly into engine bay
when optimum opening is reached.
CAUTION
Do not stand on the platform in the unlocked
position. It is unstable and may result in a
fall.
5. Swing link (D) under platform.
b. Close platform as follows:
1. Swing link (D) out from under platform all the
way forward.
2. Move platform front (cab-forward) end
inboard, while moving it away from the
walking beam.
3. Position link (D) on bracket, and install bolt
and nut (C). Do not fully tighten.
4. Move platform to closed position, ensuring it is
locked.
5. Close engine compartment hood.
D
E
B
D
C
