WINDROWER OPERATION
Form 169017 / 169087 / 169095 72 Revision C
n. Activate HEADER DOWN switch in cab to lower
lift arms until the lift arm “floats” up away from the
linkage at the rear of the lift arm.

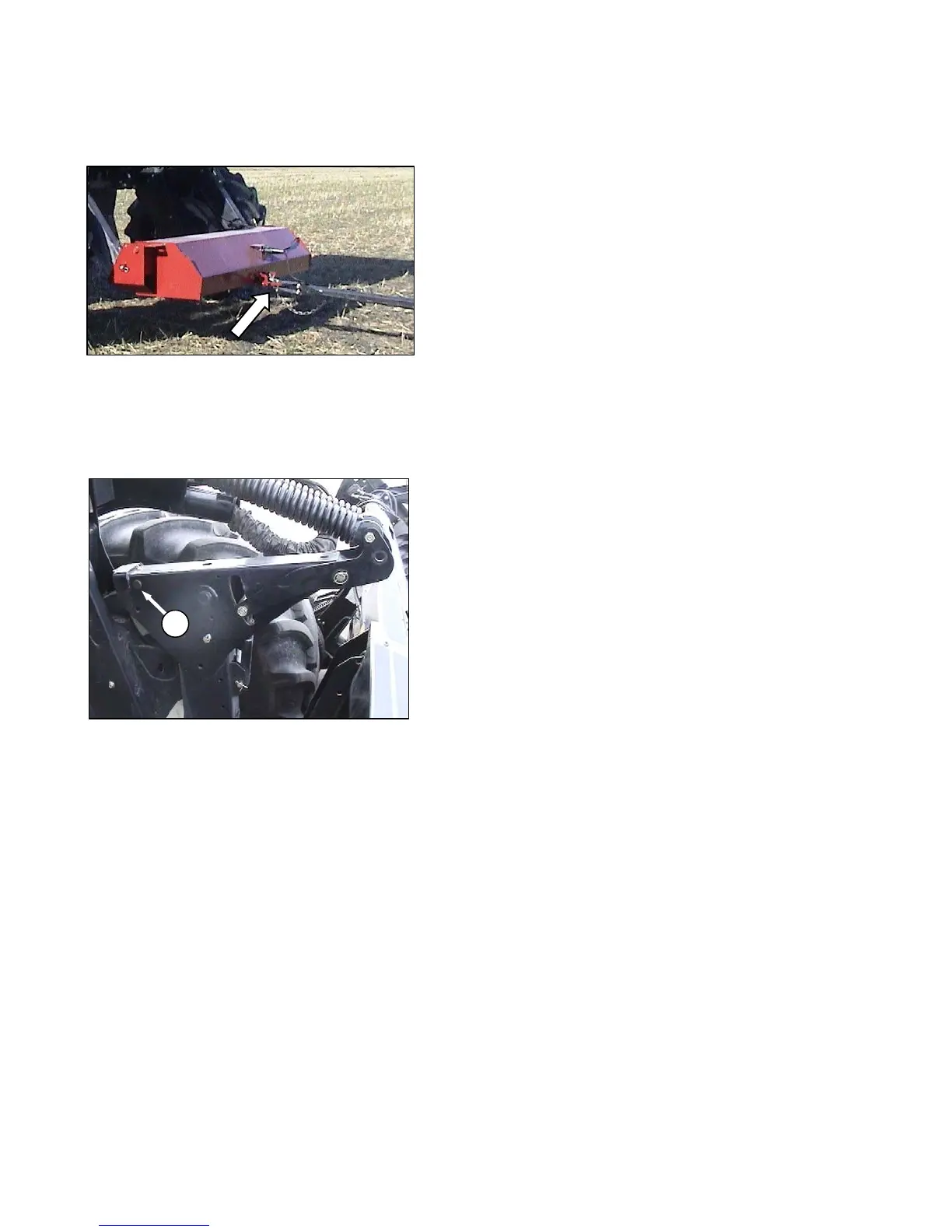

o. Attach slow speed transport hitch to the weight
box tongue with drawbar pin (secure using lynch
pin). Attach safety chain.
p. Connect hitch harness to electrical socket at front
of weight box.
q. Remove the temporary lift pins (A) (should be
loose in lift arm), and place into storage holes on
weight box.
A
