j. Disconnect center-link as follows:

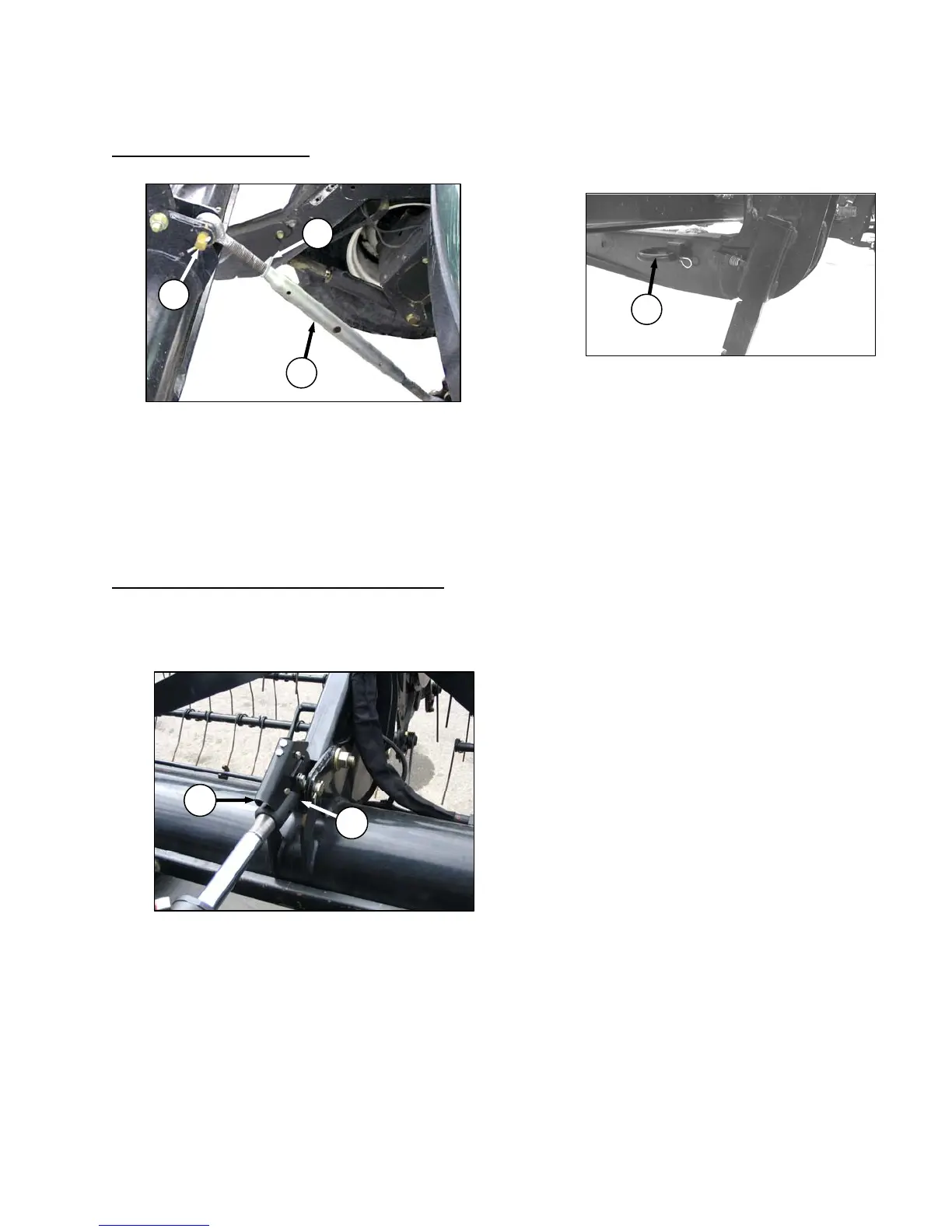

MECHANICAL LINK - M150
1. Loosen nut (J), and rotate barrel (K), to relieve
load on link.
2. Remove cotter pin on pin (L), and remove pin
to disconnect from windrower. Reinstall pin in
header.
3. Tighten nut (J) against barrel. A slight tap
with a hammer is sufficient.
HYDRAULIC LINK - M200 STD, M150 OPTION
1. Start engine, and activate header tilt cylinder
switch on GSL to release load on center-link
cylinder.
2. Disconnect center-link by lifting release (M),
and lift hook (N) off header.
NOTE
If optional center-link self-alignment kit is
installed, lift release (M) and then operate
the link lift cylinder with REEL UP switch on
GSL to disengage the center-link from the
header.
k. Slowly back windrower away from header.
NOTE
If hay conditioner is installed, watch
clearances on both sides.
l. Reinstall pin (A) into header leg, and secure with
hairpin.
