HEADER OPERATION - D SERIES
Form 169017 / 169087 / 169095 95 Revision C
NOTE
DISPLAY will flash ##.## MIN REEL (MPH
or KPH) to prompt the operator to change
the minimum set point, or increase ground
speed if Ground Speed Plus Index is less
than the Minimum Reel Speed Set Point.
b. Set Reel Index as follows while driving windrower
at normal operating speed and greater than
minimum reel speed.
NOTE
See example in next column.
Example:
Windrower is operating at 8 mph with Header
Index “on” and set at 5.5. Display shows;
13.5 5.5 REEL IND
where 13.5 (8+5.5) is the reel speed in mph, and
5.5 is the header index setting.
Windrower speed drops to 7.5 mph at same
Header Index setting. Display shows;
13.0 5.5 REEL IND
where 13.0 (7.5+5.5) is the reel speed in mph,
and 5.5 is the header index setting.
Windrower is operating at 8 mph with Header
Index “on” and set at 1.0. Display shows;
9.0 1.0 REEL IND
where 9.0 (8+1.0) is the reel speed in mph, and
1.0 is the header index setting.

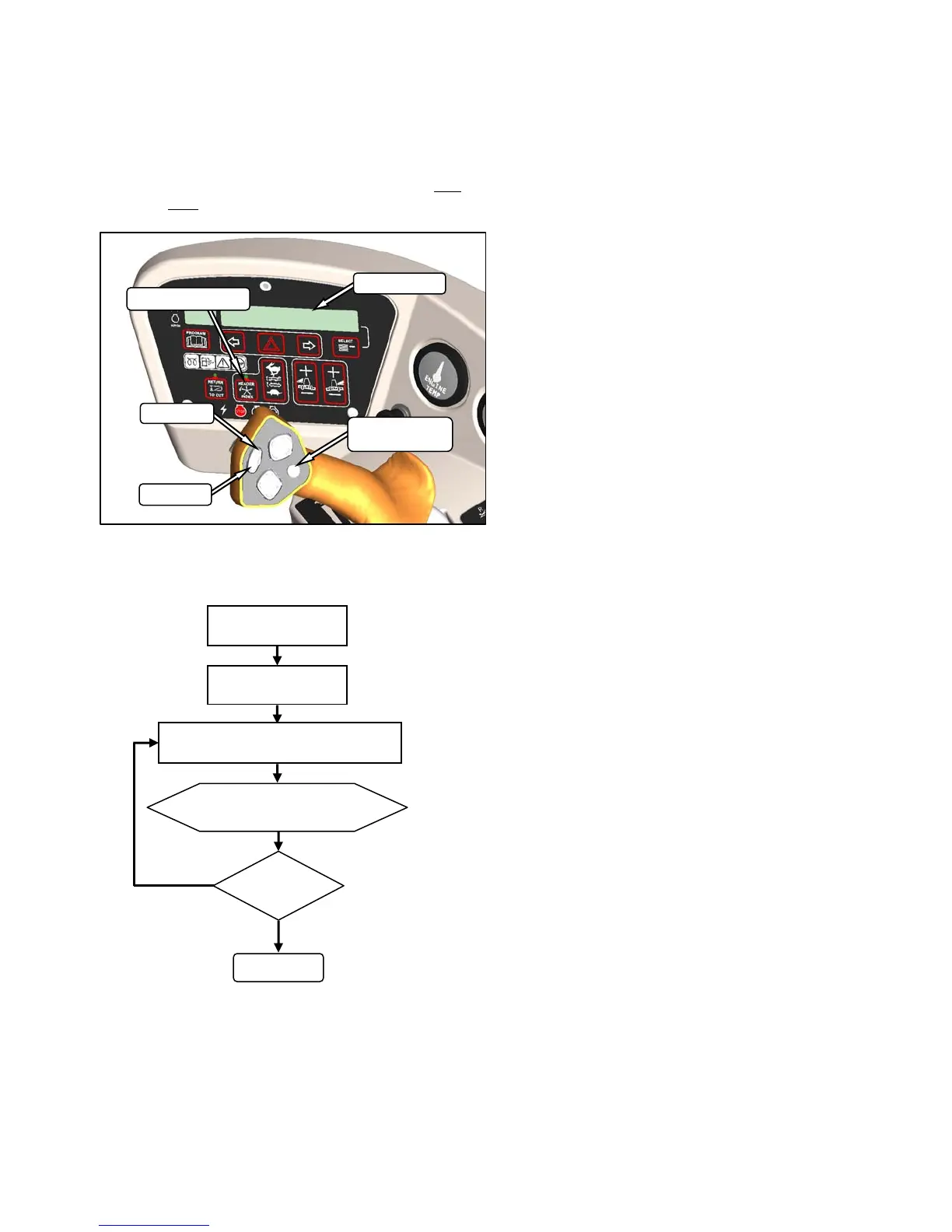

DISPLAY
SELECTOR
DISPLAY
HEADER INDEX
FAST
SLOW
##.## = MPH or KPH
##.# = 0.0 to 9.9
ENGAGE HEADER
HEADER INDEX
SWITCH - ON
ON GSL PRESS REEL SPEED
SWITCH FAST OR SLOW
DISPLAY SHOWS
##.## ##.# REEL IND
DONE
INDEX
O.K.?
NO
YES
