THE MACKIE FIXER MACKIE DESIGNS SERVICE NEWS
Cut trace here
Solder
here

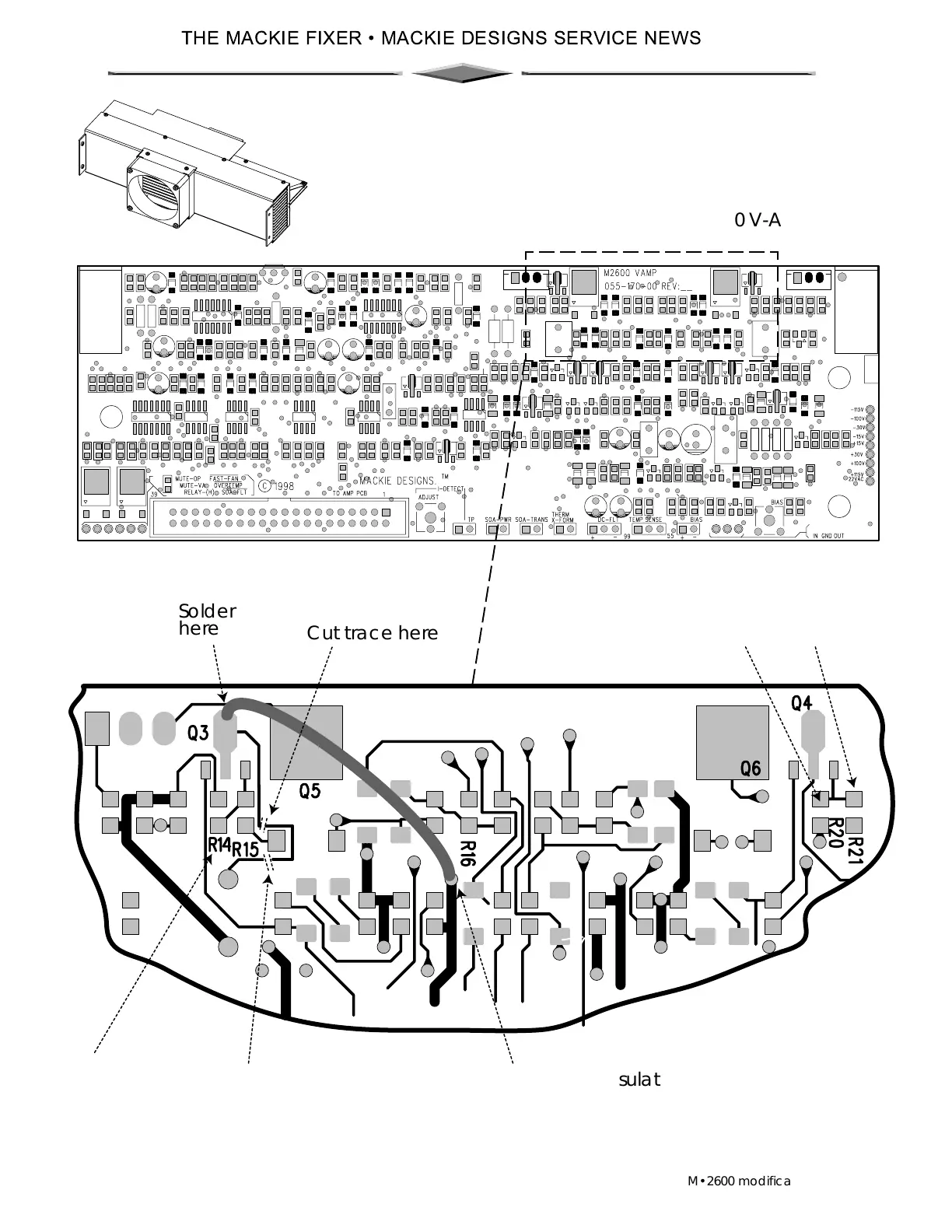

M•2600 modification SSE July 2000
M2600mod.pdf, page 2 of 2
055-170-00 V-AMP board
Solder an insulated wire here
Cut trace here
Amplifier
Subassembly
Change R14
and R15
Change R20 and R21
