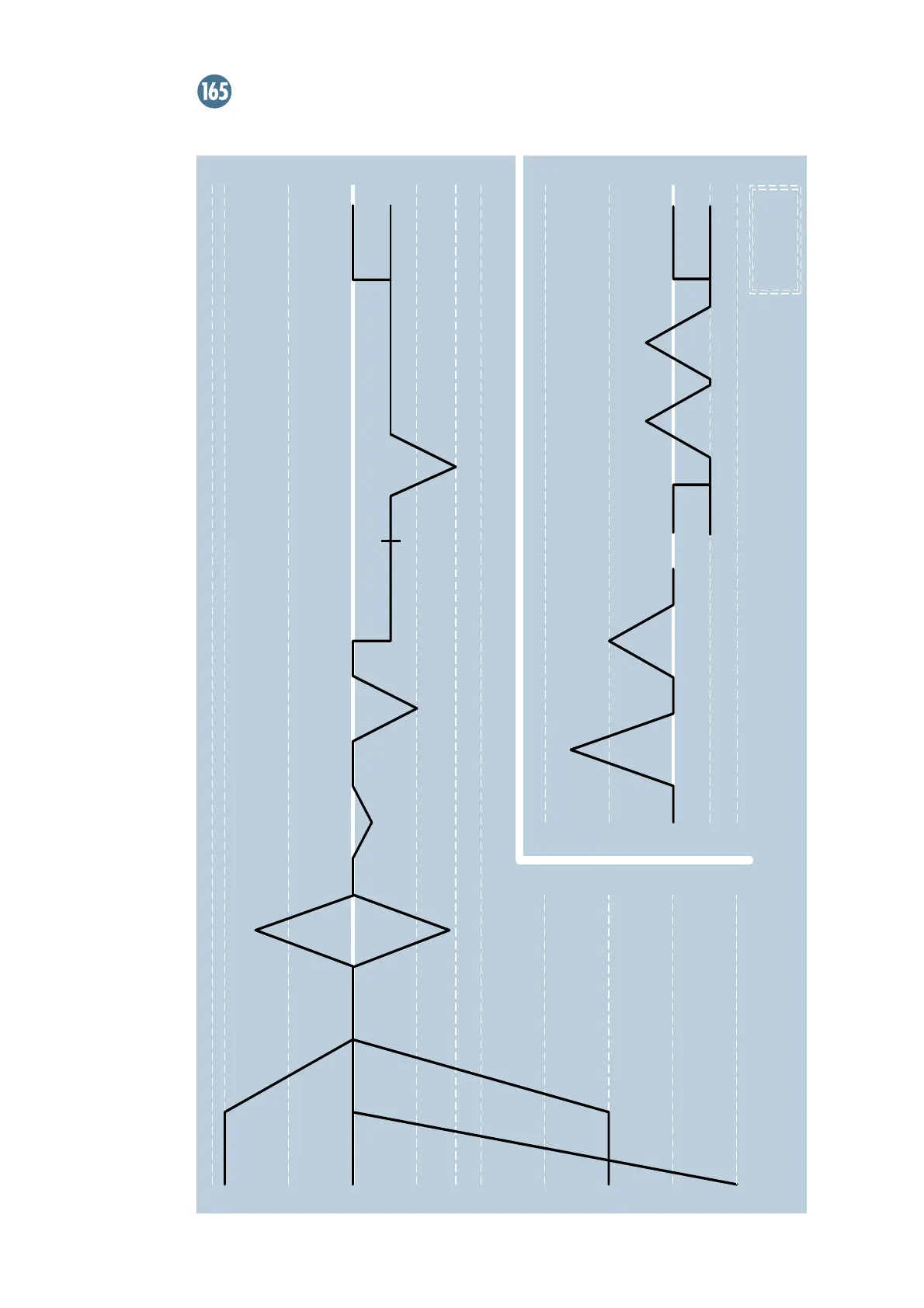

SR40•8 GAIN STRUCTURE DIAGRAM
UNBAL. IN
MIC IN GAIN 0dB TO +60dB
LINE IN GAIN –22dB to +38dB
EQ ±15dB
PAN CENTER –4dB
CHANNEL AUX SEND +15dB MAX
L/R/C MASTER
FADER
0dB MAX –10dB NOMINAL
MIX LEVEL –6dB
BALANCED OUT
0dB
–10 –20 –16 +10 +20
0dB –10 +10 +20
0dB –10 –20 –16 +10 +20 +22 –30 –40 –50 –60
0dB –10 +10 +20 +22
UNBALANCED OUT –6dB
INSERT @ –6dB
AUX SEND MASTER +10dB MAX
AUX OUT 0dB
MATRIX MIX
MATRIX EXT. IN
+10dB MAX 0dB NOMINAL
MATRIX MASTER +10dB MAX 0dB NOMINAL
BALANCED OUT 0dBBAL. IN UNBALANCED OUT –6dB
MACKIE DESIGNS SR40•8/SR56•8 GAIN DIAGRAM
40GD0811JG/0697DF
CHANNEL FADER 0dB MAX -10dB NOMINAL
INSERT @ 0dB
(CLIP, EXCEPT BALANCED OUT CLIPS AT =28DBu)
