Macnaught MX Series - Flowmeter Dimensions MX06-MX50

Page 26 of 31
FLANGE TYPES: ANSI flanges 150 # and DIN PN 16 flanges are raised faced (RF) while JIS 10k flanges are flat
faced (FF) by default. Contact Macnaught if a different configuration is required.

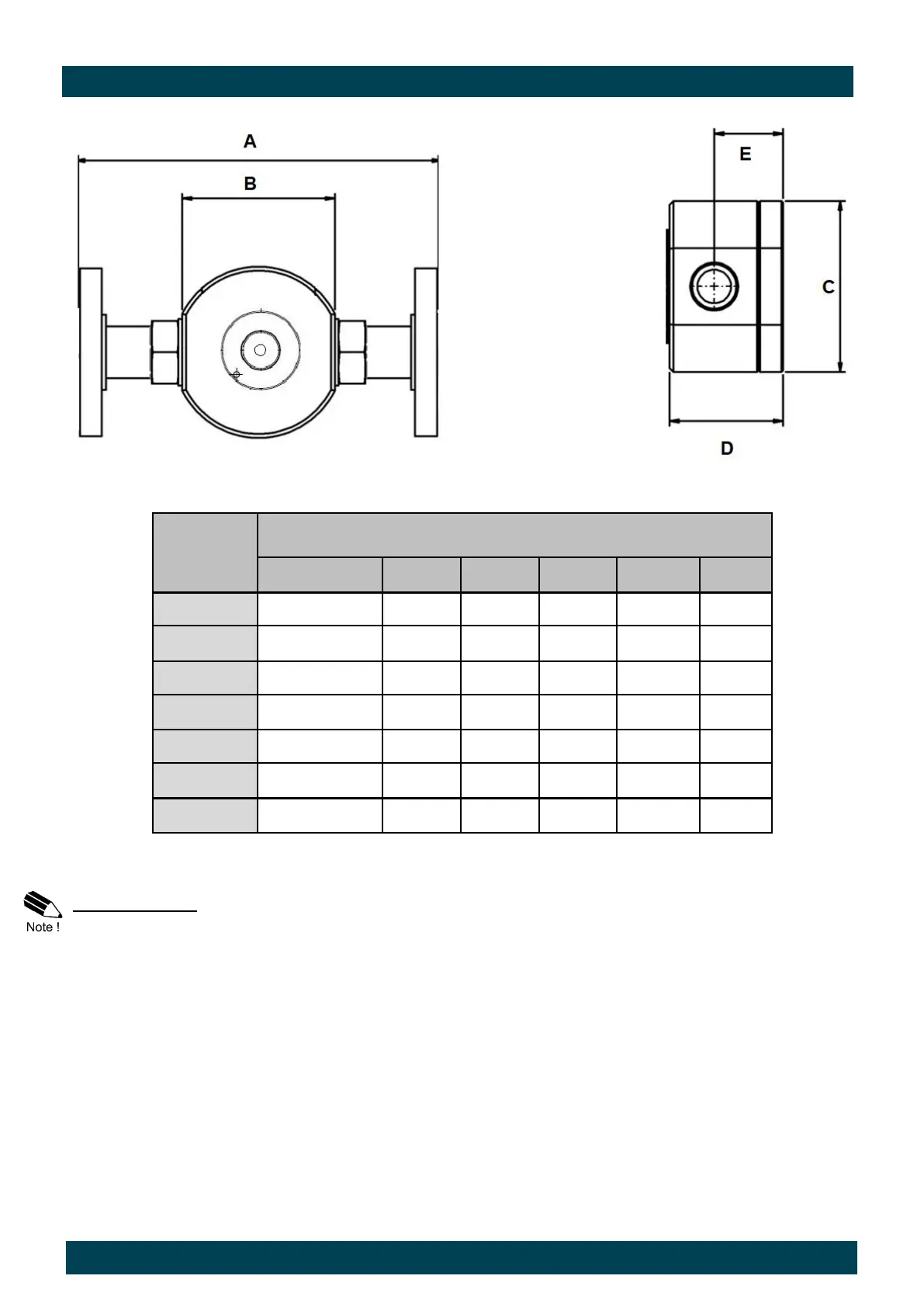

FLOWMETER DIMENSIONS MX06-MX50
Model
METER and FLANGE DIMENSIONS
Port Size A B C D E
MX06 1/4” - 71 74 42 25
MX09 1/4” - 71 74 42 25
MX12 1/2” - 81 87 49 28
MX19 3/4” - 100 112 62 37
MX25 1” 240 100 112 75 45
MX40
1 1/2”
240 120 137 103 61
MX50 2” 264 140 163 124 72
