Macnaught MX Series - Flowmeter Dimensions MX75

Page 27 of 31

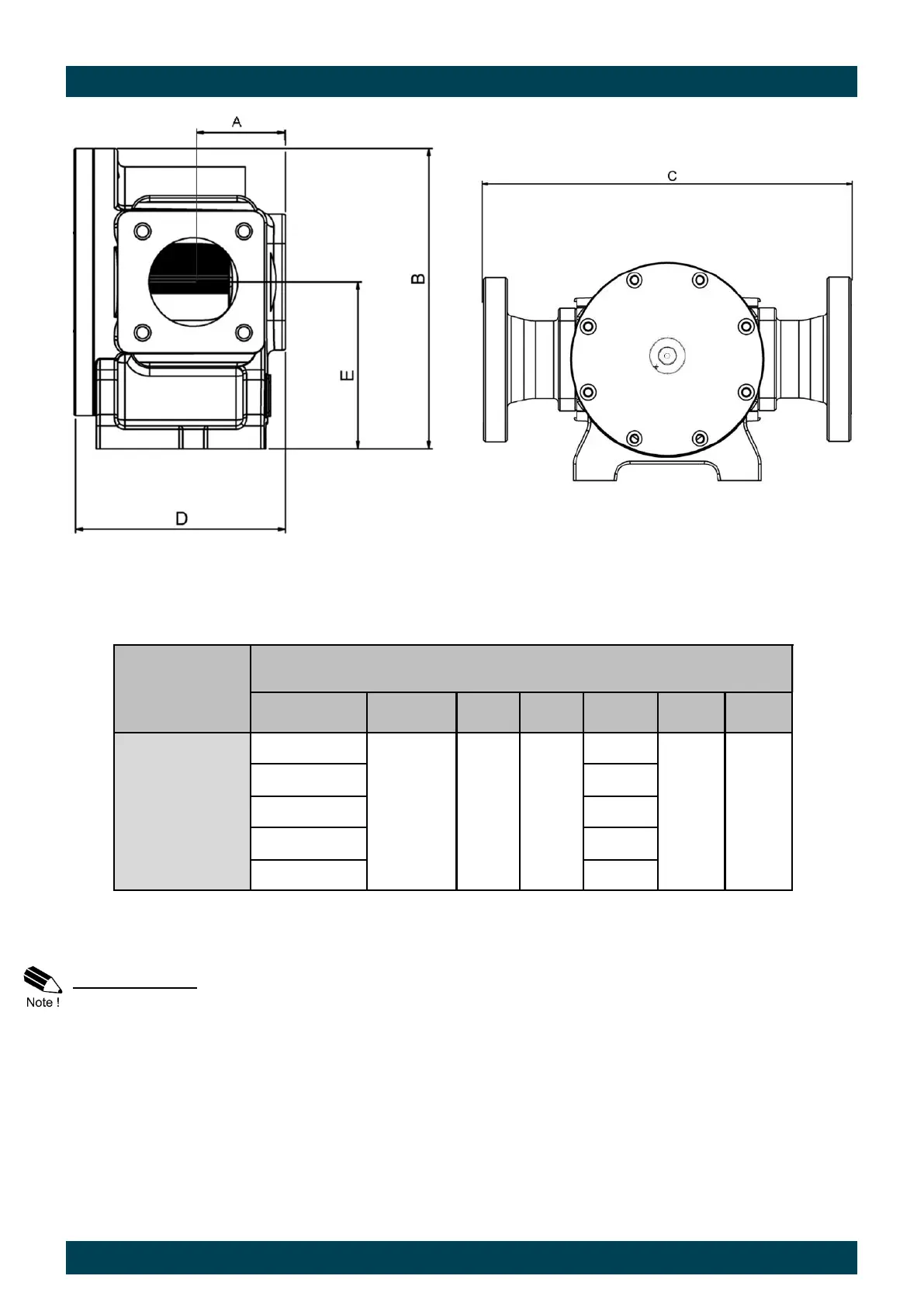

FLOWMETER DIMENSIONS MX75
METER and FLANGE DIMENSIONS
Model
FLANGE
TYPE
PORT
SIZE
A B C D E
MX75
Aluminium
ANSI
3”
78
254
436
179 141
DIN 436
JIS 436
Rp 302
NPT 302
FLANGE TYPES: ANSI flanges 150 # and DIN PN 16 flanges are raised faced (RF) while JIS 10k flanges are flat
faced (FF) by default. Contact Macnaught if a different configuration is required.
