Use the following procedure to route the
connecting cable:
1. Route the connecting cable in the direction of
the cable grommet, away from the machine.
➢ For support, use the Velcro fastener on
the hose connector.
2. Always keep the connecting cable as far away
as possible from the tool.
✓ Connecting cable routed.

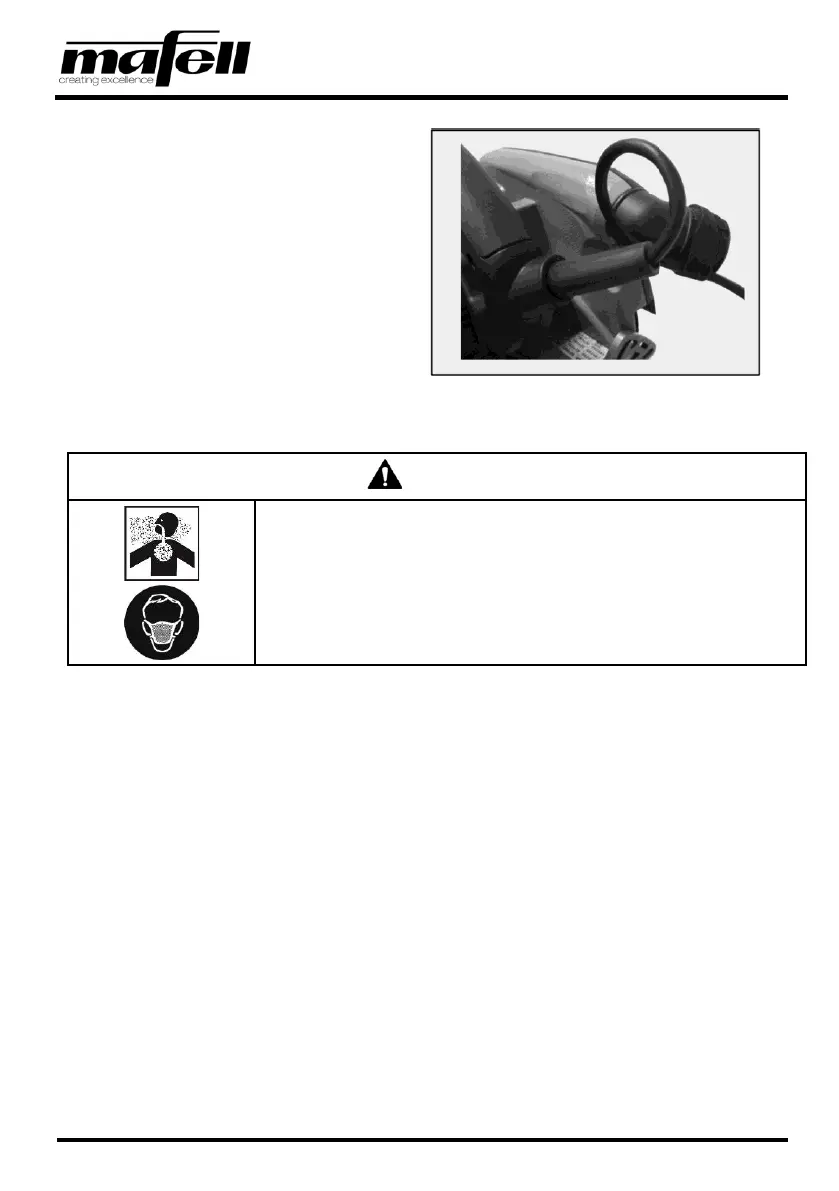

Fig. 6: Routing the connecting cable
Health hazards from wood dust
The dusts produced during work can be inhaled and can cause health damage.
➢ Harmful dust must be extracted with a HEPA 13 dust extractor.
➢ Wear a dust mask during work.
For all work that produces a significant amount of dust, connect the machine to a suitable external extraction
device. The air velocity must be at least 20 m/s [65 ft/sec].
The inner diameter of the hose connector is 35 mm [1.4 in].
