Mafell MT55cc - Scope of Delivery; Adjustment Elements

MT55cc
6
01/2022

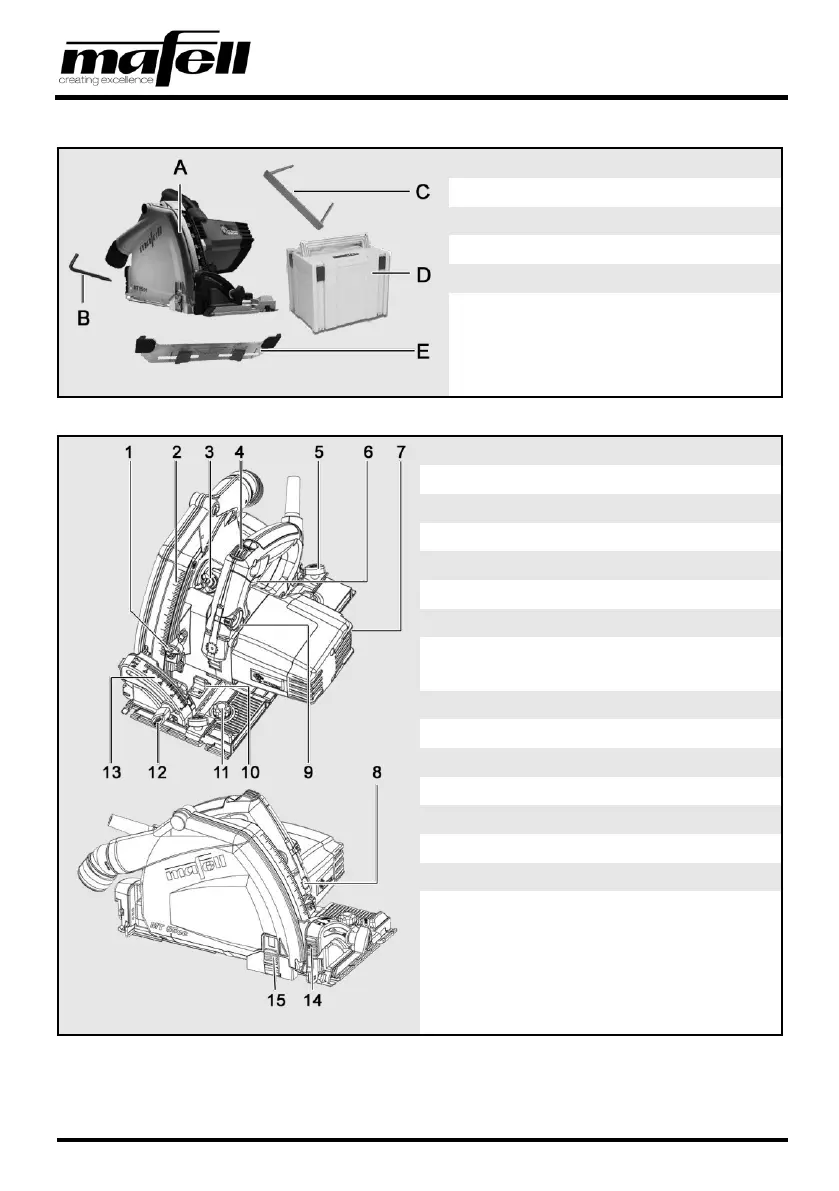

2.2 Scope of delivery
Fig. 1: Scope of delivery
Components
A
Plunge cut saw
B
Allen key in a holder on the machine
C
Parallel guide fence
D
Transport box
E
Position indicator
2.3 Adjustment elements
Fig. 2: Adjustment elements
Adjustment elements on the machine
1
Pointer for cutting depth
2
Cutting depth scale
3
Notch for pre-scoring
4
Switch-on lock
5
Wing screws
6
Operating lever
7
Saw blade speed setting wheel
(rear of motor)
8
Locking lever
9
Pushbutton
10
Swivel slider
11
Setting wheels
12
Tilting segment wing screw
13
Tilting segment scale
14
Swiveling guide fence
15
Slider
