5.5 Cutting depth setting
The cutting depth can be set continuously in a range between 0 and 57 mm [0 to 2.24 in].
Use the following procedure to set the cutting
depth:
1. Rotate the pointer (1) depending on whether
or not you are working with a guide rail
(optional accessory).
➢ Top position = with guide rail
➢ Bottom position = without guide rail
The cutting depth is reduced by 6 mm [0.24 in]
when a guide rail is used.

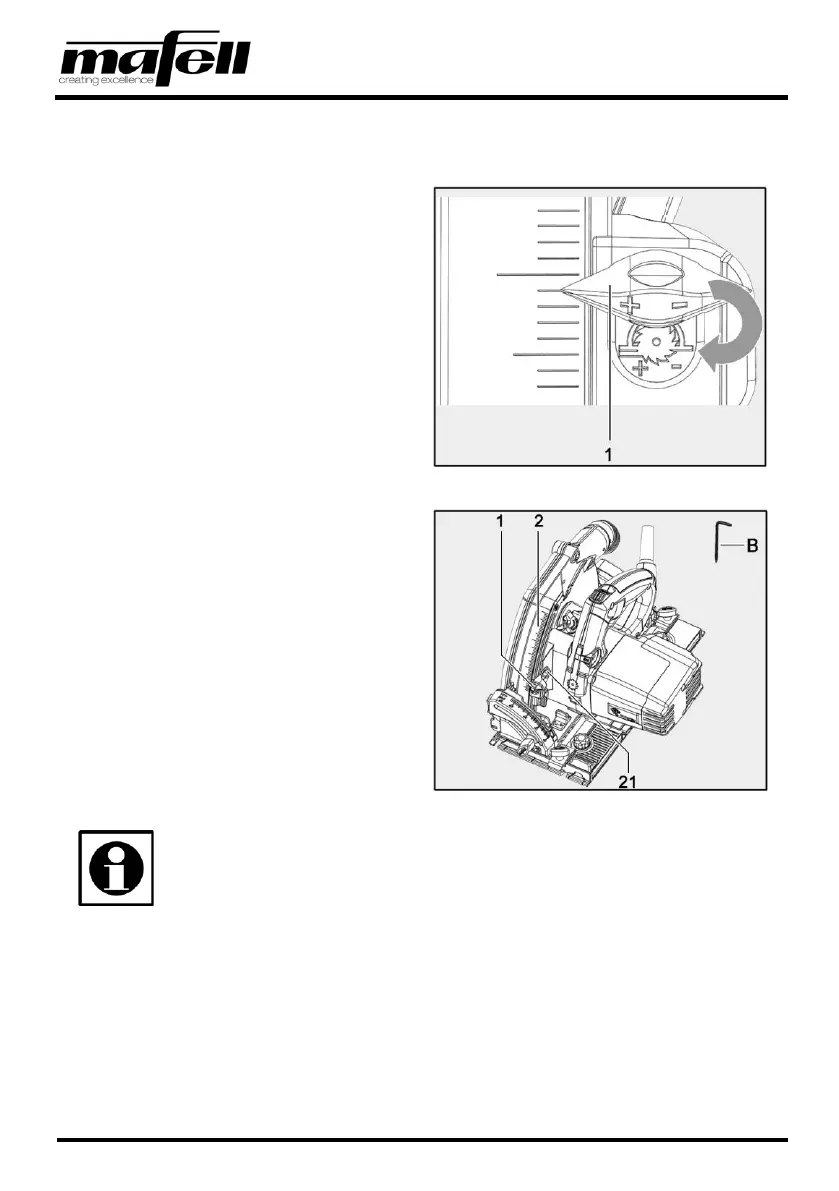

Fig. 15: Cutting depth pointer position
2. Use the pointer (1) to set the cutting depth.
➢ The cutting depth is indicated on the
scale (2) on the cover. The scale has a
1-mm graduation.
➢ To readjust the cutting depth setting, you
can use the Allen key (B) to turn the
fillister head screw (21). One revolution
corresponds to a cutting depth change of
1 mm [0.04 in].
✓ The cutting depth is set.
Fig. 16: Setting the cutting depth
For separating cuts, always set the
cutting depth to approx. 2 ... 5 mm
[0.08 ... 0.2 in] more than the
material thickness you want to cut.
