Setting Up the Base
The installation site should offer the best possible GPS recep-
tion conditions. The antenna should have a clear view of the
sky in all directions. There should be no, or a minimum of sat-
ellite obstructions in the vicinity.

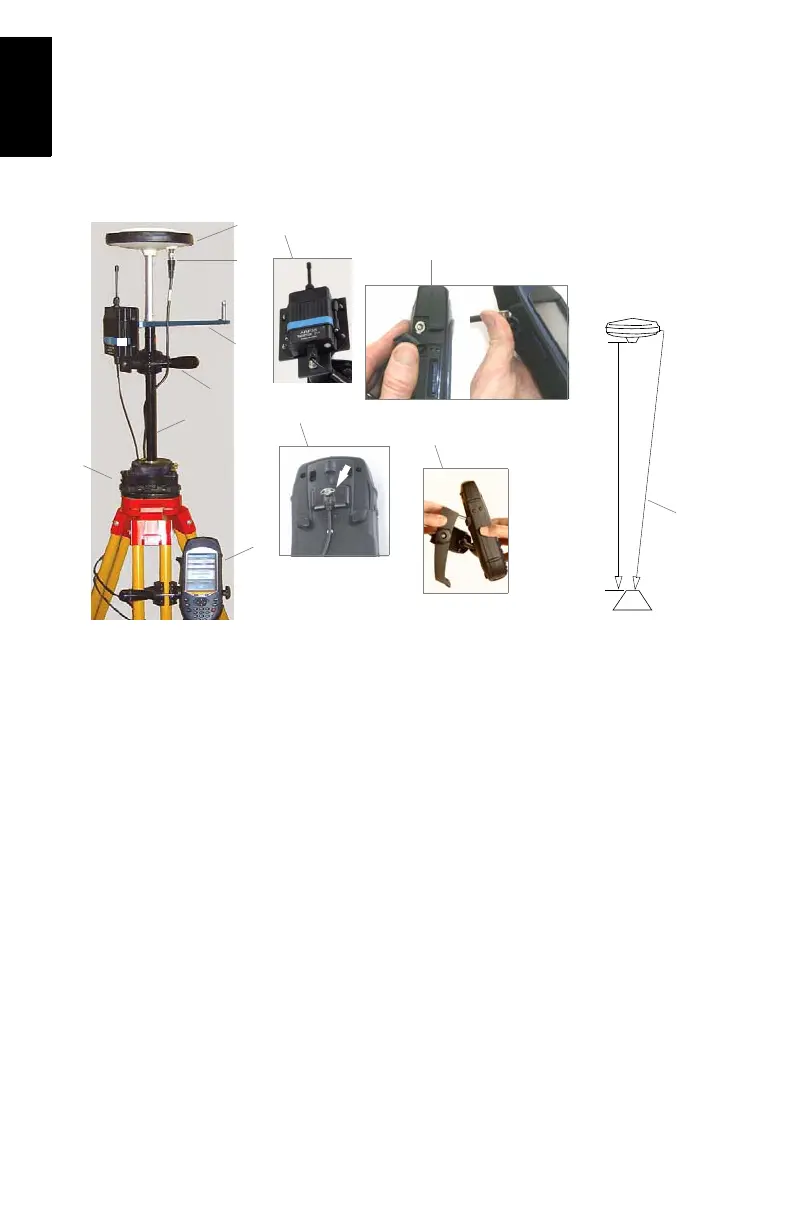

1. Set up the tripod / tribrach combination over the point.
2. Screw the RTK vertical antenna extension into the tri-
brach.
3. Insert the kinematic bar on top of the RTK vertical
antenna extension.
4. Attach the GNSS antenna on top of the kinematic bar.
5. Mount the license-free radio onto its bracket using the
screws, nuts and washers provided.
1.
10.
5.
8.
12.
H SlantH Vertical
6.
5.
2.
3.
4.
7.
11.
9.
