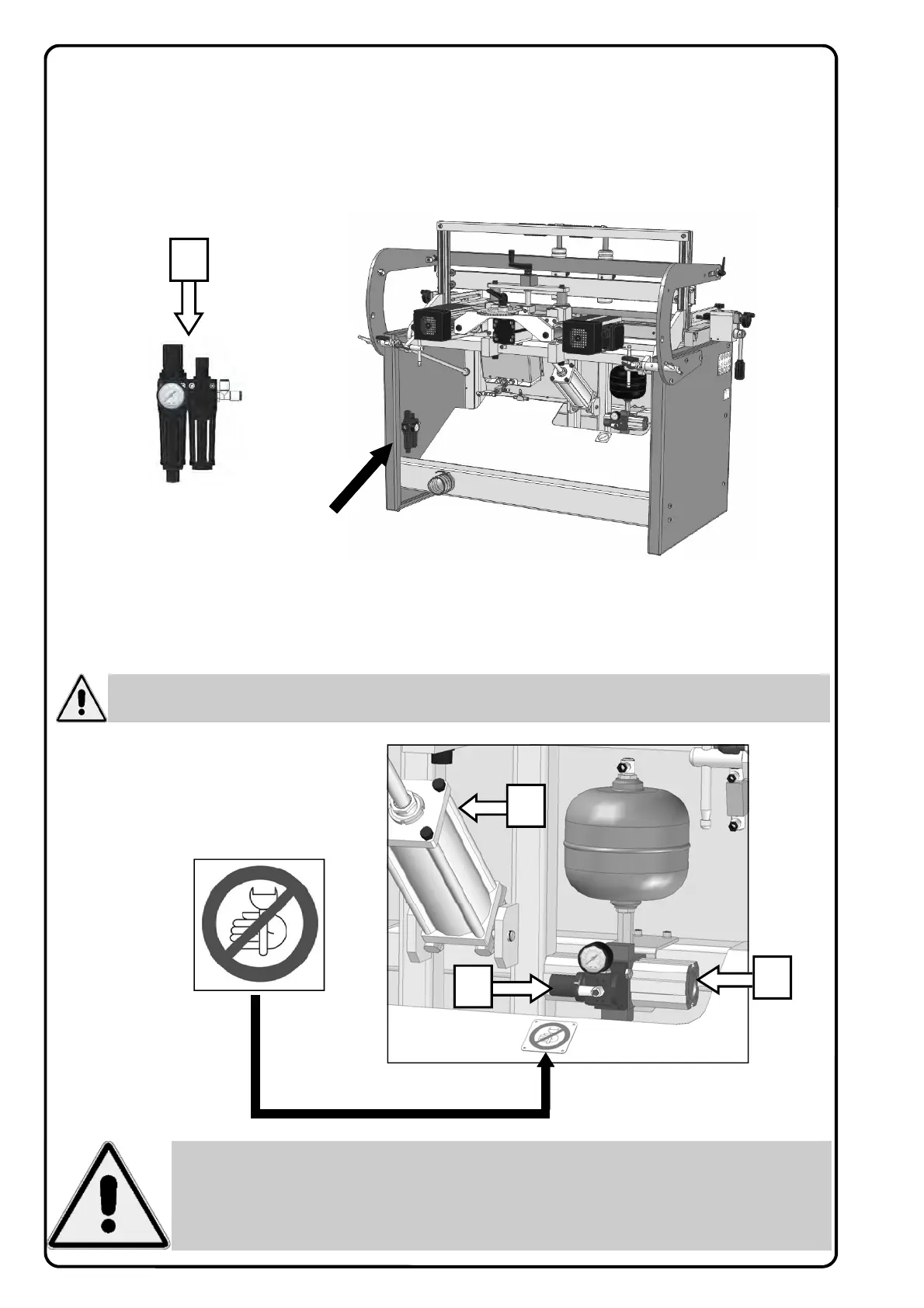

The boring machine 35 is equipped with a pressure booster (2).
This component gives a plus line pressure to the pneumatic cylinder (3) for head tipping.
The inlet pressure is set up in the factory at 5,5 Bar throught the pressure regulator (4).
14.2 PNEUMATIC CONNECTION
Connect the Filter regulator unit (1) with the air line through a rubber or nylon hose with a minimum inside
diameter of 8 mm.
If the pipe length exceeds 5/6 metres it is advisable to increase the inside diameter to 10 mm, you are also
recommended to install a supply shut-off valve on the machine with manual control complete with air relief.
The Filter purifies the air from dust and humidity protecting the valves or seals in the pneumatic cylinders.
ANY ADULTERATION OR REMOVAL OF SAFETY PROTECTION DEVICES CAN CAUSE SEVERE
DAMAGE. ANY REMOVAL, EXCLUSION OR MODIFICATION OF THESE DEVICES IS STRICTLY
FORBIDDEN. YOU MUST VERIFY AND GUARANTEE THE PERFECT RUNNING OF SAFETY DE-
VICES BY MEANS OF PERIODIC CHECKS. ANY DEFECT OR PROBABLE DRAWBACK MUST BE
IMMEDIATELY RESOLVED.
1
ATTENTION: Do not act for any reason on the pressure regulator (4) to change the pressure va-
lue. Any change of this parameter is prohibited without the written approval of the manufacturer.
4
2
3
