Maggi BORING SYSTEM 35 - 15.8 45° Triangle for Frames; 15.9 Central Bar for 90° Frames

1
2
2
3
15.9 USE OF THE CENTRAL BAR FOR STRAIGHT 90° FRAMES ( OPTIONAL )
The central bar is used to join two pieces with sides at a right angle (mainly used for quickly manufacturing
straight frames).
− Fasten the central bar (3) in the special reference holes on the work table and clamp it with the lever (2).
− position the pieces to be worked along the central bar. It is now possible to start boring operations to join
frames with wooden “dowel” pegs.
The position is correct when the spindle head is at 0° and the clamp is over the piece to be bored. Proceed as
in a standard working cycle, pressing the pneumatic pedal to start machining and releasing it at the end of the
work. Repeat the procedure on both sides of the triangle to obtain two mirrored frame pieces ready to be
joined.

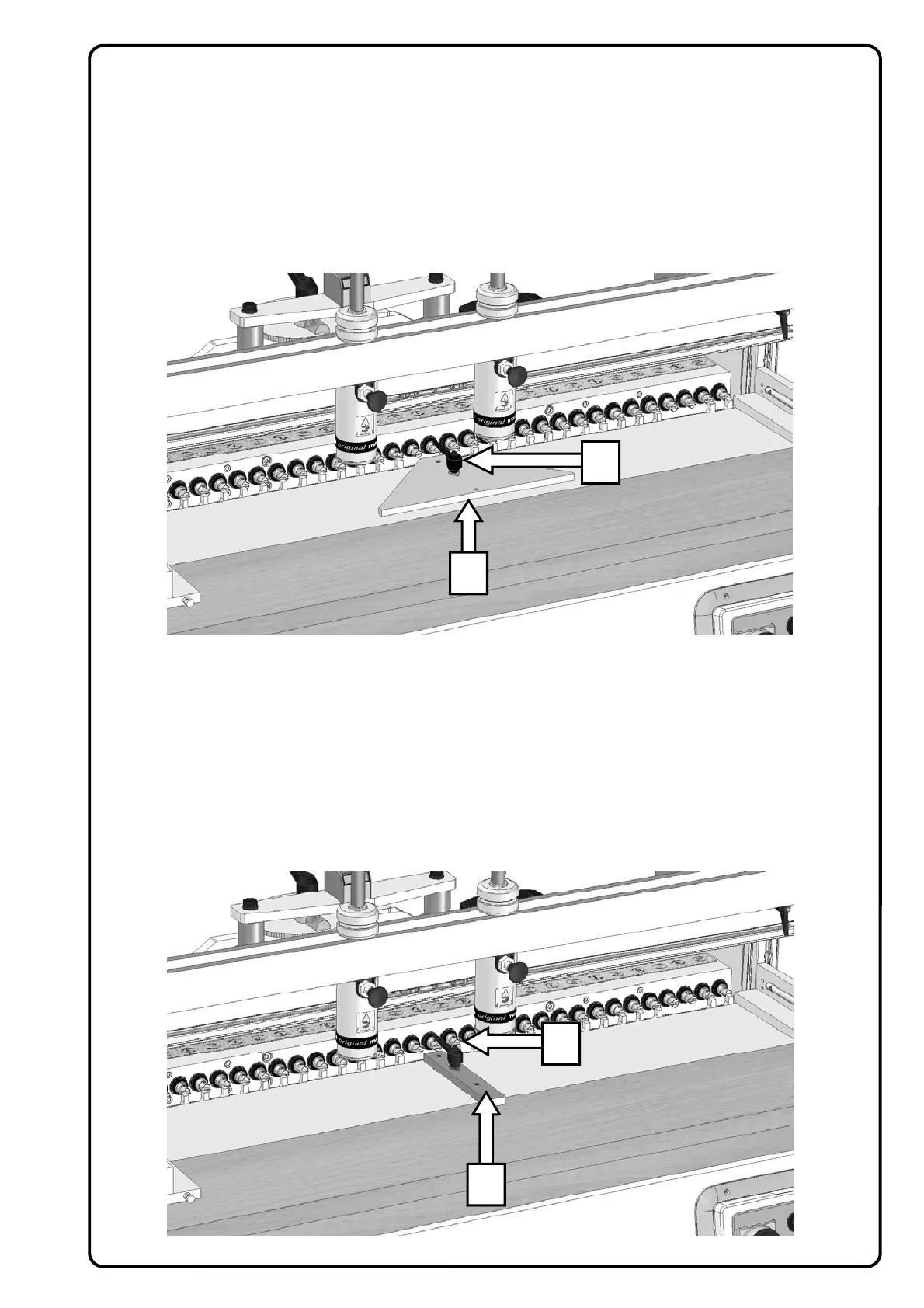

15.8 USE OF THE TRIANGLE FOR 45° FRAMES ( OPTIONAL )
The 45° triangle is particularly useful for 45°-45° jointing, mainly used for quickly manufacturing frames.
Fasten the triangle (1) on the table in the reference holes and clamp it in the centre hole using the lever (2).
This way it is possible to rest the pieces cut at 45° to be bored and coupled with the wooden “dowel” peg. The
machine spindle head must be set at 0°. When the position is correct, the clamp is over the piece to be worked;
proceed as in a standard working cycle, pressing the pneumatic pedal to start machining and releasing it at the
end of the work. Repeat the procedure on both sides of the triangle to obtain two mirrored frame pieces ready
to be joined.
