Simultaneous drilling of two side panels (drilling head

at 90°)

FRAME MATING EXAMPLE AT 0° AND AT 45°

SIMULTANEOUS MIRROR DRILLING EXAMPLES

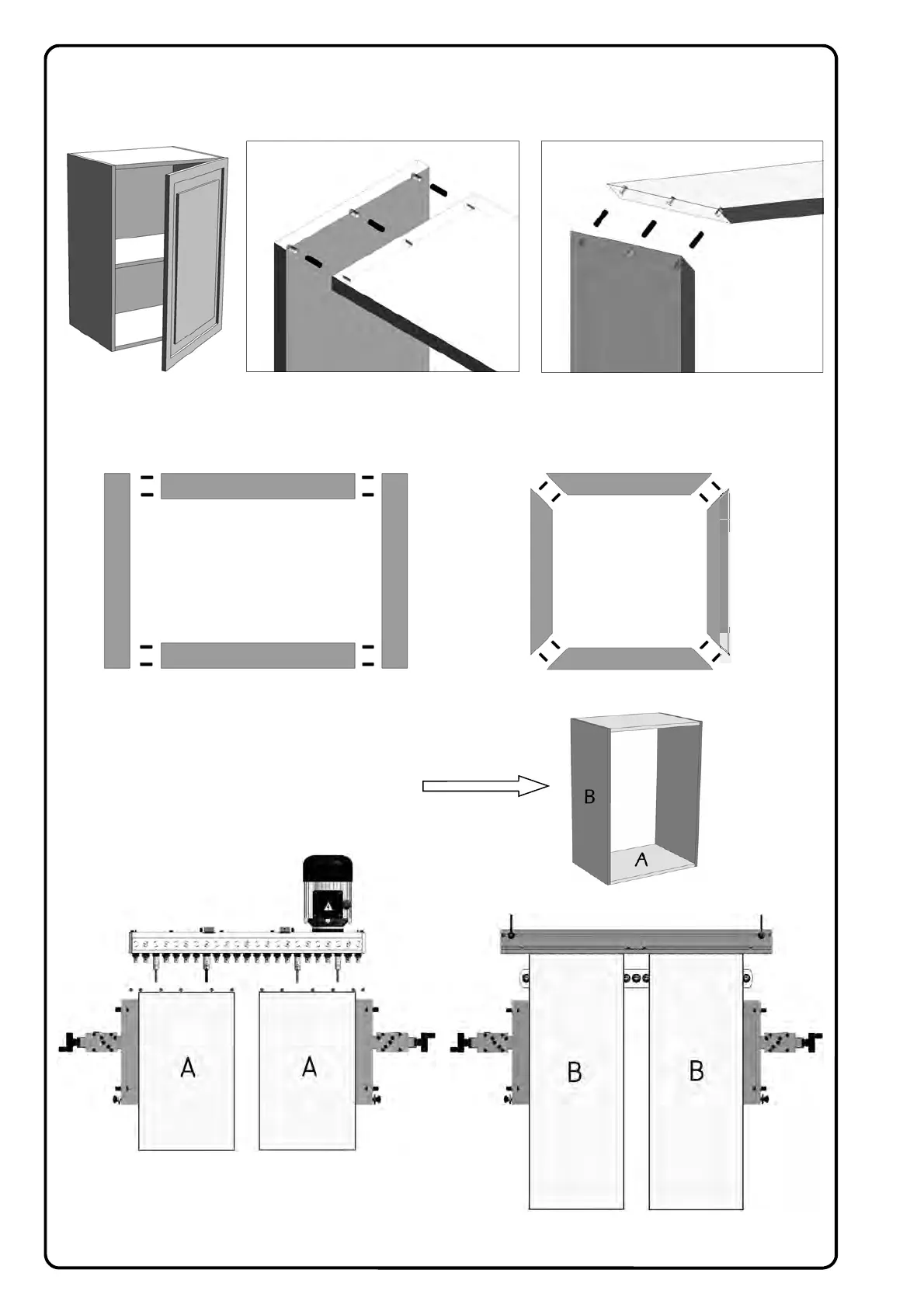

PANEL MATING EXAMPLES

16. WORKING EXAMPLES

Mating parts (at 0°) Mating parts (between 0° and 90°) Assembling parts

Simultaneous mirror drilling of two panels (drilling

head at 0°)

Reference assembling
