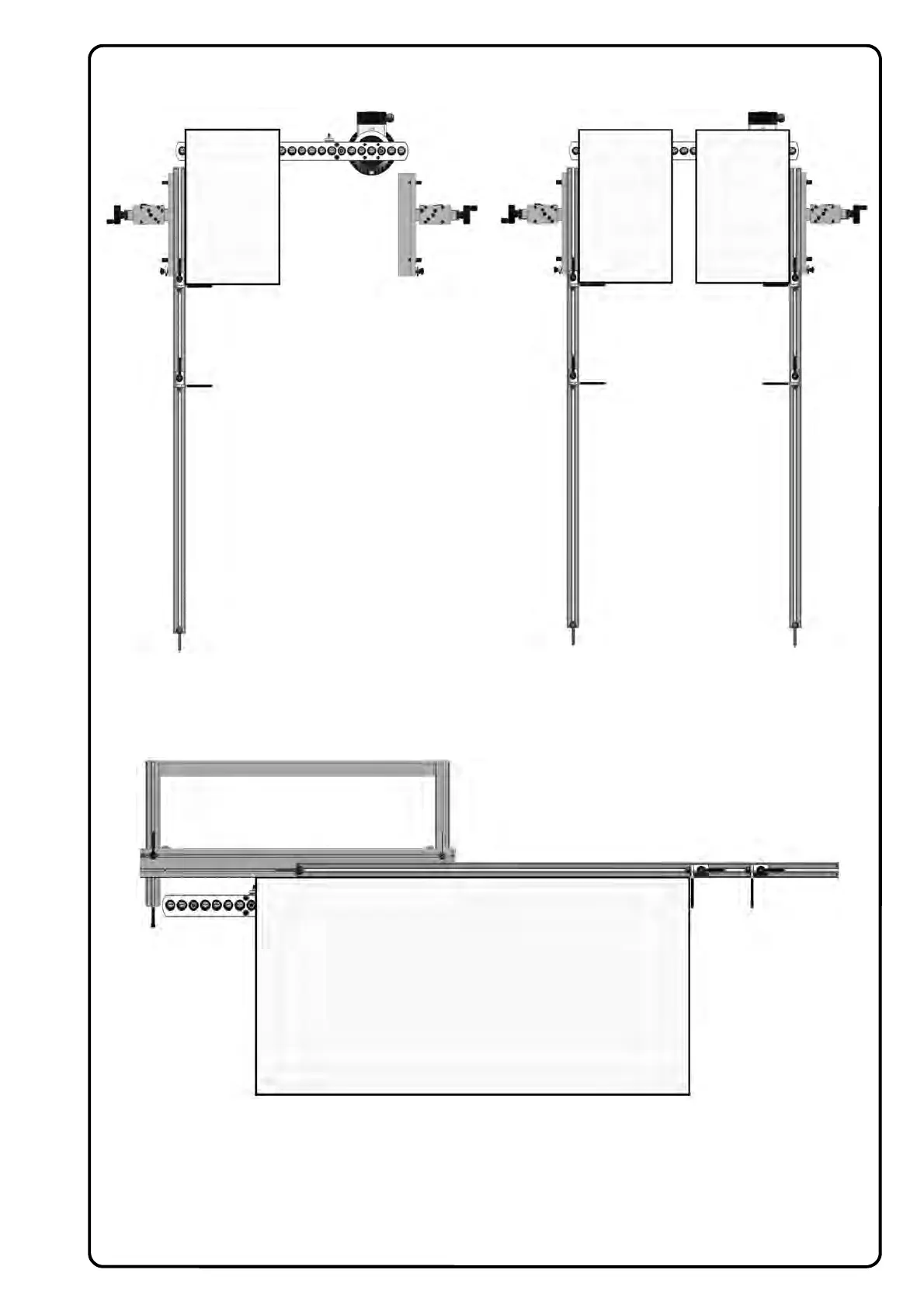

DRILLING EXAMPLES WITH REFERENCE FENCES
Transverse positioning of the fence, equipped with
reference stops, to drill transverse holes on side pan-
els for the insertion of support panels
Transverse positioning of two fences, equipped with
reference stops, to drill simultaneously transverse
holes on side panels for the insertion of support
panels
Longitudinal positioning of the 1500mm fence, equipped with two reference stops, to drill line holes on large
panels. The long fence can be used both on left and right side with high accuracy. The 1500+1500 mm long
fence, equipped with four reference stops, is particularly suitable to drill line holes on very large panels:
thanks to its dimension, it ensures a fast and complete positioning.
