EXAMPLES OF AUTOMATIC MATING OF VERTICALLY AND HORIZONTALLY DRILLED PANELS
DRILLING EXAMPLES USING FRAME FENCE

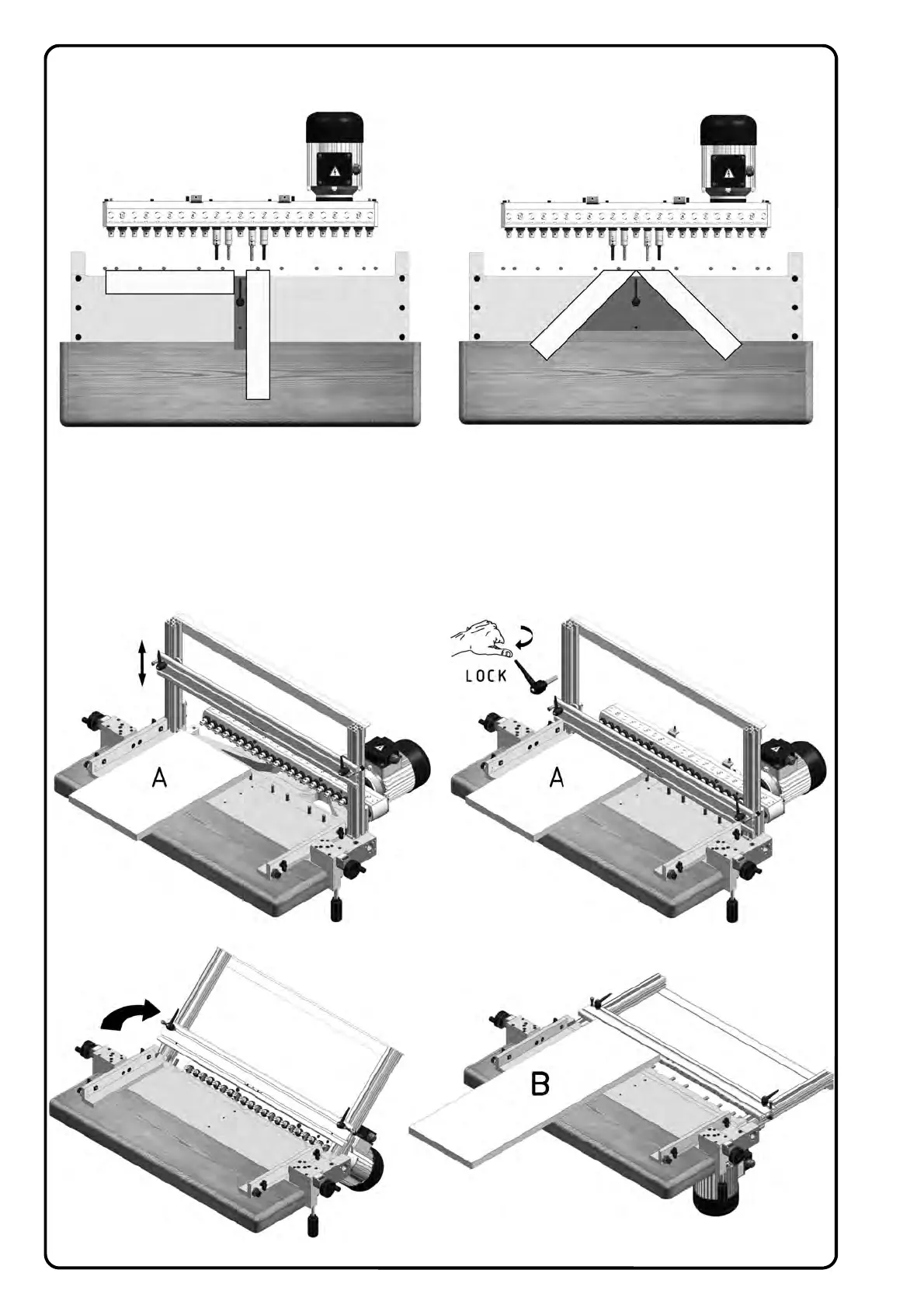

Example of the use of the standard dimension fence
to drill simultaneously two frames at 0° - 90°
PHASE 1 PHASE 2
PHASE 4 PHASE 3
Example of the use of the triangular fence to drill
simultaneously two frames to be joined at 45° - 45°
