360 NEO Card Printer – User Guide
33
Using the Cleaning Pen
Cleaning the Printhead Face using the Cleaning Pen
1
The Cleaning Pen (supplied with the Cleaning Kit (Pt. 3633-0053) is used to clean the face of the print head. The
pen contains Isopropyl Alcohol (IPA) and is very effective at removing light grease (such as finger grease etc.)
which would otherwise spoil a printed card.

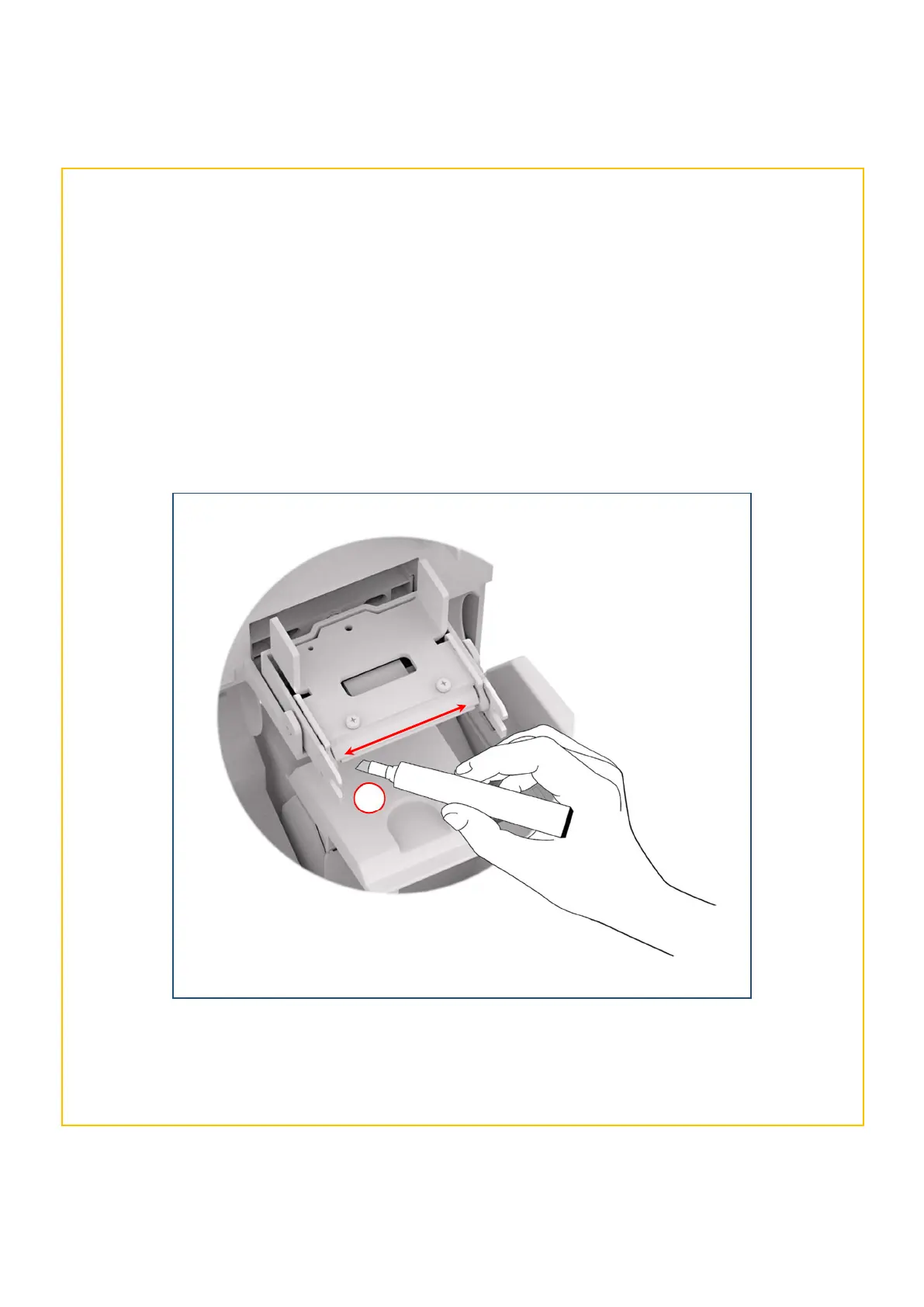

To use, simply run the tip of the pen across the print face several times as shown in the diagram below (1).
Once clean, do not touch the print face!
The tip of the cleaning pen can itself be cleaned using an old (expired) cleaning card. Gently rub the tip of the
pen against the (now dry) surface of the card to remove any contamination.
