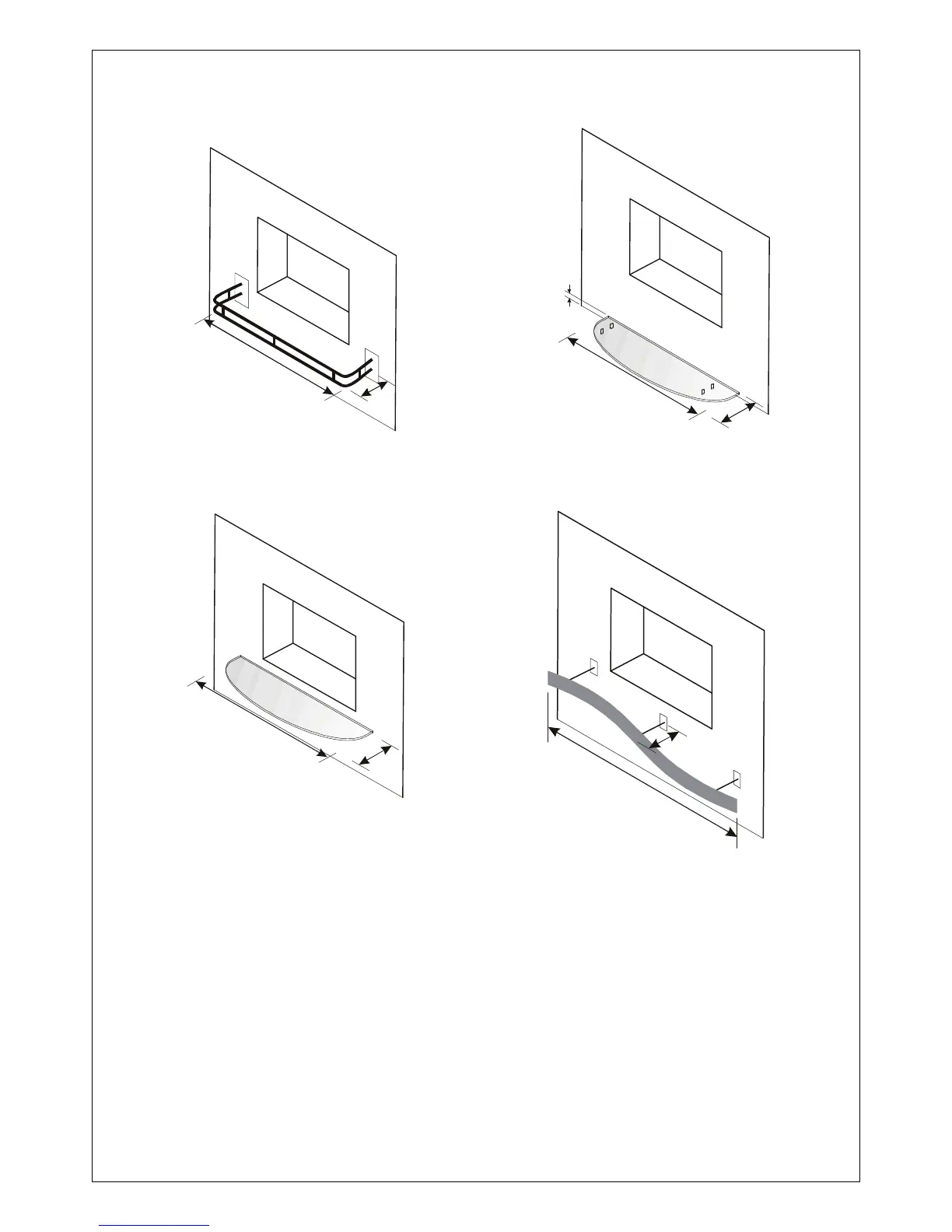

XFigure 46X, XFigure 47X, XFigure 48X and XFigure 49X show examples of how the requirements for
the physical barrier may be met.
D
W
Figure 46 – Example of physical barrier
(dimensions as stated in
XTable 4 – Protected AreaX)
D
W
Figure 47 – Example of physical barrier
(dimensions as stated in
XTable 4 – Protected AreaX)
D
W
50mm
Min
Figure 48 – Example of physical barrier
(dimensions as stated in
XTable 4 – Protected AreaX)
W
D
Figure 49– Example of physical barrier
(dimensions as stated in
XTable 4 – Protected AreaX)
